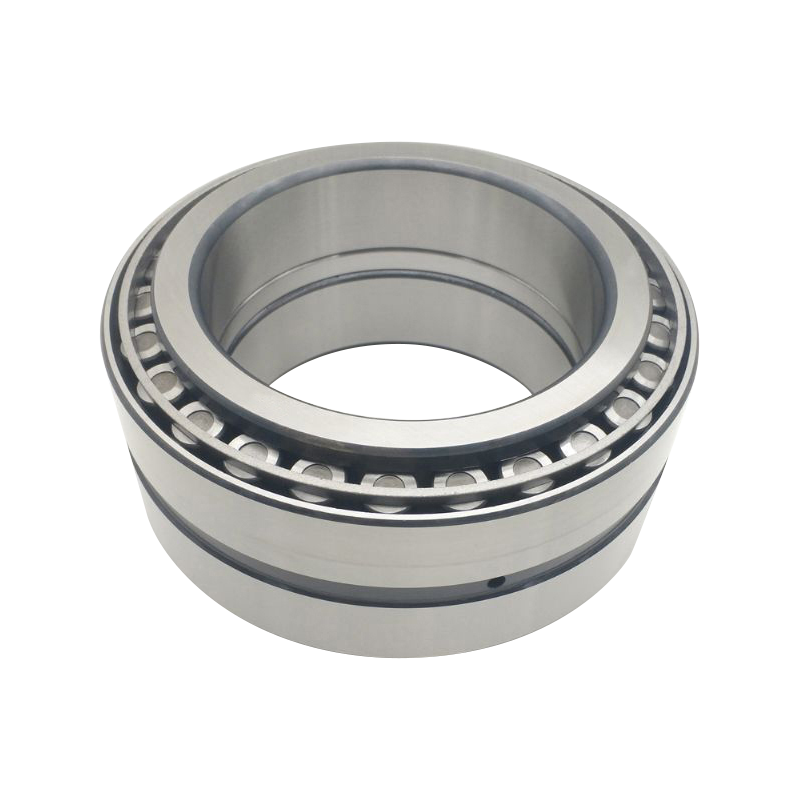

BT2B 332504/HA2 -Galas Gelek Tirus Dua Baris

Galas penggelek tirus baris dua adalah jenis galas khusus yang direka bentuk untuk menahan beban paksi jejari dan dua arah yang berat secara serentak. Mereka menyediakan penyelesaian ketegaran yang tinggi dan kapasiti besar untuk aplikasi seperti kotak gear, kilang bergolek dan mesin pengorek terowong. Berbanding dengan galas baris tunggal, ia menawarkan kekukuhan yang unggul, hayat perkhidmatan yang lebih lama dan geseran yang lebih rendah.

Hubungi Kami

PRAV：No previous product SETERUSNYA：30202 Satu Baris Tirus Roller Bearing

Penerangan
Spesifikasi
Hubungi Kami

Ciri dan Kelebihan Utama
· Kapasiti Membawa Beban Berat: Direka bentuk untuk menyokong beban paksi jejari dan dua hala yang tinggi.
· Ketegaran Tinggi (Kekakuan): Menyediakan susunan galas yang tegar, yang bermanfaat untuk aplikasi ketepatan.
·Lokasi/Kedudukan Paksi: Menempatkan aci secara paksi dalam kedua-dua arah dalam kelegaan paksi yang ditetapkan atau di bawah pramuat.
· Hayat Perkhidmatan Panjang: Menggunakan profil raceway yang dioptimumkan untuk meningkatkan pengagihan beban, mengurangkan tekanan dan meningkatkan rintangan haus.
· Mengurangkan Geseran dan Bunyi: Reka bentuk hujung roller yang dioptimumkan dan kemasan permukaan memudahkan pembentukan filem pelincir, yang mengurangkan geseran dan boleh merendahkan bunyi dan getaran.
· Kebolehpercayaan: Meningkatkan kebolehpercayaan operasi walaupun dalam keadaan yang sukar dan menawarkan sensitiviti yang lebih tinggi kepada salah jajaran.

Bidang Permohonan (Aplikasi)
·Dalam industri perlombongan, ia digunakan untuk peralatan angkat dan penggalian terowong.
·Kilang gelek juga mempunyai permintaan yang tinggi untuk galas penggelek tirus dua baris.

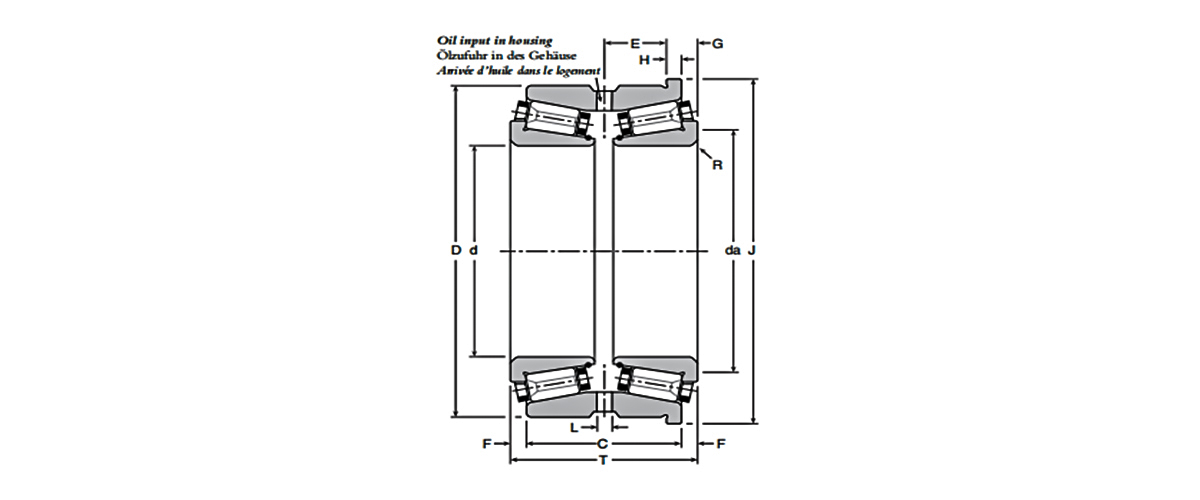

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
228.6	488.95		152.4	254	2828.7	4050			205	331945 Galas
260	480		220	284	3897	6615			210	BT2B 328130 Galas
260.35	422.275		139.7	178.592	2016	3645			86.5	Galas BT2B 328187/HA2
300.038	422.275		136.525	174.625	1959.3	4275			71.5	Galas BT2B 332504/HA2
317.5	447.675		146.05	180.975	2268.9	4860			84	BT2B 332516 A/HA1 Galas
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Galas
340	460		128	160	1976.4	4410			71	BT2B 332830 Galas
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Galas
355.6	501.65		107.95	155.575	1778.4	3825			87	Galas BT2B 332506/HA2
360	480		128	160	1989.9	4500			73	BT2B 332831 Galas
368.249	523.875		169.862	214.312	3042	6750			140	Galas BT2B 332603/HA1
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Bearing
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 A Bearing
400	540		135	170	2503.8	5670			106	Galas BT2-8143/HA1
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Galas
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Galas
431.8	571.5		146.05	192.088	2562.3	6255			127	BT2B 332237 A/HA1 Galas
431.8	571.5		111.125	155.575	1030.5	4590			100	Galas BT2B 332604/HA1
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 A Bearing
479.425	679.45		222.25	276.225	4509	11430			302	331657 Galas
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Galas
501.65	711.2		231.775	292.1	4950	12330			343	BT2B 332605 A/HA1 Galas
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Galas
558.8	736.6		177.8	225.425	3861	10440			150	331640 A Bearing
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Galas
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Bearing
609.6	820		158.75	206.375	3618	9540			292	331500 Galas
711.2	914.4		139.7	190.5	3420	8685			265	Galas BT2B 328028/HA1
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Bearing
723.9	914.4		139.7	187.325	3420	8685			250	BT2B 331554 B/HA1 Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
762	965.2		133.35	187.325	3222	8820			290	331780 A Bearing
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Galas
914.4	1066.8		101.6	139.7	2340	7200			190	Galas BT2B 332501/HA5
1160	1540		290	400	12780	34200			1900	Galas BT2B 332780/HA5
1250	1500		190	250	6633	20160			795	Galas BT2B 328339/HA4
240	480	200		220	3253.5	4950			183	BT2B 332931 Galas
300	440	105		105	968.4	1836			48.5	332168 Galas
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Galas
303.212	495.3	263.525		263.525	4427.1	8820			212	Galas BT2B 332685/HA1
305.033	560	200		200	1509.3	4770			200	332068 Galas
305.033	560	200		199.263	1509.3	4770			205	Galas BT2B 334087/HA3
305.07	500	200		200	2460.6	4680			150	332169 A Bearing
305.07	500	200		200	2460.6	4680			150	332169 AA Bearing
305.07	524	200		200	2460.6	4680			180	Galas BT2B 334110/HA3
317.5	422.275	128.588		128.588	1606.5	3735			51.5	BT2B 328699 G/HA1 Galas
320	515	160		160	2142.9	3960			160	Galas BT2-8017/HA3
333.375	469.9	166.688		166.688	2377.8	5130			92.5	BT2B 328695 A/HA1 Galas
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 A Bearing
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Bearing
346.075	488.95	174.625		174.625	2551.5	5670			113	BT2B 328410 C/HA1 Galas
346.075	488.95	95.25		104.775	607.5	2475			62	Galas BT2B 332913/HB1
360	560	160		160	2300.4	4185			140	Galas BT2-8000/HA3
380	560	200		200	2691.9	5895			165	Galas BT2-8009/HA3
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Bearing
384.175	546.1	193.675		193.675	3351.6	7470			166	Galas BT2B 328580/HA1
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Galas
385.762	514.35	152.4		152.4	2061	5400			92	Galas BT2B 328035/HA1
386	574	220		220	2670.3	5895			185	Galas BT2-8010/HA3VA901
390	546.1	141.288		141.288	2105.1	4590			102	Galas BT2B 328705/HA1
390	570	200		200	2670.3	5895			170	Galas BT2B 328896/HA3

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
390	590	200		200	2670.3	5895			200	Galas BT2B 328934/HA3
390	548	180		180	2295	5265			155	Galas BT2B 334045/HA3
400	650	240		240	3519	7335			290	332167 Galas
400	650	240		240	3519	7335			305	BT2B 332167 C/HA3 Galas
406.4	546.1	138.113		138.113	2105.1	4590			89	BT2B 331840 C/HA1 Galas
406.4	546.1	138.113		138.113	1980	4590			89	BT2B 331840 G/HA1C150 Galas
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085 A/HA1VA928 Galas
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085/HA1VA901 Galas
408.4	546.1	125		150	1766.7	4275			99	Galas BT2B 328466/HA1
408.4	546.1	98		120	1442.7	3105			76.5	Galas BT2B 328874/HA1
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Galas
415.925	590.55	209.55		209.55	3757.5	8685			192	Galas BT2B 328283/HA1
420	620	200		200	2673	6480			210	Galas BT2-8016/HA3
430	535	84		84	972	2700			44.5	Galas BT2B 334013/HA1
445	620	160		160	1908	4590			135	Galas BT2B 334069/HA3
445	620	180		180	1908	4590			160	BT2B 334113/HA3VA901 Galas
447.675	635	223.838		223.838	3960	9900			236	331562 Galas
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 B/HB1 Galas
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1 Galas
450	595	178		178	2852.1	7335			140	Galas BT2B 328523/HA1
460	680	180		180	2826	6255			210	BT2B 328876/HA1 Galas
460	680	180		180	2826	6255			250	Galas BT2B 334030/HA1
464	615	136		150	1944	5265			133	Galas BT2-8215
482	640	160		160	1584	4680			145	Galas BT2B 334112/HA3
482.6	733.425	190		190	2574	7470			293	Galas BT2-8142/HA3
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Galas
500	730	280		280	5940	14040			420	331676 A Bearing
501.65	711.2	250.825		250.825	4950	12330			330	331182 Galas
501.65	711.2	250.825		250.825	4950	12330			330	331182 A Bearing
519.113	736.6	258.762		258.762	5445	14040			370	BT2B 332662 B/HB1 Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
519.113	736.6	258.762		258.762	5445	14040			370	Galas BT2B 332662/HB1
536.575	761.873	269.875		269.875	5643	14400			410	331682 Galas
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Galas
560	820	242		242	4509	10260			425	Galas BT2B 332626/HA7
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331476 AG/HA1 Galas
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854 C/HA1 Galas
571.5	812.8	285.75		285.75	6489	16200			500	Galas BT2B 331854/HA1
580	830	280		280	6138	14940			515	331677 Galas
609.6	787.4	171.45		171.45	3618	9540			218	BT2B 331858/HA1 Galas
609.6	820	171.45		171.45	3618	9540			265	Galas BT2B 332424/HA3
635	939.8	304.8		304.8	6039	14940			720	331555 B Galas
650	1030	270		270	7920	16470			900	Galas BT2B 328306/HA4
660.4	812.8	176.212		176.212	3222	10080			195	331198 Galas
690	980	355		355	9204.3	22500			890	Galas BT2-8164/HA4
800	1260	375		375	13230	30150			1850	Galas BT2B 334032/HA4
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Galas
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Galas
110	180		76	95	400	730			8.63	352122 Galas
120	200		90	110	508	910			11.7	352124 Galas
130	200		80	102	450	800			9.72	352026 Galas
130	210		90	110	540	1000			13.5	352126 Galas
140	210		82	104	480	830			10.9	352028 Galas
140	225		90	115	560	1100			15.5	352128 Galas
150	225		86	110	500	900			14.5	352030 Galas
150	250		112	138	778	1560			25.8	352130 Galas
160	240		90	116	700	1300			16.5	352032 Galas
160	270		120	150	990	2160			34.9	352132 Galas
170	260		100	128	830	1800			21	352034 Galas
170	280		120	150	1100	2400			35.6	352134 Galas
180	280		110	142	1005	2340			27.9	352036 Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
180	300		134	164	1290	2500			43.2	352136 Galas
190	290		110	142	1005	2340			28.8	352038 Galas
190	320		130	170	1160	2410			50.4	352138 Galas
200	310		120	154	1500	2900			41.9	352040 Galas
200	340		150	184	1600	3300			61.5	352140 Galas
220	340		128	166	1210	2500			42.7	352044 Galas
220	370		150	195	1700	3200			76.3	352144 Galas
240	360		128	166	1430	3200			52.8	352048 Galas
240	400		163	210	2000	4100			98.1	352148 Galas
260	400		146	190	1530	3630			75.6	352052 Galas
260	440		180	225	2200	4600			126	352152 Galas
280	420		146	190	1820	4050			81.3	352056 Galas
300	460		168	220	2200	5300			117	352060 Galas
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Galas
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Galas
30	66.675	23.5	42.48	47.24				10400	0.63	80030/80066XPT Galas
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT Galas
31.75	72	26	46.5	51.75				9600	0.75	100031X/100072PT Galas
31.75	76.2	26	46.5	51.75				9600	0.75	Galas 100031X/100076XPT
31.75	80	26	46.5	51.75				9600	0.75	Galas 100031X/100080PT
33.338	66.675	23.5	42.48	47.24				10400	0.63	Galas 80033X/80066XPT
33.338	68	23.5	42.48	47.24				10400	0.63	80033X/80068PT Galas
34.925	72	26	46.5	51.75				9600	0.75	100034X/100072PT Galas
34.925	76.2	26	46.5	51.75				9600	0.75	Galas 100034X/100076XPT
34.925	80	26	46.5	51.75				9600	0.75	Galas 100034X/100080PT
35	66.675	23.5	42.48	47.24				10400	0.6	80035/80066XPT Galas
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Galas
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Galas
35	76.2	26	46.5	51.75				9600	0.75	100035/100076XPT Galas
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
38.1	76	26	45.5	51.25				8800	0.92	101038X/101076PT Galas
38.1	76.2	26	45.5	51.25				8800	0.92	101038X/101076XPT Galas
38.1	80	26	45.5	51.25				8800	0.92	Galas 101038X/101080PT
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT Galas
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Galas
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Galas
41.275	76	26	45.5	51.25				8800	0.92	101041X/101076PT Galas
41.275	76.2	26	45.5	51.25				8800	0.92	101041X/101076XPT Galas
41.275	80	26	45.5	51.25				8800	0.92	101041X/101080PT Galas
41.275	85	24.5	48.66	51.83				8200	1.03	112041X/112085PT Galas
44.45	85	24.5	48.66	51.83				8200	1.03	112044X/112085PT Galas
44.45	85	28	55.66	58.83				8200	1.07	119044X/119085PT Galas
44.45	88.9	28	55.66	58.83				8200	1.07	Galas 119044X/119088XPT
44.45	90	29	51.3	57.65				7400	1.17	111044X/111090PT Galas
44.45	93.266	29	51.3	57.65				7400	1.17	111044X/111093XPT Galas
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Galas
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Galas
45	88.9	28	55.66	58.83				8200	1.07	119045/119088XPT Galas
50	90	29	51.3	57.65				7400	1.17	111050/111090PT Galas
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT Galas
50	96.838	29.5	54	59.5				6900	1.63	110050/110096XPT Galas
50	98.425	29.5	54	59.5				6900	1.63	110050/110098XPT Galas
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Galas
50.8	90	29	51.3	57.65				7400	1.17	111050X/111090PT Galas
50.8	96.838	29.5	54	59.5				6900	1.63	Galas 110050X/110096XPT
50.8	98.425	29.5	54	59.5				6900	1.63	Galas 110050X/110098XPT
50.8	100	29.5	54	59.5				6900	1.63	Galas 110050X/110100PT
53.975	96.838	29.5	54	59.5				6900	1.63	Galas 110053X/110096XPT
53.975	98.425	29.5	54	59.5				6900	1.63	Galas 110053X/110098XPT
53.975	100	29.5	54	59.5				6900	1.63	Galas 110053X/110100PT

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
55	96.838	29.5	54	59.5				6900	1.63	110055/110096XPT Galas
55	98.425	29.5	54	59.5				6900	1.63	110055/110098XPT Galas
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Galas
57.15	96.838	29.5	54	59.5				6900	1.63	110057X/110096XPT Galas
57.15	98.425	29.5	54	59.5				6900	1.63	Galas 110057X/110098XPT
57.15	100	29.5	54	59.5				6900	1.63	110057X/110100PT Galas
57.15	100	26.5	46.88	52.44				6600	1.38	113057X/113100PT Galas
57.15	101.6	26.5	46.88	52.44				6600	1.38	113057X/113101XPT Galas
57.15	110	33	60.3	66.65				6200	2.03	120057X/120110PT Galas
57.15	112.712	33	60.3	66.65				6200	2.03	120057X/120112XPT Galas
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT Galas
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT Galas
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Galas
60	112.712	33	60.3	66.65				6200	2.03	120060/120112XPT Galas
60	120	32	59.88	65.44				5700	2.45	130060/130120PT Galas
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Galas
60.325	100	26.5	46.88	52.44				6600	1.38	113060X/113100PT Galas
60.325	101.6	26.5	46.88	52.44				6600	1.38	Galas 113060X/113101XPT
63.5	110	33	60.3	66.65				6200	1.94	120063X/120110PT Galas
63.5	120	32	59.88	65.44				5700	2.45	130063X/130120PT Galas
63.5	127	32	59.88	65.44				5700	2.45	130063X/130127PT Galas
65	120	32	59.88	65.44				5700	2.45	130065/130120PT Galas
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Galas
69.85	112.712	33	60.3	66.65				5800	1.83	124069X/124112XPT Galas
69.85	120	32	59.88	65.44				5700	2.32	130069X/130120PT Galas
69.85	120	42	73.12	81.06				5700	3.05	135069X/135120PT Galas
69.85	127	32	59.88	65.44				5700	2.45	130069X/130127PT Galas
70	112.712	33	60.3	66.65				5800	1.83	124070/124112XPT Galas
70	120	32	59.88	65.44				5700	2.32	130070/130120PT Galas
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Galas
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT Galas
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT Galas
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT Galas
76.2	127	33.5	60.5	66.75				5300	2.79	133076X/133127PT Galas
76.2	130	33.5	60.5	66.75				5300	2.79	133076X/133130PT Galas
76.2	133.35	33.5	60.5	66.75				5300	2.79	133076X/133133XPT Galas
76.2	136.525	33.5	60.5	66.75				5300	2.79	133076X/133136XPT Galas
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT Galas
82.55	140	38.5	69.14	77.07				4900	3.68	140082X/140140PT Galas
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT Galas
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Galas
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT Galas
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Galas
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT Galas
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT Galas
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT Galas
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT Galas
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Galas
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT Galas
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Galas
92.075	150	33.75	62	68.5				4400	3.8	131092X/131150PT Galas
92.075	152.4	33.75	62	68.5				4400	3.8	131092X/131152XPT Galas
92.075	158.75	33.75	62	68.5				4400	3.8	131092X/131158XPT Galas
93.663	150	33.75	62	68.5				4400	3.8	131093X/131150PT Galas
93.663	152.4	33.75	62	68.5				4400	3.8	131093X/131152XPT Galas
93.663	158.75	33.75	62	68.5				4400	3.8	131093X/131158XPT Galas
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Galas
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT Galas
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT Galas
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Galas
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Galas
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT Galas
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT Galas
98.425	152.4	42	75.8	83.9				4300	4.3	Galas 160098X/160152XPT
98.425	158.75	42	78.5	83.9				4300	4.3	Galas 160098X/160158XPT
98.425	160	42	78.5	83.9				4300	4.3	Galas 160098X/160160PT
98.425	161.925	42	78.5	83.9				4300	4.3	Galas 160098X/160161XPT
100	170	46	84	92				3900	7.67	180100/180170PT Galas
100	180	46	84	92				3900	7.67	180100/180180PT Galas
100	180.975	46	84	92				3900	7.67	180100/180180XPT Galas
100	190	46	84	92				3900	9.58	180100/180190PT Galas
101.6	165.1	39.5	63.51	73.03				3900	5.68	141101X/141165XPT Galas
101.6	170	46	84	92				3900	7.67	180101X/180170PT Galas
101.6	180	46	84	92				3900	7.67	180101X/180180PT Galas
101.6	180.975	46	84	92				3900	7.81	Galas 180101X/180180XPT
101.6	190	46	84	92				3900	9.56	180101X/180190PT Galas
105	170	46	84	92				3900	7.67	180105/180170PT Galas
105	180	46	84	92				3900	7.67	180105/180180PT Galas
105	180.975	46	84	92				3900	7.58	180105/180180XPT Galas
105	190	46	84	92				3900	9.38	180105/180190PT Galas
107.95	165.1	39.5	63.51	73.03				3900	5.68	141107X/141165XPT Galas
111.125	180.975	50	82.6	95.3				3600	7.03	181111X/181180XPT Galas
111.125	190	50	82.6	95.3				3600	8.68	181111X/181190PT Galas
111.125	190.5	50	82.6	95.3				3600	8.78	181111X/181190XPT Galas
111.125	200.025	50	82.6	95.3				3600	8.68	Galas 181111X/181200XPT
115	165	31	55	60				3900	2.85	105115/105165PT Galas
115	180.975	50	82.6	95.3				3600	6.78	181115/181180XPT Galas
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
115	190.5	50	82.6	95.3				3600	8.53	181115/181190XPT Galas
115	200.025	50	82.6	95.3				3600	8.68	181115/181200XPT Galas
118	180.975	50	82.6	95.3				3600	6.57	181118/181180XPT Galas
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Galas
118	190.5	50	82.6	95.3				3600	8.23	181118/181190XPT Galas
118	200.025	50	82.6	95.3				3600	8.68	181118/181200XPT Galas
120	165	31	55	60				3900	2.85	105120/105165PT Galas
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Galas
120	190.5	5	82.6	95.3				3500	7.45	184120/184190XPT Galas
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Galas
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Galas
127	175	31	55	60				3900	2.85	109127X/109175PT Galas
127	196.85	42	85.74	93.67				3400	7.42	164127X/164196XPT Galas
127	200.025	42	85.74	93.67				3400	7.42	Galas 164127X/164200XPT
127	215	51	92	101				3100	11.05	200127X/200215PT Galas
127	215.9	51	92	101				3100	11.05	200127X/200215XPT Galas
133.35	196.85	42	85.74	93.67				3400	7.42	164133X/164196XPT Galas
133.35	200.025	42	85.74	93.67				3400	7.42	Galas 164133X/164200XPT
133.35	215	51	92	101				3100	11.05	200133X/200215PT Galas
133.35	215.9	51	92	101				3100	10.55	200133X/200215XPT Galas
136.525	215	51	92	101				3100	11.05	200136X/200215PT Galas
136.525	215.9	51	92	101				3100	10.25	200136X/200215XPT Galas
139.7	215	51	92	101				3100	11.05	200139X/200215PT Galas
139.7	215.9	51	92	101				3100	11.05	200139X/200215XPT Galas
139.7	241.3	59	104	115				2900	17.7	240139X/240241XPT Galas
140	200	42	73	80.15				3100	6.38	161140/161200PT Galas
140	200.025	42	73	80.15				3100	6.38	161140/161200XPT Galas
142.875	200	42	73	80.15				3100	6.38	161142X/161200PT Galas
142.875	200.025	42	73	80.15				3100	6.38	Galas 161142X/161200XPT
145	241.3	59	104	115				2900	17.15	240145/240241XPT Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
145	256	51	92	101				2700	11.83	203145/203256PT Galas
149.225	241.3	59	104	115				2900	17.15	240149X/240241XPT Galas
150	210	42	76	84				3000	9.1	163150/163210PT Galas
152.4	222.25	49	81.2	93.1				3000	9.08	183152X/183222XPT Galas
152.4	254	74	116.9	135.95				2600	21.72	281152X/281254XPT Galas
152.4	266.7	74	116.9	135.95				2600	21.72	281152X/281266XPT Galas
155.575	254	74	116.9	135.95				2600	21.72	281155X/281254XPT Galas
155.575	266.7	74	116.9	135.95				2600	21.72	281155X/281266XPT Galas
156	235	51	92	101				2700	11.83	203156/203235PT Galas
165.1	254	50	88.96	98.48				2600	12.7	186165X/186254XPT Galas
170	254	50	88.96	98.48				2600	12.7	186170/186254XPT Galas
177.8	227.013	35	63.48	69.24				2700	5.07	115177X/115227XPT Galas
177.8	254	50	88.96	98.48				2600	12.7	186177X/186254XPT Galas
177.8	288.925	71	122.25	138.12				2300	27.2	280177X/280288XPT Galas
185	258	50	90	100				2500	12	187185/187258PT Galas
190.5	282.575	54	91.42	105.71				2300	14.1	242190X/242282XPT Galas
190.5	290	52	96	105				2200	14.2	206190X/206290PT Galas
203.2	310	72	121.08	138.54				2100	25	283203X/283310PT Galas
203.2	317.5	72	121.08	138.54				2100	25	283203X/283317XPT Galas
210	290	52	96	105				2200	13.1	206210/206290PT Galas
210	310	72	121.08	138.54				2100	25	283210/283310PT Galas
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT Galas
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT Galas
230	330	55	90.24	106.12				1900	21	244230X/244330PT Galas
234.95	327.025	55	90.24	106.12				1900	21	244234X/244327XPT Galas
234.95	330	55	90.24	106.12				1900	21	244234X/244330PT Galas
260	385	66	114.34	130.12				1700	32	382260/382385PT Galas
25	52		36.5	43				13300	0.46	74025/74052GUD Bearing
30	62		42.5	51				11600	0.64	Galas 70030/70062GUD
30	66.675		42.48	52				10400	0.78	80030/80066XGUD Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
30	68		42.48	52				10400	0.78	Galas 80030/80068GUD
32	72		46.5	57				9600	0.825	Galas 100031X/100072GUD
32	76.2		46.5	57				9600	0.825	Galas 100031X/100076XGUD
32	80		46.5	57				9600	0.825	Galas 100031X/100080GUD
33	66.675		42.48	52				10400	0.78	Galas 80033X/80066XGUD
33	68		42.48	52				10400	0.78	Galas 80033X/80068GUD
35	72		46.5	57				9600	0.825	Galas 100034X/100072GUD
35	76.2		46.5	57				9600	0.825	Galas 100034X/100076XGUD
35	80		46.5	57				9600	0.825	Galas 100034X/100080GUD
35	66.675		42.48	52				10400	0.72	80035/80066XGUD Galas
35	68		42.48	52				10400	0.75	80035/80068GUD Galas
35	72		46.5	57				9600	0.825	100035/100072GUD Bearing
35	76.2		46.5	57				9600	0.825	100035/100076XGUD Galas
35	80		46.5	57				9600	0.825	Galas 100035/100080GUD
36	72		36.5	42				9600	0.58	102036/102072GUD Bearing
38	76		45.5	57				8800	0.85	Galas 101038X/101076GUD
38	76.2		45.5	57				8800	0.85	Galas 101038X/101076XGUD
38	80		45.5	57				8800	0.85	Galas 101038X/101080GUD
40	76		45.5	57				8800	0.85	101040/101076GUD Bearing
40	76.2		45.5	57				8800	0.85	101040/101076XGUD Galas
40	80		45.5	57				8800	1.025	Galas 101040/101080GUD
40	85		48.66	55				8200	1.19	112040/112085GUD Bearing
41	76		45.5	57				8800	0.85	101041X/101076GUD Galas
41	76.2		45.5	57				8800	0.85	Galas 101041X/101076XGUD
41	80		45.5	57				8800	0.85	Galas 101041X/101080GUD
41	85		48.66	55				8200	1.07	112041X/112085GUD Galas
44	90		51.3	64				7400	1.33	Galas 111044X/111090GUD
44	93.266		51.3	64				7400	1.33	Galas 111044X/111093XGUD
44	85		48.66	55				8200	1.07	112044X/112085GUD Galas
44	85		55.66	62				8200	1.17	Galas 119044X/119085GUD

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
44	88.9		55.66	62				8200	1.17	Galas 119044X/119088XGUD
45	85		48.66	55				8200	1.07	112045/112085GUD Bearing
45	85		55.66	62				8200	1.17	119045/119085GUD Bearing
45	88.9		55.66	62				8200	1.17	119045/119088XGUD Galas
50	90		51.3	64				7400	1.33	111050/111090GUD Bearing
50	93.266		51.3	64				7400	1.33	111050/111093XGUD Galas
50	96.838		54	65				6900	1.945	110050/110096XGUD Galas
50	98.425		54	65				6900	1.945	110050/110098XGUD Galas
50	100		54	65				6900	1.945	Galas 110050/110100GUD
51	90		51.3	64				7400	1.33	Galas 111050X/111090GUD
51	96.838		54	65				6900	1.945	Galas 110050X/110096XGUD
51	98.425		54	65				6900	1.945	Galas 110050X/110098XGUD
51	100		54	65				6900	1.945	Galas 110050X/110100GUD
54	96.838		54	65				6900	1.945	Galas 110053X/110096XGUD
54	98.425		54	65				6900	1.945	Galas 110053X/110098XGUD
54	100		54	65				6900	1.945	Galas 110053X/110100GUD
55	96.838		54	65				6900	1.945	110055/110096XGUD Galas
55	98.425		54	65				6900	1.945	110055/110098XGUD Galas
55	100		54	65				6900	1.765	Galas 110055/110100GUD
57	96.838		54	65				6900	1.945	Galas 110057X/110096XGUD
57	98.425		54	65				6900	1.945	Galas 110057X/110098XGUD
57	100		54	65				6900	1.945	Galas 110057X/110100GUD
57	100		46.88	58				6600	1.825	Galas 113057X/113100GUD
57	101.6		46.88	58				6600	1.825	Galas 113057X/113101XGUD
57	110		60.3	73				6200	2.39	Galas 120057X/120110GUD
57	112.712		60.3	73				6200	2.39	Galas 120057X/120112XGUD
60	100		46.88	58				6600	1.825	Galas 113060/113100GUD
60	101.6		46.88	58				6600	1.825	113060/113101XGUD Galas
60	110		60.3	73				6200	2.39	120060/120110GUD Bearing
60	112.712		60.3	73				6200	2.39	120060/120112XGUD Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
60	120		59.88	71				5700	2.86	Galas 130060/130120GUD
60	127		59.88	71				5700	2.86	130060/130127GUD Bearing
60	100		46.88	58				6600	1.825	Galas 113060X/113100GUD
60	101.6		46.88	58				6600	1.825	Galas 113060X/113101XGUD
64	110		60.3	73				6200	2.21	Galas 120063X/120110GUD
64	120		59.88	71				5700	2.86	Galas 130063X/130120GUD
64	127		59.88	71				5700	2.86	130063X/130127GUD Galas
65	120		59.88	71				5700	2.86	130065/130120GUD Galas
65	127		59.88	71				5700	2.86	130065/130127GUD Bearing
70	112.712		60.3	73				5800	2.015	Galas 124069X/124112XGUD
70	120		59.88	71				5700	2.61	Galas 130069X/130120GUD
70	120		73.12	89				5700	2.73	Galas 135069X/135120GUD
70	127		59.88	71				5700	2.86	130069X/130127GUD Galas
70	112.712		60.3	73				5800	2.015	124070/124112XGUD Galas
70	120		59.88	71				5700	2.64	Galas 130070/130120GUD
70	127		59.88	71				5700	2.86	130070/130127GUD Bearing
73	120		49.7	64				5500	2.35	Galas 123073X/123120GUD
73	120.65		49.7	64				5500	2.35	Galas 123073X/123120XGUD
73	121.444		49.7	64				5500	2.35	Galas 123073X/123121XGUD
73	123.825		49.7	64				5500	2.35	Galas 123073X/123123XGUD
75	120		49.7	64				5500	2.25	123075/123120GUD Bearing
75	120.65		49.7	64				5500	2.25	123075/123120XGUD Galas
75	121.444		49.7	64				5500	2.25	123075/123121XGUD Galas
75	123.825		49.7	64				5500	2.25	123075/123123XGUD Galas
75	127		60.5	73				5300	3.23	133075/133127GUD Bearing
75	130		60.5	73				5300	3.23	133075/133130GUD Bearing
75	133.35		60.5	73				5300	3.23	133075/133133XGUD Galas
75	136.525		60.5	73				5300	3.23	133075/133136XGUD Galas
76	120		49.7	64				5500	2.25	Galas 123076X/123120GUD
76	120.65		49.7	64				5500	2.25	Galas 123076X/123120XGUD

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
76	123.825		49.7	64				5500	2.25	Galas 123076X/123123XGUD
76	127		60.5	73				5300	3.23	133076X/133127GUD Galas
76	130		60.5	73				5300	3.23	Galas 133076X/133130GUD
76	133.35		60.5	73				5300	3.23	Galas 133076X/133133XGUD
76	136.525		60.5	73				5300	3.23	Galas 133076X/133136XGUD
78	120		49.7	64				5500	2.25	Galas 123077X/123120GUD
78	120.65		49.7	64				5500	2.25	Galas 123077X/123120XGUD
78	121.444		49.7	64				5500	2.25	Galas 123077X/123121XGUD
78	123.825		49.7	64				5500	2.25	Galas 123077X/123123XGUD
80	140		69.14	85				4900	4.345	Galas 140080/140140GUD
81	133.35		58.12	74				4900	2.25	Galas 126080X/126133XGUD
83	133.35		58.12	74				4900	2.25	Galas 126082X/126133XGUD
83	136.525		58.12	74				4900	2.25	Galas 126082X/126136XGUD
83	140		69.14	85				4900	4.145	Galas 140082X/140140GUD
84	133.35		58.12	74				4900	2.4	Galas 126084X/126133XGUD
84	136.525		58.12	74				4900	2.4	Galas 126084X/126136XGUD
85	140		69.14	85				4900	3.945	140085/140140GUD Bearing
85	170		89	106				4200	8.345	210085/210170GUD Bearing
86	133.35		58.12	74				4900	2.4	Galas 126085X/126133XGUD
86	136.525		58.12	74				4900	2.4	Galas 126085X/126136XGUD
89	133.35		58.12	74				4900	2.4	Galas 126088X/126133XGUD
89	136.525		58.12	74				4900	2.4	Galas 126088X/126136XGUD
90	133.35		60.12	76				4800	3.9	117090/117133XGUD Galas
90	170		89	106				4200	8.345	210090/210170GUD Galas
90	150		62	75				4400	4.625	131090/131150GUD Galas
90	152.4		62	75				4400	4.625	131090/131152XGUD Galas
90	158.75		62	75				4400	4.625	131090/131158XGUD Galas
90	152.4		75.8	92				4300	4.95	160090/160152XGUD Galas
90	158.75		75.8	92				4300	4.95	160090/160158XGUD Galas
90	160		75.8	92				4300	4.95	Galas 160090/160160GUD

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
90	161.925		75.8	92				4300	4.95	160090/160161XGUD Galas
92	150		62	75				4400	4.625	Galas 131092X/131150GUD
92	152.4		62	75				4400	4.625	Galas 131092X/131152XGUD
92	158.75		62	75				4400	4.625	Galas 131092X/131158XGUD
94	152.4		62	75				4400	4.625	Galas 131093X/131152XGUD
94	150		62	75				4400	4.625	Galas 131093X/131150GUD
94	158.75		62	75				4400	4.625	Galas 131093X/131158XGUD
95	150		62	75				4400	4.625	131095/131150GUD Bearing
95	152.4		62	75				4400	4.505	131095/131152XGUD Galas
95	158.75		62	75				4400	4.625	131095/131158XGUD Galas
95	170		89	106				4200	8.345	210095/210170GUD Bearing
97	152.4		62	75				4400	4.345	131097/131152XGUD Galas
97	150		62	75				4400	4.625	131097/131150GUD Bearing
97	158.75		62	75				4400	4.625	131097/131158XGUD Galas
98	152.4		75.8	92				4300	4.95	Galas 160098X/160152XGUD
98	158.75		75.8	92				4300	4.95	Galas 160098X/160158XGUD
98	160		75.8	92				4300	4.95	Galas 160098X/160160GUD
98	161.925		75.8	92				4300	4.95	Galas 160098X/160161XGUD
100	170		84	100				3900	11	Galas 180100/180170GUD
100	180		84	100				3900	9.1	Galas 180100/180180GUD
100	180.975		84	100				3900	11	Galas 180100/180180XGUD
100	190		84	100				3900	11	Galas 180100/180190GUD
102	165.1		67.96	87				3900	9.16	Galas 141101X/141165XGUD
102	170		84	100				3900	11	Galas 180101X/180170GUD
102	180		84	100				3900	11	Galas 180101X/180180GUD
102	180.975		84	100				3900	9.28	Galas 180101X/180180XGUD
102	190		84	100				3900	10.96	Galas 180101X/180190GUD
105	170		84	100				3900	11	180105/180170GUD Galas
105	180		84	100				3900	11	180105/180180GUD Galas
105	180.975		84	100				3900	8.82	180105/180180XGUD Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
105	190		84	100				3900	10.5	180105/180190GUD Galas
108	165.1		67.96	87				3900	9.16	141107X/141165XGSUD Galas
111	180.975		82.6	108				3600	8.34	Galas 181111X/181180XGUD
111	190		82.6	108				3600	9.95	181111X/181190GUD Galas
111	190.5		82.6	108				3600	10.05	Galas 181111X/181190XGUD
111	200.025		82.6	108				3600	8.34	Galas 181111X/181200XGUD
115	165		55	65				3900	3.36	105115/105165GUD Bearing
115	180.975		82.6	108				3600	7.84	181115/181180XGUD Galas
115	190		82.6	108				3600	9.45	181115/181190GUD Bearing
115	190.5		82.6	108				3600	9.55	181115/181190XGUD Galas
115	200.025		82.6	108				3600	8.34	181115/181200XGUD Galas
118	180.975		82.6	108				3600	7.42	181118/181180XGUD Galas
118	190		82.6	108				3600	9.03	181118/181190GUD Bearing
118	190.5		82.6	108				3600	9.13	181118/181190XGUD Galas
118	200.025		82.6	108				3600	8.34	181118/181200XGUD Galas
120	165		55	65				3900	3.36	105120/105165GUD Bearing
120	190		82.6	108				3500	8.46	184120/184190GUD Bearing
120	190.5		82.6	108				3500	8.46	184120/184190XGUD Galas
120	199		82.6	108				3500	8.46	184120/184199GUD Bearing
120	200		82.6	108				3500	8.46	184120/184200GUD Galas
127	196.85		85.74	101.6				3400	8.8	164127X/164196XGUD Galas
127	200.025		85.74	101.6				3400	8.8	Galas 164127X/164200XGUD
127	215		92	110				3100	13.54	200127X/200215GUD Bearing
127	215.9		92	110				3100	13.54	Galas 200127X/200215XGUD
133	196.85		85.74	101.6				3400	8.8	164133X/164196XGUD Galas
133	200.025		85.74	101.6				3400	8.8	Galas 164133X/164200XGUD
133	215		92	110				3100	13.54	200133X/200215GUD Bearing
133	215.9		92	110				3100	12.49	Galas 200133X/200215XGUD
137	215		92	110				3100	13.54	200136X/200215GUD Bearing
137	215.9		92	110				3100	11.97	Galas 200136X/200215XGUD

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
140	215		92	110				3100	13.54	200139X/200215GUD Galas
140	215.9		92	110				3100	13.54	200139X/200215XGUD Galas
140	241.3		104	126				2900	19.86	Galas 240139X/240241XGUD
140	200		78	92.3				3100	9.7	161140/161200GSUD Galas
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD Galas
143	200		78	92.3				3100	9.7	161142X/161200GSUD Galas
143	200.025		78	92.3				3100	9.7	161142X/161200XGSUD Galas
145	241.3		104	126				2900	18.78	240145/240241XGUD Galas
145	256		92	110				2700	14.49	203145/203256GUD Bearing
149	241.3		104	126				2900	18.78	Galas 240149X/240241XGUD
150	210		76	92				3000	9.96	163150/163210GUD Bearing
152	222.25		81.2	105				3000	10.73	Galas 183152X/183222XGUD
152	254		116.9	155				2600	24.87	Galas 281152X/281254XGUD
152	266.7		116.9	155				2600	24.87	Galas 281152X/281266XGUD
156	254		116.9	155				2600	24.87	Galas 281155X/281254XGUD
156	266.7		116.9	155				2600	24.87	Galas 281155X/281266XGUD
156	235		92	110				2700	14.49	203156/203235GUD Bearing
165	254		88.96	108				2600	14.9	Galas 186165X/186254XGUD
170	254		88.96	108				2600	14.9	186170/186254XGUD Galas
178	227.013		63.48	75				2700	5.93	Galas 115177X/115227XGUD
178	254		88.96	108				2600	14.9	Galas 186177X/186254XGUD
178	288.925		122.25	154				2300	31.8	Galas 280177X/280288XGUD
185	258		90	110				2500	11.94	187185/187258GUD Bearing
190	266.7		94.14	113.18				2400	15	204190/204266XGUD Galas
191	266.7		94.14	113.18				2400	15	Galas 204190X/204266XGUD
191	282.575		91.42	120				2300	19.3	Galas 242190X/242282XGUD
191	290		96	114				2200	17	Galas 206190X/206290GUD
203	310		121.07	156				2100	32	Galas 283203X/283310GUD
203	317.5		121.07	156				2100	35.3	283203X/283317XGUD Galas
210	290		96	114				2200	17	206210/206290GUD Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
210	310		121.07	156				2100	31.2	283210/283310GUD Bearing
210	317.5		121.07	156				2100	34.5	283210/283317XGUD Galas
216	355.6		124.72	166				1900	50	Galas 284215X/284355XGUD
229	355.6		124.72	166				1900	50	Galas 284228X/284355XGUD
230	327.025		90.24	122				1900	23	244230/244327XGUD Galas
230	330		90.24	122				1900	26.84	244230/244330GUD Bearing
235	327.025		90.24	122				1900	20	244234X/244327XGUD Galas
235	330		90.24	122				1900	26.8	Galas 244234X/244330GUD
235	355.6		124.72	166				1900	47.43	Galas 284234X/284355XGUD
254	400.05		114.24	146				1700	53.98	Galas 382254X/382400XGUD
275	406.4		140	176				1600	65.94	320275/320406XGUD Galas
280	406.4		140	176				1600	63.18	Galas 320280X/320406XGUD
330	482.6		158.72	200				1400	104	Galas 380330X/380482XGUD
338	419.1		79	94				1500	30.4	Galas 152338X/152419XGUD
356	482.6		100.55	145				1400	57.3	Galas 282355X/282482XGUD
381	508		147	187				1300	79.2	Galas 303381X/303508XGUD
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD Galas
432	533.4		100.78	123				1200	44.7	Galas 232431X/232533XGUD
457	596.9		147	187				1100	94.3	Galas 300457X/300596XGUD
506	636		147	187				1000	115	307506/307636GUD Bearing
25	52		36.5	43				13300	0.48	Galas 74025/74052HUWF
30	62		42.5	51				11600	0.66	Galas 70030/70062HUWF
30	66.675		42.48	52				10400	0.8	Galas 80030/80066XHUWF
30	68		42.48	52				10400	0.8	Galas 80030/80068HUWF
32	72		46.5	57				9600	0.86	Galas 100031X/100072HUWF
32	76.2		46.5	57				9600	0.86	Galas 100031X/100076XHUWF
32	80		46.5	57				9600	0.86	Galas 100031X/100080HUWF
33	66.675		42.48	52				10400	0.8	Galas 80033X/80066XHUWF
33	68		42.48	52				10400	0.8	Galas 80033X/80068HUWF
35	72		46.5	57				9600	0.86	Galas 100034X/100072HUWF

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
35	76.2		46.5	57				9600	0.86	Galas 100034X/100076XHUWF
35	80		46.5	57				9600	0.86	Galas 100034X/100080HUWF
35	66.675		42.48	52				10400	0.74	Galas 80035/80066XHUWF
35	72		46.5	57				9600	0.855	Galas 100035/100072HUWF
35	76.2		46.5	57				9600	0.86	100035/100076XHUWF Galas
35	80		46.5	57				9600	0.86	Galas 100035/100080HUWF
36	72		36.5	42				9600	0.595	102036/102072HUWF Galas
38	76		45.5	57				8800	0.865	Galas 101038X/101076HUWF
38	76.2		45.5	57				8800	0.865	Galas 101038X/101076XHUWF
38	80		45.5	57				8800	0.865	Galas 101038X/101080HUWF
40	76		45.5	57				8800	0.865	101040/101076HUWF Galas
40	76.2		45.5	57				8800	0.865	101040/101076XHUWF Galas
40	80		45.5	57				8800	1.07	Galas 101040/101080HUWF
40	85		48.66	55				8200	1.13	112040/112085HUWF Galas
41	76		45.5	57				8800	0.865	Galas 101041X/101076HUWF
41	76.2		45.5	57				8800	0.865	Galas 101041X/101076XHUWF
41	80		45.5	57				8800	0.865	Galas 101041X/101080HUWF
41	85		48.66	55				8200	1.11	112041X/112085HUWF Galas
44	85		48.66	55				8200	1.11	Galas 112044X/112085HUWF
44	85		55.66	62				8200	1.19	Galas 119044X/119085HUWF
44	88.9		55.66	62				8200	1.19	Galas 119044X/119088XHUWF
44	90		51.3	64				7400	1.38	Galas 111044X/111090HUWF
44	93.266		51.3	64				7400	1.38	Galas 111044X/111093XHUWF
45	85		48.66	55				8200	1.11	112045/112085HUWF Galas
45	85		55.66	62				8200	1.19	119045/119085HUWF Galas
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF Galas
50	90		51.3	64				7400	1.38	111050/111090HUWF Galas
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF Galas
50	96.838		54	65				6900	2.005	110050/110096XHUWF Galas
50	98.425		54	65				6900	2.005	110050/110098XHUWF Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
50	100		54	65				6900	2.005	Galas 110050/110100HUWF
51	90		51.3	64				7400	1.38	Galas 111050X/111090HUWF
51	96.838		54	65				6900	2.005	Galas 110050X/110096XHUWF
51	98.425		54	65				6900	2.005	Galas 110050X/110098XHUWF
51	100		54	65				6900	2.005	Galas 110050X/110100HUWF
54	96.838		54	65				6900	2.005	Galas 110053X/110096XHUWF
54	98.425		54	65				6900	2.005	Galas 110053X/110098XHUWF
54	100		54	65				6900	2.005	Galas 110053X/110100HUWF
55	96.838		54	65				6900	2.005	110055/110096XHUWF Galas
55	98.425		54	65				6900	2.005	110055/110098XHUWF Galas
55	100		54	65				6900	1.825	110055/110100HUWF Galas
57	96.838		54	65				6900	2.005	Galas 110057X/110096XHUWF
57	96.838		54	65				6900	2.005	Galas 110057X/110098XHUWF
57	100		54	65				6900	2.005	Galas 110057X/110100HUWF
57	100		46.88	58				6600	1.9	Galas 113057X/113100HUWF
57	101.6		46.88	58				6600	1.9	Galas 113057X/113101XHUWF
57	110		60.3	73				6200	2.47	Galas 120057X/120110HUWF
57	112.712		60.3	73				6200	2.47	Galas 120057X/120112XHUWF
60	100		46.88	58				6600	1.9	Galas 113060/113100HUWF
60	101.6		46.88	58				6600	1.9	113060/113101XHUWF Galas
60	110		60.3	73				6200	2.47	Galas 120060/120110HUWF
60	112.712		60.3	73				6200	2.47	120060/120112XHUWF Galas
60	120		59.88	71				5700	2.96	Galas 130060/130120HUWF
60	127		59.88	71				5700	2.96	130060/130127HUWF Galas
60	100		46.88	58				6600	1.9	Galas 113060X/113100HUWF
60	101.6		46.88	58				6600	1.9	Galas 113060X/113101XHUWF
64	110		60.3	73				6200	2.29	Galas 120063X/120110HUWF
64	120		59.88	71				5700	2.96	Galas 130063X/130120HUWF
64	127		59.88	71				5700	2.96	Galas 130063X/130127HUWF
65	120		59.88	71				5700	2.96	Galas 130065/130120HUWF

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
65	127		59.88	71				5700	2.96	130065/130127HUWF Galas
70	127		59.88	71				5700	2.96	Galas 130069X/130127HUWF
70	112.712		60.3	73				5800	2.085	Galas 124069X/124112XHUWF
70	120		59.88	71				5700	2.71	Galas 130069X/130120HUWF
70	120		73.12	89				5700	2.79	Galas 135069X/135120HUWF
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF Galas
70	120		59.88	71				5700	2.7	Galas 130070/130120HUWF
70	127		59.88	71				5700	2.96	130070/130127HUWF Galas
73	120		49.7	64				5500	2.35	Galas 123073X/123120HUWF
73	120.65		49.7	64				5500	2.35	Galas 123073X/123120XHUWF
73	121.444		49.7	64				5500	2.35	Galas 123073X/123121XHUWF
73	123.825		49.7	64				5500	2.35	Galas 123073X/123123XHUWF
75	120		49.7	64				5500	2.25	123075/123120HUWF Galas
75	120.65		49.7	64				5500	2.25	123075/123120XHUWF Galas
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF Galas
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF Galas
75	127		60.5	73				5300	3.3	133075/133127HUWF Galas
75	130		60.5	73				5300	3.3	133075/133130HUWF Galas
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF Galas
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF Galas
76	120		49.7	64				5500	2.25	Galas 123076X/123120HUWF
76	120.65		49.7	64				5500	2.25	Galas 123076X/123120XHUWF
76	123.825		49.7	64				5500	2.25	Galas 123076X/123123XHUWF
76	127		60.5	73				5300	3.3	Galas 133076X/133127HUWF
76	130		60.5	73				5300	3.3	Galas 133076X/133130HUWF
76	133.35		60.5	73				5300	3.3	Galas 133076X/133133XHUWF
76	136.525		60.5	73				5300	3.3	Galas 133076X/133136XHUWF
78	120		49.7	64				5500	2.25	Galas 123077X/123120HUWF
78	120.65		49.7	64				5500	2.25	Galas 123077X/123120XHUWF
78	121.444		49.7	64				5500	2.25	Galas 123077X/123121XHUWF

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
78	123.825		49.7	64				5500	2.25	Galas 123077X/123123XHUWF
80	140		69.14	85				4900	4.545	Galas 140080/140140HUWF
81	133.35		58.12	74				4900	2.25	Galas 126080X/126133XHUWF
83	133.35		58.12	74				4900	2.25	Galas 126082X/126133XHUWF
83	136.525		58.12	74				4900	2.25	Galas 126082X/126136XHUWF
83	140		69.14	85				4900	4.345	Galas 140082X/140140HUWF
84	133.35		58.12	74				4900	2.4	Galas 126084X/126133XHUWF
84	136.525		58.12	74				4900	2.4	Galas 126084X/126136XHUWF
85	140		69.14	85				4900	4.145	140085/140140HUWF Galas
85	170		89	106				4200	8.545	210085/210170HUWF Galas
86	133.35		58.12	74				4900	2.4	Galas 126085X/126133XHUWF
86	136.525		58.12	74				4900	2.4	Galas 126085X/126136XHUWF
89	133.35		58.12	74				4900	2.4	Galas 126088X/126133XHUWF
89	136.525		58.12	74				4900	2.4	Galas 126088X/126136XHUWF
90	133.35		60.12	76				4800	4	117090/117133XHUWF Galas
90	150		62	75				4400	4.745	131090/131150HUWF Galas
90	152.4		62	75				4400	4.745	131090/131152XHUWF Galas
90	152.4		75.8	92				4300	5.15	160090/160152XHUWF Galas
90	158.75		62	75				4400	4.745	131090/131158XHUWF Galas
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF Galas
90	160		75.8	92				4300	5.15	Galas 160090/160160HUWF
90	161.925		75.8	92				4300	5.15	160090/160161XHUWF Galas
90	170		89	106				4200	8.545	Galas 210090/210170HUWF
92	150		62	75				4400	4.745	Galas 131092X/131150HUWF
92	152.4		62	75				4400	4.745	Galas 131092X/131152XHUWF
92	158.75		62	75				4400	4.745	Galas 131092X/131158XHUWF
94	150		62	75				4400	4.745	Galas 131093X/131150HUWF
94	152.4		62	75				4400	4.745	Galas 131093X/131152XHUWF
94	158.75		62	75				4400	4.745	Galas 131093X/131158XHUWF
95	150		62	75				4400	4.745	131095/131150HUWF Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
95	152.4		62	75				4400	4.625	131095/131152XHUWF Galas
95	158.75		62	75				4400	4.745	131095/131158XHUWF Galas
95	170		89	106				4200	8.545	210095/210170HUWF Galas
97	150		62	75				4400	4.745	131097/131150HUWF Galas
97	152.4		62	75				4400	4.465	131097/131152XHUWF Galas
97	158.75		62	75				4400	4.745	131097/131158XHUWF Galas
98	152.4		75.8	92				4300	5.15	Galas 160098X/160152XHUWF
98	158.75		75.8	92				4300	5.15	Galas 160098X/160158XHUWF
98	160		75.8	92				4300	5.15	Galas 160098X/160160HUWF
98	161.925		75.8	92				4300	5.15	Galas 160098X/160161XHUWF
100	170		84	100				3900	9.52	Galas 180100/180170HUWF
100	180		84	100				3900	9.42	Galas 180100/180180HUWF
100	180.975		84	100				3900	9.52	180100/180180XHUWF Galas
100	190		84	100				3900	11.12	Galas 180100/180190HUWF
102	165.1		67.96	87				3900	9.4	141101X/141165XHUWF Galas
102	170		84	100				3900	9.52	Galas 180101X/180170HUWF
102	180		84	100				3900	9.52	Galas 180101X/180180HUWF
102	180.975		84	100				3900	9.52	Galas 180101X/180180XHUWF
102	190		84	100				3900	11.08	Galas 180101X/180190HUWF
105	170		84	100				3900	9.52	Galas 180105/180170HUWF
105	180		84	100				3900	9.52	180105/180180HUWF Galas
105	180.975		84	100				3900	9.06	180105/180180XHUWF Galas
105	190		84	100				3900	10.62	180105/180190HUWF Galas
108	165.1		67.96	87				3900	9.4	141107X/141165XHSUWF Galas
111	180.975		82.6	108				3600	8.6	Galas 181111X/181180XHUWF
111	190		82.6	108				3600	10.1	181111X/181190HUWF Galas
111	190.5		82.6	108				3600	10.4	Galas 181111X/181190XHUWF
111	200.025		82.6	108				3600	8.6	Galas 181111X/181200XHUWF
115	165		55	65				3900	3.45	105115/105165HUWF Galas
115	180.975		82.6	108				3600	8.1	181115/181180XHUWF Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
115	190		82.6	108				3600	9.6	181115/181190HUWF Galas
115	190.5		82.6	108				3600	9.9	181115/181190XHUWF Galas
115	200.025		82.6	108				3600	8.6	181115/181200XHUWF Galas
118	180.975		82.6	108				3600	7.68	181118/181180XHUWF Galas
118	190		82.6	108				3600	9.18	181118/181190HUWF Galas
118	190.5		82.6	108				3600	9.48	181118/181190XHUWF Galas
118	200.025		82.6	108				3600	8.6	181118/181200XHUWF Galas
120	165		55	65				3900	3.45	105120/105165HUWF Galas
120	190		82.6	108				3500	8.8	184120/184190HUWF Galas
120	190.5		82.6	108				3500	8.8	184120/184190XHUWF Galas
120	199		82.6	108				3500	8.8	184120/184199HUWF Galas
120	200		82.6	108				3500	8.8	184120/184200HUWF Galas
127	196.85		85.74	101.6				3400	9.2	164127X/164196XHUWF Galas
127	200.025		85.74	101.6				3400	9.2	Galas 164127X/164200XHUWF
127	215		92	110				3100	13.9	Galas 200127X/200215HUWF
127	215.9		92	110				3100	13.9	Galas 200127X/200215XHUWF
133	196.85		85.74	101.6				3400	9.2	164133X/164196XHUWF Galas
133	196.85		76.74	92.6				3400	8.5	164133X/164196XHSUWF Galas
133	200.025		85.74	101.6				3400	9.2	Galas 164133X/164200XHUWF
133	215		92	110				3100	13.9	Galas 200133X/200215HUWF
133	215.9		92	110				3100	12.85	Galas 200133X/200215XHUWF
137	215		92	110				3100	13.9	Galas 200136X/200215HUWF
137	215.9		92	110				3100	12.33	Galas 200136X/200215XHUWF
140	215		92	110				3100	13.9	Galas 200139X/200215HUWF
140	215.9		92	110				3100	13.9	Galas 200139X/200215XHUWF
140	241.3		104	126				2900	20.485	Galas 240139X/240241XHUWF
140	200		78	92.3				3100	10	161140/161200HSUWF Galas
140	200.025		78	92.3				3100	10	161140/161200XHSUWF Galas
143	200		78	92.3				3100	10	Galas 161142X/161200HSUWF
143	200.025		78	92.3				3100	10	Galas 161142X/161200XHSUWF

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
145	241.3		104	126				2900	19.405	240145/240241XHUWF Galas
145	256		92	110				2700	14.87	203145/203256HUWF Galas
149	241.3		104	126				2900	20.485	Galas 240149X/240241XHUWF
150	210		76	92				3000	10.2	163150/163210HUWF Galas
152	222.25		81.2	105				3000	11.15	Galas 183152X/183222XHUWF
152	254		116.9	155				2600	25.6	Galas 281152X/281254XHUWF
152	266.7		116.9	155				2600	25.6	Galas 281152X/281266XHUWF
156	254		116.9	155				2600	25.6	Galas 281155X/281254XHUWF
156	266.7		116.9	155				2600	25.6	Galas 281155X/281266XHUWF
156	235		92	110				2700	14.87	203156/203235HUWF Galas
165	254		88.96	108				2600	15	Galas 186165X/186254XHUWF
170	254		88.96	108				2600	15	186170/186254XHUWF Galas
178	227.013		63.48	75				2700	6.15	115177X/115227XHUWF Galas
178	254		88.96	108				2600	15	Galas 186177X/186254XHUWF
178	288.925		122.25	154				2300	32.6	Galas 280177X/280288XHUWF
185	258		90	110				2500	12.3	187185/187258HUWF Galas
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF Galas
191	266.7		94.14	113.18				2400	15.5	Galas 204190X/204266XHUWF
191	282.575		91.42	120				2300	20	Galas 242190X/242282XHUWF
191	290		96	114				2200	17.3	Galas 206190X/206290HUWF
203	310		121.08	156				2100	32.8	Galas 283203X/283310HUWF
203	317.5		121.08	156				2100	36.3	283203X/283317XHUWF Galas
210	290		96	114				2200	17.3	206210/206290HUWF Galas
210	310		121.08	156				2100	32	283210/283310HUWF Galas
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF Galas
216	355.6		124.72	166				1900	51	Galas 284215X/284355XHUWF
229	355.6		124.72	166				1900	51	Galas 284228X/284355XHUWF
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF Galas
230	330		90.24	122				1900	27.35	244230/244330HUWF Galas
235	327.025		90.24	122				1900	21	244234X/244327XHUWF Galas

Dimensi asas					Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas					dinamik	statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
235	330		90.24	122				1900	27	Galas 244234X/244330HUWF
235	355.6		124.72	166				1900	48.43	Galas 284234X/284355XHUWF
254	400.05		114.24	146				1700	55.5	Galas 382254X/382400XHUWF
275	406.4		140	176				1600	67.6	320275/320406XHUWF Galas
280	406.4		140	176				1600	64.84	Galas 320280X/320406XHUWF
330	482.6		157.73	200				1400	105	Galas 380330X/380482XHUWF
338	419.1		79	94				1500	30.9	Galas 152338X/152419XHUWF
356	482.6		100.55	145				1400	58.7	Galas 282355X/282482XHUWF
381	508		147	187				1300	80	Galas 303381X/303508XHUWF
406	549.275		152.36	200				1200	98.25	Galas 323406XS/323549XHSUWF
432	533.4		100.78	123				1200	45	232431X/232533XHUWF Galas
457	596.9		147	187				1100	95	Galas 300457X/300596XHUWF
506	636		147	187				1000	116	307506/307636HUWF Bearing

Kejuruteraan Masa Depan Pergerakan

Mengenai UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 -Galas Gelek Tirus Dua Baris suppliers and OEM/ODM BT2B 332504/HA2 -Galas Gelek Tirus Dua Baris company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Lagi Mengenai Kami Ukl Bearing Manufacturing Co.,Ltd

0+

tahun

Pengalaman Industri
0+

Kepelbagaian model
0+

Bilangan Pekerja
0

$

Nilai eksport tahunan

Sijil Kepujian

Berita

Mengapa Galas Gelek Silinder NU 309 Cemerlang dalam Reka Bentuk Motor dan Kotak Gear?
04 Jun, 2026
Bawa pulang Utama: NU 309 Bearing Excell sebagai Galas Terapung Untuk reka bentuk motor dan kotak gear di mana pengembangan haba aci adalah kebimbangan kritikal, galas NU 309 ...

BACA LAGI
Cara Memasang Cincin AV Nilos 2206 (Panduan Langkah demi Langkah)
28 May, 2026
Pasang dengan bahagian terbuka menghadap galas Untuk memasang dengan betul 2206 AV Cincin Nilos, letakkannya supaya sisi cembung (terbuka) menghala ke arah laluan perlum...

BACA LAGI
Bagaimana untuk Memilih Galas Bebola Sentuhan Sudut yang Tepat untuk Aplikasi Berkelajuan Tinggi?
21 May, 2026
Memilih komponen guling yang optimum untuk jentera berputar berkelajuan tinggi memerlukan pemahaman yang mendalam tentang keadaan operasi, geometri dalaman dan pengurusan terma. Antara jentera kete...

BACA LAGI
Ketepatan Di Bawah Tekanan: Faktor Utama Memacu Pemilihan Galas Peralatan Perubatan
14 May, 2026
Dalam bidang teknologi perubatan yang berkembang pesat, komponen terkecil pun boleh menentukan kejayaan peranti yang menyelamatkan nyawa. Antaranya, galas peralatan perubatan memainka...

BACA LAGI
