22205 E Galas

Kelebihan dan Aplikasi Galas Gelek Sfera (SRB)
Spherical Roller Bearings (SRBs) ialah elemen gelek yang sangat teguh direka untuk aplikasi yang menuntut.

Hubungi Kami

PRAV：No previous product SETERUSNYA：Tiada produk seterusnya

Penerangan
Spesifikasi
Hubungi Kami

Ciri dan Kelebihan Utama
· Kapasiti Beban Radial Tinggi: Mereka mempunyai kapasiti pembawa beban jejarian yang besar. Ia boleh dipasang terus pada aci silinder atau dipasang menggunakan lengan penyesuai atau lengan pengeluaran.
·Keupayaan Menjajarkan Diri: Oleh kerana gelang luar mempunyai raceway sfera, galas mempunyai sifat penjajaran diri yang wujud. Ini membolehkan galas untuk mengimbangi ralat penjajaran (ralat koaksial) dan kekal tidak terjejas oleh salah jajaran antara aci dan perumah atau oleh pesongan/lentur aci.
· Kapasiti Beban Paksi: Mereka mampu menampung tahap beban paksi tertentu.
· Reka Bentuk Struktur: Ia menampilkan dua baris penggelek berbentuk tong (sfera). Lingkaran luar mempunyai satu laluan perlumbaan sfera cekung biasa, dan cincin dalam mempunyai dua laluan perlumbaan cekung yang condong pada sudut ke paksi galas. Pusat kelengkungan litar lumba gelang luar bertepatan dengan pusat galas.
· Gabungan dan Kapasiti Beban Dinamik: Selain menampung beban jejarian, mereka boleh menahan beban paksi dua arah dan beban gabungannya. Mereka menawarkan kapasiti membawa beban yang besar sambil memberikan rintangan yang baik terhadap getaran dan beban kejutan.

Bidang Aplikasi (Industri Utama)
Galas Penggelek Sfera digunakan secara meluas dalam pelbagai peralatan mekanikal merentas industri, menjadikannya komponen penting dalam sektor jentera:
· Industri Keluli
· Perlombongan
· Kilang Kertas
·Marin/Perkapalan
· Jentera Tekstil
·Penumbuk Arang Batu (Kilang Pengisaran)
· Penjanaan Kuasa (Kuasa Elektrik)
·Industri Berat Lain

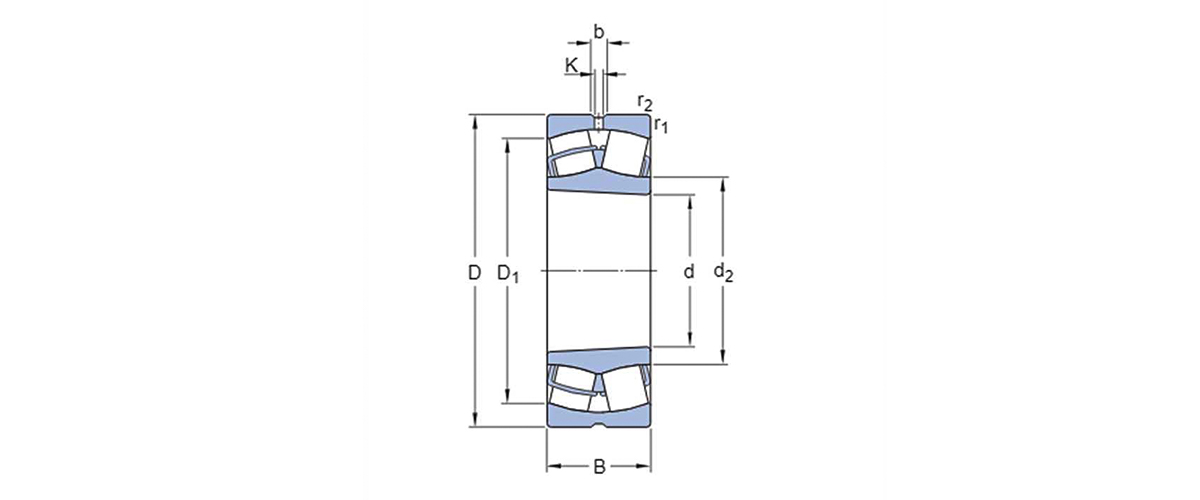

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
20	52	18	44.91	39.6	11700	15300	0.28	22205 E Galas
25	62	17	44.19	37.35	8370	10800	0.27	Galas 21305 CC
25	52	18	44.91	39.6	11700	15300	0.18	22205 E Galas
25	52	18	44.91	39.6	11700	15300	0.17	22205 EK Galas
25	52	23	44.91	39.6		5490	0.26	Galas BS2-2205-2RS/VT143
30	72	19	59.13	54.9	7380	9000	0.41	21306 CC Galas
30	62	20	59.49	54	9000	12600	0.28	22206 E Galas
30	62	20	59.49	54	9000	12600	0.28	22206 EK Bearing
30	62	25	59.49	54		4590	0.34	Galas BS2-2206-2RS/VT143
35	80	21	71.28	64.8	6570	8550	0.54	21307 CC Galas
35	72	23	79.92	76.5	8100	10800	0.44	22207 E Galas
35	72	23	79.92	76.5	8100	10800	0.43	22207 EK Bearing
35	72	28	79.92	76.5		3870	0.52	Galas BS2-2207-2RS/VT143
40	90	23	96.3	97.2	6300	8550	0.74	21308 E Galas
40	90	23	96.3	97.2	6300	8550	0.74	21308 EK Bearing
40	80	23	88.65	81	7200	9900	0.53	22208 E Galas
40	80	23	88.65	81	7200	9900	0.52	22208 EK Bearing
40	90	33	139.5	126	5400	7200	1	22308 E Galas
40	90	33	139.5	126	5400	7200	1.05	22308 E/VA405 Galas
40	90	33	139.5	126	5400	7200	0.99	22308 EK Bearing
40	80	28	88.65	81		3510	0.57	Galas BS2-2208-2RS/VT143
40	80	28	88.65	81		3510	0.55	Galas BS2-2208-2RSK/VT143
40	90	38	139.5	126		3510	1.2	Galas BS2-2308-2RS/VT143
45	100	25	116.1	114.3	5670	7650	0.98	21309 E Galas
45	100	25	116.1	114.3	5670	7650	0.97	21309 EK Bearing
45	85	23	93.6	88.2	6750	9000	0.57	22209 E Galas
45	85	23	93.6	88.2	6750	9000	0.56	22209 EK Bearing
45	100	36	171	164.7	4770	6300	1.4	22309 E Galas
45	100	36	171	164.7	4770	6300	1.4	22309 E/VA405 Galas
45	100	36	171	164.7	4770	6300	1.35	22309 EK Bearing

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
45	85	28	93.6	88.2		3150	0.66	Galas BS2-2209-2RS/VT143
45	85	28	93.6	88.2		3150	0.66	Galas BS2-2209-2RSK/VT143
45	100	42	171	164.7		3060	1.6	Galas BS2-2309-2RS/VT143
50	110	27	143.1	149.4	5040	6750	1.3	21310 E Galas
50	110	27	143.1	149.4	5040	6750	1.3	21310 EK Bearing
50	90	23	96.3	97.2	6300	8550	0.62	22210 E Galas
50	90	23	96.3	97.2	6300	8550	0.61	22210 EK Bearing
50	110	40	205.2	201.6	4320	5670	1.85	22310 E Galas
50	110	40	205.2	201.6	4320	5670	1.9	22310 E/VA405 Galas
50	110	40	205.2	201.6	4320	5670	1.8	22310 EK Bearing
50	90	28	96.3	97.2		2880	0.7	Galas BS2-2210-2RS/VT143
50	90	28	96.3	97.2		2880	0.7	Galas BS2-2210-2RSK/VT143
50	110	45	205.2	201.6		2700	2.1	Galas BS2-2310-2RS/VT143
55	120	29	143.1	149.4	5040	6750	1.7	21311 E Galas
55	120	29	143.1	149.4	5040	6750	1.65	21311 EK Bearing
55	100	25	116.1	114.3	5670	7650	0.83	22211 E Galas
55	100	25	116.1	114.3	5670	7650	0.81	22211 EK Bearing
55	120	43	252	252	3870	5040	2.35	22311 E Galas
55	120	43	252	252	3870	5040	2.45	22311 E/VA405 Galas
55	120	43	252	252	3870	5040	2.3	22311 EK Bearing
55	120	43	252	252	3870	5040	2.4	22311 EK/VA405 Galas
55	100	31	116.1	114.3		2610	1	Galas BS2-2211-2RS/VT143
55	100	31	116.1	114.3		2610	1	Galas BS2-2211-2RSK/VT143
55	120	49	252	252		2520	2.8	Galas BS2-2311-2RS/VT143
60	130	31	195.3	216	4320	5670	2.05	21312 E Galas
60	130	31	195.3	216	4320	5670	2.05	21312 EK Bearing
60	110	28	143.1	149.4	5040	6750	1.15	22212 E Galas
60	110	28	143.1	149.4	5040	6750	1.15	22212 EK Bearing
60	130	46	292.5	301.5	3600	4770	2.95	22312 E Galas
60	130	46	292.5	301.5	3600	4770	3.1	22312 E/VA405 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
60	130	46	292.5	301.5	3600	4770	2.9	22312 EK Bearing
60	130	46	292.5	301.5	3600	4770	3.05	22312 EK/VA405 Galas
60	110	34	143.1	149.4		2430	1.3	Galas BS2-2212-2RS/VT143
60	110	34	143.1	149.4		2430	1.3	Galas BS2-2212-2RSK/VT143
60	130	53	292.5	301.5		2250	3.4	Galas BS2-2312-2RS/VT143
65	140	33	218.7	243	3870	5400	2.55	21313 E Galas
65	140	33	218.7	243	3870	5400	2.5	21313 EK Bearing
65	120	31	178.2	194.4	4500	6300	1.55	22213 E Galas
65	120	31	178.2	194.4	4500	6300	1.5	22213 EK Bearing
65	140	48	321.3	324	3420	4500	3.5	22313 E Galas
65	140	48	321.3	324	3420	4500	3.75	22313 E/VA405 Galas
65	140	48	321.3	324	3420	4500	3.45	22313 EK Bearing
65	140	48	321.3	324	3420	4500	3.65	22313 EK/VA405 Galas
65	100	35	123.3	155.7	3870	5670	0.94	24013 CC/W33 Galas
65	100	35	123.3	155.7	3870	5670	0.93	24013 CCK30/W33 Galas
65	100	35	123.3	155.7		2340	0.95	Galas 24013-2RS5W/VT143
65	120	38	178.2	194.4		2160	1.6	Galas BS2-2213-2RS/VT143
65	120	38	178.2	194.4		2160	1.6	Galas BS2-2213-2RSK/VT143
65	140	56	321.3	324		2160	4.15	Galas BS2-2313-2RS/VT143
70	150	35	261.9	292.5	3600	5040	3.15	21314 E Galas
70	150	35	261.9	292.5	3600	5040	3.1	21314 EK Bearing
70	125	31	191.7	205.2	4500	6030	1.6	22214 E Galas
70	125	31	191.7	205.2	4500	6030	1.6	22214 EK Bearing
70	150	51	371.7	387	3060	4050	4.3	22314 E Galas
70	150	51	371.7	387	3060	4050	4.55	22314 E/VA405 Galas
70	150	51	371.7	387	3060	4050	4.25	22314 EK Bearing
70	150	51	371.7	387	3060	4050	4.45	22314 EK/VA405 Galas
70	125	38	191.7	205.2		2070	1.8	Galas BS2-2214-2RS/VT143
70	125	38	191.7	205.2		2070	1.8	Galas BS2-2214-2RSK/VT143
70	150	60	371.7	387		1890	5.1	Galas BS2-2314-2RS/VT143

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
75	160	37	261.9	292.5	3600	5040	3.8	21315 E Galas
75	160	37	261.9	292.5	3600	5040	3.75	21315 EK Bearing
75	130	31	195.3	216	4320	5670	1.7	22215 E Galas
75	130	31	195.3	216	4320	5670	1.65	22215 EK Bearing
75	160	55	415.8	427.5	2880	3870	5.25	22315 E Galas
75	160	55	415.8	427.5	2880	3870	5.55	22315 EJA/VA405 Galas
75	160	55	415.8	427.5	2880	3870	5.15	22315 EK Bearing
75	160	55	415.8	427.5	2880	3870	5.45	22315 EKJA/VA405 Galas
75	115	40	162.9	208.8	3420	4770	1.4	24015 CC/W33 Galas
75	115	40	162.9	208.8	3420	4770	1.4	24015 CCK30/W33 Galas
75	115	40	162.9	208.8		2070	1.55	Galas 24015-2RS5/VT143
75	130	38	195.3	216		1980	2.1	Galas BS2-2215-2RS/VT143
75	130	38	195.3	216		1980	2.1	Galas BS2-2215-2RSK/VT143
75	160	64	415.8	427.5		1890	6.5	Galas BS2-2315-2RS/VT143
75	160	64	415.8	427.5		1890	6.5	Galas BS2-2315-2RSK/VT143
80	170	39	297.9	337.5	3420	4770	4.55	21316 E Galas
80	170	39	297.9	337.5	3420	4770	4.5	21316 EK Bearing
80	140	33	218.7	243	3870	5400	2.1	22216 E Galas
80	140	33	218.7	243	3870	5400	2.05	22216 EK Bearing
80	170	58	464.4	477	2700	3600	6.25	22316 E Galas
80	170	58	464.4	477	2700	3600	6.6	22316 EJA/VA405 Galas
80	170	58	464.4	477	2700	3600	6.15	22316 EK Bearing
80	170	58	464.4	477	2700	3600	6.45	22316 EKJA/VA405 Galas
80	140	40	218.7	243		1800	2.4	Galas BS2-2216-2RS/VT143
80	140	40	218.7	243		1800	2.4	Galas BS2-2216-2RSK/VT143
80	170	67	464.4	477		1800	7.2	Galas BS2-2316-2RS/VT143
80	170	67	464.4	477		1800	6.75	Galas BS2-2316-2RSK/VT143
85	180	41	297.9	337.5	3420	4770	5.35	21317 E Galas
85	180	41	297.9	337.5	3420	4770	5.3	21317 EK Bearing
85	150	36	261.9	292.5	3600	5040	2.7	22217 E Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
85	150	36	261.9	292.5	3600	5040	2.65	22217 EK Bearing
85	180	60	519.3	558	2520	3420	7.3	22317 E Galas
85	180	60	519.3	558	2520	3420	7.65	22317 EJA/VA405 Galas
85	180	60	519.3	558	2520	3420	7.65	22317 EJA/VA406 Galas
85	180	60	519.3	558	2520	3420	7.2	22317 EK Bearing
85	180	60	519.3	558	2520	3420	7.5	22317 EKJA/VA405 Bearing
85	150	44	261.9	292.5		1710	3	Galas BS2-2217-2RS/VT143
85	150	44	261.9	292.5		1710	3	Galas BS2-2217-2RSK/VT143
85	180	69	519.3	558		1710	8.2	BS2-2317-2RSK/VT143 Galas
90	190	43	353.7	405	3240	4320	6.25	21318 E Galas
90	190	43	353.7	405	3240	4320	6.2	21318 EK Bearing
90	160	40	297.9	337.5	3420	4770	3.4	22218 E Galas
90	160	40	297.9	337.5	3420	4770	3.35	22218 EK Bearing
90	190	64	573.3	625.5	2340	3240	8.7	22318 E Galas
90	190	64	573.3	625.5	2340	3240	9.05	22318 EJA/VA405 Galas
90	190	64	573.3	625.5	2340	3240	8.5	22318 EK Bearing
90	190	64	573.3	625.5	2340	3240	8.85	22318 EKJA/VA405 Galas
90	160	52.4	334.8	396	2520	3420	4.5	23218 CC/W33 Galas
90	160	52.4	334.8	396	2520	3420	4.4	23218 CCK/W33 Galas
90	160	48	297.9	337.5		1620	3.7	Galas BS2-2218-2RS/VT143
90	160	48	297.9	337.5		1620	3.7	Galas BS2-2218-2RSK/VT143
90	190	73	573.3	625.5		1530	9.8	Galas BS2-2318-2RS5/VT143
90	190	73	573.3	625.5		1530	9.8	Galas BS2-2318-2RS5K/VT143
95	200	45	389.7	441	3060	4050	7.2	21319 E Galas
95	200	45	389.7	441	3060	4050	7.15	21319 EK Bearing
95	170	43	353.7	405	3240	4320	4.15	22219 E Galas
95	170	43	353.7	405	3240	4320	4.1	22219 EK Galas
95	200	67	629.1	688.5	2340	3060	10	22319 E Galas
95	200	67	629.1	688.5	2340	3060	10.5	22319 EJA/VA405 Galas
95	200	67	629.1	688.5	2340	3060	9.9	22319 EK Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
95	200	67	629.1	688.5	2340	3060	10.5	22319 EKJA/VA405 Galas
95	170	51	353.7	405		1530	4.65	Galas BS2-2219-2RS/VT143
100	215	47	389.7	441	3060	4050	8.95	21320 E Galas
100	215	47	389.7	441	3060	4050	8.85	21320 EK Galas
100	180	46	389.7	441	3060	4050	4.95	22220 E Galas
100	180	46	389.7	441	3060	4050	4.85	22220 EK Galas
100	215	73	762.3	855	2160	2700	13	22320 E Galas
100	215	73	762.3	855	2160	2700	13.5	22320 EJA/VA405 Galas
100	215	73	762.3	855	2160	2700	13.5	22320 EJA/VA406 Galas
100	215	73	762.3	855	2160	2700	12.5	22320 EK Galas
100	215	73	762.3	855	2160	2700	13	22320 EKJA/VA405 Galas
100	165	52	346.5	441	2700	3600	4.4	Galas 23120 CC/W33
100	165	52	346.5	441	2700	3600	4.25	23120 CCK/W33 Galas
100	165	52	347.4	441		1530	4.55	Galas 23120-2RS5/VT143
100	180	60.3	448.2	540	2160	3060	6.6	Galas 23220 CC/W33
100	180	60.3	448.2	540	2160	3060	6.45	23220 CCK/W33 Galas
100	180	60.3	449.1	540		1440	6.85	Galas 23220-2RS/VT143
100	180	60.3	449.1	540		1440	6.85	Galas 23220-2RS5/VT143
100	180	60.3		540		18	6.71	Galas 23220/C3W33VA9B1
100	180	60.3		540		18	6.71	Galas 23220/C4W33VA9B1
100	150	50	266.4	373.5	2520	3600	2.95	Galas 24020 CC/W33
100	150	50	266.4	373.5	2520	3600	2.9	24020 CCK30/W33 Galas
100	150	50	266.4	373.5		1530	3.15	Galas 24020-2RS5/VT143
100	165	65	421.2	576	2160	2880	5.45	Galas 24120 CC/W33
100	165	65	421.2	576	2160	2880	5.4	24120 CCK30/W33 Galas
100	165	65	423	576		1530	5.65	Galas 24120-2RS5/VT143
100	180	55	389.7	441		1440	5.5	Galas BS2-2220-2RS5/VT143
100	180	55	389.7	441		1440	5.5	Galas BS2-2220-2RS5K/VT143
100	215	82	762.3	855		540	14	Galas BS2-2320-2CS5/VT143
100	215	82	762.3	855		540	14	Galas BS2-2320-2CS5K/VT143

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
110	200	53	514.8	576	2700	3600	7.05	22222 E Galas
110	200	53	514.8	576	2700	3600	6.9	22222 EK Bearing
110	240	80	890.1	1008	1800	2520	18	22322 E Galas
110	240	80	890.1	1008	1800	2520	18.4	22322 EJA/VA405 Galas
110	240	80	890.1	1008	1800	2520	18.4	22322 EJA/VA406 Galas
110	240	80	890.1	1008	1800	2520	17.5	22322 EK Bearing
110	240	80	890.1	1008	1800	2520	17.4	22322 EKJA/VA405 Galas
110	170	45	293.4	396	3060	3870	3.7	23022 CC/W33 Galas
110	170	45	293.4	396	3060	3870	3.8	23022 CCK/W33 Galas
110	170	45	293.4	396		1350	3.8	Galas 23022-2RS/VT143
110	180	56	405	526.5	2520	3240	5.55	23122 CC/W33 Galas
110	180	56	405	526.5	2520	3240	5.4	23122 CCK/W33 Galas
110	180	56	405.9	526.5		720	5.75	23122-2CS5/VT143 Galas
110	180	56	405.9	526.5		720	5.55	23122-2CS5K/VT143 Galas
110	180	56		526.5		18	5.4	Galas 23122/C3W33VA9B1
110	180	56		526.5		18	5.4	Galas 23122/C4W33VA9B1
110	200	69.8	563.4	688.5	1980	2880	9.35	23222 CC/W33 Galas
110	200	69.8	563.4	688.5	1980	2880	9.85	23222 CCK/W33 Galas
110	200	69.8	564.3	688.5		576	9.55	23222-2CS5/VT143 Galas
110	200	69.8	564.3	688.5		576	9.55	23222-2CS5K/VT143 Galas
110	170	60	393.3	558	2160	3240	4.95	Galas 24022 CC/W33
110	170	60	393.3	558	2160	3240	4.85	24022 CCK30/W33 Galas
110	170	60	394.2	558		1440	5	Galas 24022-2RS5/VT143
110	180	69	485.1	675	1800	2700	6.9	24122 CC/W33 Galas
110	180	69	485.1	675	1800	2700	6.8	24122 CCK30/W33 Galas
110	180	69	486	675		567	7.1	24122-2CS5/VT143 Galas
110	180	69		675		18	7	Galas 24122/C3W33VA9B1
110	180	69		675		18	7	Galas 24122/C4W33VA9B1
110	200	63	514.8	576		1350	7.6	Galas BS2-2222-2RS5/VT143
110	200	63	514.8	576		1350	7.6	Galas BS2-2222-2RS5K/VT143

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
120	215	58	586.8	688.5	2520	3420	8.95	22224 E Galas
120	215	58	586.8	688.5	2520	3420	8.75	22224 EK Bearing
120	260	86	917.1	1008	1800	3510	22.5	22324 CC/C4W33VA991 Galas
120	260	86	917.1	1008	1800	2340	22.5	22324 CC/W33 Galas
120	260	86	917.1	1008	1800	2340	23	22324 CCJA/W33VA405 Galas
120	260	86	917.1	1008	1800	2340	23	22324 CCJA/W33VA406 Galas
120	260	86	917.1	1008	1800	2340	22	22324 CCK/W33 Galas
120	260	86	917.1	1008	1800	2340	22.5	22324 CCKJA/W33VA405 Galas
120	260	86	919.8	1008		540	23	22324-2CS5/VT143 Galas
120	260	86	919.8	1008		540	22.5	22324-2CS5K/VT143 Galas
120	260	86		1008		18	22	Galas 22324/C3W33VA9B1
120	260	86		1008		18	22	Galas 22324/C4W33VA9B1
120	180	46	329.4	450	2880	3600	4.05	23024 CC/W33 Galas
120	180	46	329.4	450	2880	3600	3.9	23024 CCK/W33 Galas
120	180	46	330.3	450		1260	4.2	Galas 23024-2RS5/VT143
120	200	62	480.6	625.5	2340	3060	7.75	23124 CC/W33 Galas
120	200	62	480.6	625.5	2340	3060	7.55	23124 CCK/W33 Galas
120	200	62	481.5	625.5		648	7.55	23124-2CS5/VT143 Galas
120	200	62	481.5	625.5		648	7.4	23124-2CS5K/VT143 Galas
120	215	76	658.8	837	1800	2520	12	23224 CC/W33 Galas
120	215	76	658.8	837	1800	2520	11.5	23224 CCK/W33 Galas
120	215	76	660.6	837		540	12	23224-2CS5/VT143 Galas
120	215	76	660.6	837		540	11.5	23224-2CS5K/VT143 Galas
120	180	60	410.4	603	2160	3060	5.3	Galas 24024 CC/W33
120	180	60	410.4	603	2160	3060	5.2	24024 CCK30/W33 Galas
120	180	60	411.3	603		603	5.45	24024-2CS5/VT143 Galas
120	180	60		603		18	5.36	Galas 24024/C3W33VA9B1
120	180	60		603		18	5.36	Galas 24024/C4W33VA9B1
120	200	80	611.1	855	1710	2340	10	24124 CC/W33 Galas
120	200	80	611.1	855	1710	2340	9.9	24124 CCK30/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
120	200	80	612	855		504	10.3	24124-2CS5/VT143 Galas
120	215	69	586.8	688.5		1260	9.75	Galas BS2-2224-2RS5/VT143
120	215	69	586.8	688.5		1260	9.75	Galas BS2-2224-2RS5K/VT143
130	230	64	682.2	837	2340	3240	11.5	22226 E Galas
130	230	64	682.2	837	2340	3240	11	22226 EK Bearing
130	280	93	1058.4	1188	1620	3240	28	22326 CC/C4W33VA991 Galas
130	280	93	1058.4	1188	1620	2160	28	22326 CC/W33 Galas
130	280	93	1058.4	1188	1620	2160	29	22326 CCJA/W33VA405 Galas
130	280	93	1058.4	1188	1620	2160	29	22326 CCJA/W33VA406 Galas
130	280	93	1058.4	1188	1620	2160	27.5	22326 CCK/W33 Galas
130	280	93	1058.4	1188	1620	2160	28.5	22326 CCKJA/W33VA405 Galas
130	280	93	1060.2	1188		450	29	22326-2CS5/VT143 Galas
130	280	93	1060.2	1188		450	28.5	22326-2CS5K/VT143 Galas
130	220	73	507.6	837	1440	2160	11.5	229750 J/C3R505 Galas
130	200	52	406.8	549	2520	3240	5.8	23026 CC/W33 Galas
130	200	52	406.8	549	2520	3240	5.65	23026 CCK/W33 Galas
130	200	52	406.8	549		720	6	23026-2CS5/VT143 Galas
130	200	52	406.8	549		720	5.8	23026-2CS5K/VT143 Galas
130	210	64	527.4	702	2160	2880	8.5	23126 CC/W33 Galas
130	210	64	527.4	702	2160	2880	8.25	23126 CCK/W33 Galas
130	210	64	528.3	702		603	8.1	23126-2CS5K/VT143 Galas
130	230	80	743.4	954	1710	2340	14	23226 CC/W33 Galas
130	230	80	743.4	954	1710	2340	14	23226 CCK/W33 Galas
130	230	80	745.2	954		477	14.5	23226-2CS5/VT143 Galas
130	230	80	745.2	954		477	14	23226-2CS5K/VT143 Galas
130	200	69	512.1	733.5	1800	2700	7.75	24026 CC/W33 Galas
130	200	69	512.1	733.5	1800	2700	7.65	24026 CCK30/W33 Galas
130	200	69	513	747		540	8.05	24026-2CS5/VT143 Galas
130	200	69		733.5		18	7.93	Galas 24026/C3W33VA9B1
130	200	69		733.5		18	7.93	Galas 24026/C4W33VA9B1

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
130	210	80	629.1	900	1530	2160	10.5	24126 CC/W33 Galas
130	210	80	629.1	900	1530	2160	10.5	24126 CCK30/W33 Galas
130	210	80	630.9	900		477	11	24126-2CS5/VT143 Galas
130	210	80		900		18	10.5	Galas 24126/C3W33VA9B1
130	210	80		900		18	10.5	Galas 24126/C4W33VA9B1
130	230	75	682.2	837		630	11	BS2-2226-2CS5/VT143 Galas
130	230	75	682.2	837		630	10.5	Galas BS2-2226-2CS5K/VT143
140	250	68	668.7	810	2160	2880	14	22228 CC/W33 Galas
140	250	68	668.7	810	2160	2880	14	22228 CCK/W33 Galas
140	250	68	669.6	810		603	14	22228-2CS5/VT143 Galas
140	250	68	669.6	810		603	13.5	22228-2CS5K/VT143 Galas
140	300	102	1221.3	1404	1530	3060	35	22328 CC/C4W33VA991 Galas
140	300	102	1221.3	1404	1530	1980	35	22328 CC/W33 Galas
140	300	102	1221.3	1404	1530	1980	36.5	22328 CCJA/W33VA405 Galas
140	300	102	1221.3	1404	1530	1980	36.5	22328 CCJA/W33VA406 Galas
140	300	102	1221.3	1404	1530	1980	34.5	22328 CCK/W33 Galas
140	300	102	1221.3	1404	1530	1980	35.5	22328 CCKJA/W33VA405 Galas
140	300	102	1223.1	1404		387	36.5	22328-2CS5/VT143 Galas
140	300	102	1223.1	1404		387	35.5	22328-2CS5K/VT143 Galas
140	210	53	436.5	612	2340	3060	6.3	Galas 23028 CC/W33
140	210	53	436.5	612	2340	3060	6.1	23028 CCK/W33 Galas
140	210	53	436.5	612		630	6.55	23028-2CS5/VT143 Galas
140	210	53	436.5	612		630	6.35	23028-2CS5K/VT143 Galas
140	225	68	593.1	810	1980	2520	10.5	23128 CC/W33 Galas
140	225	68	593.1	810	1980	2520	10	23128 CCK/W33 Galas
140	225	68	594	810		567	9.9	23128-2CS5K/VT143 Galas
140	250	88	865.8	1125	1530	2160	18.5	23228 CC/W33 Galas
140	250	88	865.8	1125	1530	2160	18	23228 CCK/W33 Galas
140	250	88	866.7	1125		432	19	23228-2CS5/VT143 Galas
140	250	88	866.7	1125		432	18.5	23228-2CS5K/VT143 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
140	210	69	540	810	1800	2520	8.25	Galas 24028 CC/W33
140	210	69	540	810	1800	2520	8.15	24028 CCK30/W33 Galas
140	210	69	540.9	810		504	8.55	24028-2CS5/VT143 Galas
140	210	69		810		18	8.43	Galas 24028/C3W33VA9B1
140	210	69		810		18	8.43	Galas 24028/C4W33VA9B1
140	225	85	716.4	1044	1440	1980	13	24128 CC/W33 Galas
140	225	85	716.4	1044	1440	1980	12.5	24128 CCK30/W33 Galas
140	225	85	717.3	1044		405	13.5	24128-2CS5/VT143 Galas
140	225	85	717.3	1044		405	13.5	24128-2CS5K30/VT143 Galas
140	225	85		1044		18	12.5	Galas 24128/C3W33VA9B1
140	225	85		1044		18	12.5	Galas 24128/C4W33VA9B1
150	270	73	808.2	972	1980	2700	18	Galas 22230 CC/W33
150	270	73	808.2	972	1980	2700	17.5	22230 CCK/W33 Galas
150	270	73	809.1	972		567	18	22230-2CS5/VT143 Galas
150	270	73	809.1	972		567	17.5	22230-2CS5K/VT143 Galas
150	320	108	1385.1	1584	1440	2790	42	22330 CC/C4W33VA991 Galas
150	320	108	1385.1	1584	1440	1800	42	Galas 22330 CC/W33
150	320	108	1385.1	1584	1440	1800	43.5	22330 CCJA/W33VA405 Galas
150	320	108	1385.1	1584	1440	1800	43.5	22330 CCJA/W33VA406 Galas
150	320	108	1385.1	1584	1440	1800	41	22330 CCK/W33 Galas
150	320	108	1385.1	1584	1440	1800	42.5	22330 CCKJA/W33VA405 Galas
150	320	108	1386.9	1584		360	43.5	22330-2CS5/VT143 Galas
150	320	108	1386.9	1584		360	42.5	22330-2CS5K/VT143 Galas
150	225	56	477.9	675	2160	2880	7.65	Galas 23030 CC/W33
150	225	56	477.9	675	2160	2880	7.4	23030 CCK/W33 Galas
150	225	56	478.8	675		603	7.95	23030-2CS5/VT143 Galas
150	225	56	478.8	675		603	7.7	23030-2CS5K/VT143 Galas
150	225	56		675		18	7.45	Galas 23030/C3W33VA9B1
150	225	56		675		18	7.45	Galas 23030/C4W33VA9B1
150	250	80	794.7	1080	1800	2340	16	23130 CC/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
150	250	80	794.7	1080	1800	2340	15.5	23130 CCK/W33 Galas
150	250	80	795.6	1080		504	16	23130-2CS5/VT143 Galas
150	250	80	795.6	1080		504	15.5	23130-2CS5K/VT143 Galas
150	270	96	1016.1	1314	1440	1980	23.5	Galas 23230 CC/W33
150	270	96	1016.1	1314	1440	1980	23	23230 CCK/W33 Galas
150	270	96	1018.8	1314		387	24.5	23230-2CS5/VT143 Galas
150	270	96	1018.8	1314		387	24	23230-2CS5K/VT143 Galas
150	225	75	612	936	1620	2340	10.5	Galas 24030 CC/W33
150	225	75	612	936	1620	2340	10	24030 CCK30/W33 Galas
150	225	75	612.9	936		477	10.5	24030-2CS5/VT143 Galas
150	225	75		936		18	10.3	Galas 24030/C3W33VA9B1
150	225	75		936		18	10.3	Galas 24030/C4W33VA9B1
150	250	100	948.6	1377	1260	1800	19.5	Galas 24130 CC/W33
150	250	100	948.6	1377	1260	1800	19.5	24130 CCK30/W33 Galas
150	250	100	950.4	1377		360	19.8	24130-2CS5/VT143 Galas
150	250	100	950.4	1377		360	19.5	24130-2CS5K30/VT143 Galas
150	250	100		1377		18	19.8	Galas 24130/C3W33VA9B1
150	250	100		1377		18	19.8	Galas 24130/C4W33VA9B1
160	290	80	938.7	1161	1800	2520	23	22232 CC/W33 Galas
160	290	80	938.7	1161	1800	2520	22.5	22232 CCK/W33 Galas
160	290	80	939.6	1161		540	22.5	22232-2CS5/VT143 Galas
160	290	80	939.6	1161		540	22	22232-2CS5K/VT143 Galas
160	340	114	1512	1764	1350	2610	50	22332 CC/C4W33VA991 Galas
160	340	114	1512	1764	1350	1710	50	22332 CC/W33 Galas
160	340	114	1512	1764	1350	1710	52	22332 CCJA/W33VA405 Galas
160	340	114	1512	1764	1350	1710	52	22332 CCJA/W33VA406 Galas
160	340	114	1512	1764	1350	1710	49	22332 CCK/W33 Galas
160	340	114	1512	1764	1350	1710	51	22332 CCKJA/W33VA405 Galas
160	340	114	1514.7	1764		342	52	22332-2CS5/VT143 Galas
160	340	114	1514.7	1764		342	51	22332-2CS5K/VT143 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
160	340	114		1764		18	49	Galas 22332/C3W33VA9B1
160	340	114		1764		18	49	Galas 22332/C4W33VA9B1
160	240	60	552.6	792	2160	2700	9.25	23032 CC/W33 Galas
160	240	60	552.6	792	2160	2700	9	23032 CCK/W33 Galas
160	240	60	553.5	792		603	9.7	23032-2CS5/VT143 Galas
160	240	60	553.5	792		603	9.4	23032-2CS5K/VT143 Galas
160	270	86	926.1	1233	1710	2160	20	23132 CC/W33 Galas
160	270	86	926.1	1233	1710	2160	19.5	23132 CCK/W33 Galas
160	270	86	927	1260		477	20.5	23132-2CS5/VT143 Galas
160	270	86	927	1260		477	19.9	23132-2CS5K/VT143 Galas
160	290	104	1152.9	1494	1350	1980	29.5	23232 CC/W33 Galas
160	290	104	1152.9	1494	1350	1980	29	23232 CCK/W33 Galas
160	240	80	704.7	1080	1530	2160	12.5	24032 CC/W33 Galas
160	240	80	704.7	1080	1530	2160	12.5	24032 CCK30/W33 Galas
160	240	80	705.6	1080		405	13	24032-2CS5/VT143 Galas
160	240	80		1080		18	12.8	Galas 24032/C3W33VA9B1
160	240	80		1080		18	12.8	Galas 24032/C4W33VA9B1
160	270	109	1104.3	1584	1170	1710	25	24132 CC/W33 Galas
160	270	109	1104.3	1584	1170	1710	24.5	24132 CCK30/W33 Galas
160	270	109	1106.1	1584		342	25	24132-2CS5/VT143 Galas
170	310	86	1064.7	1314	1710	2340	28	22234 CC/W33 Galas
170	310	86	1064.7	1314	1710	2340	27.5	22234 CCK/W33 Galas
170	310	86	1066.5	1314		450	28.5	22234-2CS5/VT143 Galas
170	310	86	1066.5	1314		450	28	22234-2CS5K/VT143 Galas
170	360	120	1676.7	1944	1260	2430	59	22334 CC/C4W33VA991 Galas
170	360	120	1676.7	1944	1260	1620	59	22334 CC/W33 Galas
170	360	120	1676.7	1944	1260	1620	61	22334 CCJA/W33VA405 Galas
170	360	120	1676.7	1944	1260	1620	61	22334 CCJA/W33VA406 Galas
170	360	120	1676.7	1944	1260	1620	58	22334 CCK/W33 Galas
170	360	120	1676.7	1944	1260	1620	59.5	22334 CCKJA/W33VA405 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
170	260	67	670.5	954	1980	2520	12.5	23034 CC/W33 Galas
170	260	67	670.5	954	1980	2520	13	23034 CCK/W33 Galas
170	260	67	671.4	972		567	13	23034-2CS5/VT143 Galas
170	260	67	671.4	972		567	12.6	23034-2CS5K/VT143 Galas
170	280	88	977.4	1350	1620	2160	21.5	23134 CC/W33 Galas
170	280	88	977.4	1350	1620	2160	21	23134 CCK/W33 Galas
170	280	88	979.2	1350		432	22	23134-2CS5/VT143 Galas
170	280	88	979.2	1350		432	21.3	23134-2CS5K/VT143 Galas
170	310	110	1324.8	1737	1260	1800	36	23234 CC/W33 Galas
170	310	110	1324.8	1737	1260	1800	35	23234 CCK/W33 Galas
170	310	110	1328.4	1764		342	35	23234-2CS5K/VT143 Galas
170	260	90	866.7	1314	1440	2160	17	24034 CC/W33 Galas
170	260	90	866.7	1314	1440	2160	17	24034 CCK30/W33 Galas
170	260	90	869.4	1350		360	17.5	24034-2CS5/VT143 Galas
170	260	90		1314		18	17.3	Galas 24034/C3W33VA9B1
170	260	90		1314		18	17.3	Galas 24034/C4W33VA9B1
170	280	109	1143	1674	1080	1620	26.5	24134 CC/W33 Galas
170	280	109	1143	1674	1080	1620	26	24134 CCK30/W33 Galas
170	280	109	1145.7	1674		324	27.5	24134-2CS5/VT143 Galas
180	320	86	1113.3	1404	1620	2340	29.5	22236 CC/W33 Galas
180	320	86	1113.3	1404	1620	2340	29	22236 CCK/W33 Galas
180	320	86	1115.1	1404		477	28.9	22236-2CS5/VT143 Galas
180	320	86	1115.1	1404		477	28.4	22236-2CS5K/VT143 Galas
180	380	126	1869.3	2205	1170	2430	68.5	22336 CC/C4W33VA991 Galas
180	380	126	1869.3	2205	1170	1530	68.5	22336 CC/W33 Galas
180	380	126	1869.3	2205	1170	1530	71.5	22336 CCJA/W33VA405 Galas
180	380	126	1869.3	2205	1170	1530	71.5	22336 CCJA/W33VA406 Galas
180	380	126	1869.3	2205	1170	1530	67	22336 CCK/W33 Galas
180	380	126	1869.3	2205	1170	1530	70	22336 CCKJA/W33VA405 Galas
180	280	74	794.7	1125	1800	2340	16.5	23036 CC/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
180	280	74	794.7	1125	1800	2340	16	23036 CCK/W33 Galas
180	280	74	795.6	1143		504	17	23036-2CS5/VT143 Galas
180	280	74	795.6	1143		504	16.5	23036-2CS5K/VT143 Galas
180	300	96	1136.7	1584	1530	1980	27.5	23136 CC/W33 Galas
180	300	96	1136.7	1584	1530	1980	26.5	23136 CCK/W33 Galas
180	300	96	1137.6	1620		387	28	23136-2CS5/VT143 Galas
180	300	96	1137.6	1620		387	27	23136-2CS5K/VT143 Galas
180	320	112	1401.3	1908	1170	1710	38.5	23236 CC/W33 Galas
180	320	112	1401.3	1908	1170	1710	37.5	23236 CCK/W33 Galas
180	320	112	1404	1908		324	38	23236-2CS5/VT143 Galas
180	320	112	1404	1908		324	37	23236-2CS5K/VT143 Galas
180	250	52	467.1	747	2340	2520	7.8	23936 CC/W33 Galas
180	250	52	467.1	747	2340	2520	7.6	23936 CCK/W33 Galas
180	280	100	1020.6	1557	1350	1980	22.5	24036 CC/W33 Galas
180	280	100	1020.6	1557	1350	1980	22	24036 CCK30/W33 Galas
180	280	100	1022.4	1557		342	23	24036-2CS5/VT143 Galas
180	300	118	1304.1	1944	990	2160	33	24136 CC/C4W33VA991 Galas
180	300	118	1304.1	1944	990	1440	33.5	24136 CC/W33 Galas
180	300	118	1304.1	1944	990	1440	33	24136 CCK30/W33 Galas
180	300	118	1306.8	1944		324	34.5	24136-2CS5/VT143 Galas
190	340	92	1207.8	1530	1530	2160	35.5	22238 CC/W33 Galas
190	340	92	1207.8	1530	1530	2160	35	22238 CCK/W33 Galas
190	340	92	1210.5	1530		432	34.9	22238-2CS5/VT143 Galas
190	340	92	1210.5	1530		432	33.9	22238-2CS5K/VT143 Galas
190	400	132	2008.8	2385	1080	2250	79.5	22338 CC/C4W33VA991 Galas
190	400	132	2008.8	2385	1080	1440	79.5	22338 CC/W33 Galas
190	400	132	2008.8	2385	1080	1440	82.5	22338 CCJA/W33VA405 Galas
190	400	132	2008.8	2385	1080	1440	82.5	22338 CCJA/W33VA406 Galas
190	400	132	2008.8	2385	1080	1440	78	22338 CCK/W33 Galas
190	400	132	2008.8	2385	1080	1440	81	22338 CCKJA/W33VA405 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
190	400	132	2012.4	2385		306	77.7	22338-2CS5/VT143 Galas
190	290	75	824.4	1206	1710	2160	17.5	23038 CC/W33 Galas
190	290	75	824.4	1206	1710	2160	17	23038 CCK/W33 Galas
190	290	75	825.3	1206		468	17	23038-2CS5K/VT143 Galas
190	320	104	1310.4	1872	1350	1800	34.5	23138 CC/W33 Galas
190	320	104	1310.4	1872	1350	1800	33.5	23138 CCK/W33 Galas
190	320	104	1312.2	1872		360	35	23138-2CS5/VT143 Galas
190	320	104	1312.2	1872		360	34	23138-2CS5K/VT143 Galas
190	340	120	1583.1	2160	1170	1620	47	23238 CC/W33 Galas
190	340	120	1583.1	2160	1170	1620	45.5	23238 CCK/W33 Galas
190	340	120	1585.8	2160		306	46.5	23238-2CS5/VT143 Galas
190	340	120	1585.8	2160		306	45.5	23238-2CS5K/VT143 Galas
190	260	52	449.1	720	2160	2340	8.05	23938 CC/W33 Galas
190	260	52	449.1	720	2160	2340	7.8	23938 CCK/W33 Galas
190	290	100	1047.6	1620	1260	1800	23.5	24038 CC/W33 Galas
190	290	100	1047.6	1620	1260	1800	23	24038 CCK30/W33 Galas
190	290	100	1048.5	1620		342	23	24038-2CS5K30/VT143 Galas
190	320	128	1486.8	2250	990	2070	41.5	24138 CC/C4W33VA991 Galas
190	320	128	1486.8	2250	990	1350	41.5	24138 CC/W33 Galas
190	320	128	1486.8	2250	990	1350	41	24138 CCK30/W33 Galas
190	320	128	1489.5	2250		306	43	24138-2CS5/VT143 Galas
200	360	98	1373.4	1737	1440	1980	43	Galas 22240 CC/W33
200	360	98	1373.4	1737	1440	1980	42	22240 CCK/W33 Galas
200	360	98	1376.1	1737		387	42.1	22240-2CS5/VT143 Galas
200	360	98	1376.1	1737		387	41.1	Galas 22240-2CS5K/VT143
200	420	138	2195.1	2610	1080	2160	91	22340 CC/C4W33VA991 Galas
200	420	138	2195.1	2610	1080	1350	91	Galas 22340 CC/W33
200	420	138	2195.1	2610	1080	1350	95	22340 CCJA/W33VA405 Galas
200	420	138	2195.1	2610	1080	1350	95	22340 CCJA/W33VA406 Galas
200	420	138	2195.1	2610	1080	1350	89.5	22340 CCK/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
200	420	138	2195.1	2610	1080	1350	93	22340 CCKJA/W33VA405 Galas
200	420	138	2198.7	2610		306	89.5	22340-2CS5K/VT143 Galas
200	310	82	952.2	1377	1620	1980	22.5	Galas 23040 CC/W33
200	310	82	952.2	1377	1620	1980	22	23040 CCK/W33 Galas
200	310	82	953.1	1377		432	22	23040-2CS5/VT143 Galas
200	310	82	953.1	1377		432	21.3	Galas 23040-2CS5K/VT143
200	340	112	1498.5	2124	1350	1710	42	Galas 23140 CC/W33
200	340	112	1498.5	2124	1350	1710	40.5	23140 CCK/W33 Galas
200	340	112	1501.2	2124		342	43	23140-2CS5/VT143 Galas
200	340	112	1501.2	2124		342	41.5	23140-2CS5K/VT143 Galas
200	360	128	1752.3	2430	1080	2250	56.5	23240 CC/C4W33VA991 Galas
200	360	128	1752.3	2430	1080	1530	56.5	Galas 23240 CC/W33
200	360	128	1752.3	2430	1080	1530	55	23240 CCK/W33 Galas
200	360	128	1755	2430		306	58	23240-2CS5/VT143 Galas
200	360	128	1755	2430		306	56.5	23240-2CS5K/VT143 Galas
200	280	60	585.9	936	1980	2160	11.5	Galas 23940 CC/W33
200	280	60	585.9	936	1980	2160	11	23940 CCK/W33 Galas
200	310	109	1217.7	1908	1170	1710	30	Galas 24040 CC/W33
200	310	109	1217.7	1908	1170	1710	29.5	24040 CCK30/W33 Galas
200	310	109	1218.6	1908		324	29.5	24040-2CS5K30/VT143 Galas
200	340	140	1678.5	2520	900	1890	51.5	24140 CC/C4W33VA991 Galas
200	340	140	1678.5	2520	900	1260	51.5	Galas 24140 CC/W33
200	340	140	1678.5	2520	900	1260	51	24140 CCK30/W33 Galas
200	340	140	1683.9	2520		288	53.5	24140-2CS5/VT143 Galas
200	340	140	1683.9	2520		99	51	24140-2CS5K30/C3HGEA8 Galas
220	400	108	1651.5	2124	1350	1800	59	22244 CC/W33 Galas
220	400	108	1651.5	2124	1350	1800	58	22244 CCK/W33 Galas
220	400	108	1655.1	2124		342	58.2	22244-2CS5/VT143 Galas
220	400	108	1655.1	2124		342	56.7	22244-2CS5K/VT143 Galas
220	460	145	2555.1	3105	900	1890	115	22344 CC/C4W33VA991 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
220	460	145	2555.1	3105	900	1260	115	22344 CC/W33 Galas
220	460	145	2555.1	3105	900	1260	120	22344 CCJA/W33VA405 Galas
220	460	145	2555.1	3105	900	1260	115	22344 CCK/W33 Galas
220	460	145	2555.1	3105	900	1260	118	22344 CCKJA/W33VA405 Galas
220	460	145	2559.6	3105		270	114	22344-2CS5/VT143 Galas
220	460	145	2559.6	3105		270	114	22344-2CS5K/VT143 Galas
220	340	90	1134.9	1674	1440	1800	29.5	23044 CC/W33 Galas
220	340	90	1134.9	1674	1440	1800	28.5	23044 CCK/W33 Galas
220	340	90	1135.8	1674		387	28.9	23044-2CS5/VT143 Galas
220	340	90	1135.8	1674		387	28	23044-2CS5K/VT143 Galas
220	370	120	1699.2	2475	1170	1530	53	23144 CC/W33 Galas
220	370	120	1699.2	2475	1170	1530	51	23144 CCK/W33 Galas
220	370	120	1701.9	2475		324	53.5	23144-2CS5/VT143 Galas
220	370	120	1701.9	2475		324	52	23144-2CS5K/VT143 Galas
220	400	144	2236.5	3105	990	1980	81.5	23244 CC/C4W33VA991 Galas
220	400	144	2236.5	3105	990	1350	79.5	23244 CC/W33 Galas
220	400	144	2236.5	3105	990	1350	77	23244 CCK/W33 Galas
220	400	144	2240.1	3105		270	77	23244-2CS5K/VT143 Galas
220	300	60	594.9	972	1800	1980	12	23944 CC/W33 Galas
220	300	60	594.9	972	1800	1980	12	23944 CCK/W33 Galas
220	300	60	595.8	972		540	2.5	23944-2CS/VT143 Galas
220	340	118	1465.2	2340	1080	2340	39	24044 CC/C4W33VA991 Galas
220	340	118	1465.2	2340	1080	1530	39	24044 CC/W33 Galas
220	340	118	1465.2	2340	1080	1530	38.5	24044 CCK30/W33 Galas
220	340	118	1466.1	2340		306	38.5	24044-2CS5K30/VT143 Galas
220	370	150	1977.3	3015	765	1710	65	24144 CC/C4W33VA991 Galas
220	370	150	1977.3	3015	765	1080	65	24144 CC/W33 Galas
220	370	150	1977.3	3015	765	1080	64.5	24144 CCK30/W33 Galas
220	370	150	1979.1	3015		270	64.5	24144-2CS5K30/VT143 Galas
240	440	120	2032.2	2700	1170	1620	80	22248 CC/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
240	440	120	2032.2	2700	1170	1620	78	22248 CCK/W33 Galas
240	500	155	2906.1	3600	855	1710	145	22348 CC/C4W33VA991 Galas
240	500	155	2906.1	3600	855	1170	145	22348 CC/W33 Galas
240	500	155	2906.1	3600	855	1170	155	22348 CCJA/W33VA405 Galas
240	500	155	2906.1	3600	855	1170	140	22348 CCK/W33 Galas
240	500	155	2906.1	3600	855	1170	152	22348 CCKJA/W33VA405 Galas
240	360	92	1206	1872	1350	1710	32.5	23048 CC/W33 Galas
240	360	92	1206	1872	1350	1710	31.5	23048 CCK/W33 Galas
240	360	92	1206.9	1872		360	31.8	23048-2CS5/VT143 Galas
240	360	92	1206.9	1872		360	30.8	23048-2CS5K/VT143 Galas
240	400	128	1968.3	2880	1080	1440	65	23148 CC/W33 Galas
240	400	128	1968.3	2880	1080	1440	63	23148 CCK/W33 Galas
240	400	128	1971.9	2880		306	66.5	23148-2CS5/VT143 Galas
240	400	128	1971.9	2880		306	64.5	23148-2CS5K/VT143 Galas
240	440	160	2519.1	3420	855	1170	105	23248 CAC/W33 Galas
240	440	160	2737.8	3870	855	1800	105	23248 CC/C4W33VA991 Galas
240	440	160	2737.8	3870	855	1170	105	23248 CC/W33 Galas
240	440	160	2737.8	3870	855	1170	105	23248 CCK/W33 Galas
240	320	60	616.5	1044	1710	1800	13	23948 CC/W33 Galas
240	320	60	616.5	1044	1710	1800	12.5	23948 CCK/W33 Galas
240	360	118	1496.7	2430	990	2250	41.5	24048 CC/C4W33VA991 Galas
240	360	118	1496.7	2430	990	1440	42	Galas 24048 CC/W33
240	360	118	1496.7	2430	990	1440	41.5	24048 CCK30/W33 Galas
240	360	118	1499.4	2430		288	41	24048-2CS5K30/VT143 Galas
240	400	160	2240.1	3510	675	1530	80.5	24148 CC/C4W33VA991 Galas
240	400	160	2240.1	3510	675	990	81	24148 CC/W33 Galas
240	400	160	2240.1	3510	675	990	79.5	24148 CCK30/W33 Galas
240	400	160	2241.9	3510		234	81	24148-2CS5/VT143 Galas
240	400	160	2241.9	3510		234	80	24148-2CS5K30/VT143 Galas
260	480	130	2449.8	3195	1080	1440	110	22252 CAC/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
260	480	130	2449.8	3195	1080	1440	108	22252 CACK/W33 Bearing
260	480	130	2449.8	3195	1080	1440	105	22252 CC/W33 Galas
260	480	130	2449.8	3195	1080	1440	100	22252 CCK/W33 Galas
260	540	165	3312	4095	765	1620	180	22352 CC/C4W33VA991 Galas
260	540	165	3312	4095	765	990	180	22352 CC/W33 Galas
260	540	165	3312	4095	765	990	175	22352 CCK/W33 Galas
260	400	104	1507.5	2295	1170	1530	46.5	23052 CC/W33 Galas
260	400	104	1507.5	2295	1170	1530	45	23052 CCK/W33 Galas
260	400	104	1509.3	2295		324	45.9	23052-2CS5/VT143 Galas
260	400	104	1509.3	2295		324	44.5	23052-2CS5K/VT143 Galas
260	440	144	2311.2	3375	990	1260	91	23152 CAC/W33 Galas
260	440	144	2311.2	3375	990	1260	88	23152 CACK/W33 Bearing
260	440	144	2397.6	3510	990	1260	89.5	23152 CC/W33 Galas
260	440	144	2397.6	3510	990	1260	87	23152 CCK/W33 Galas
260	440	144	2401.2	3510		288	90.5	23152-2CS5/VT143 Galas
260	440	144	2401.2	3510		288	87.5	23152-2CS5K/VT143 Galas
260	480	174	3055.5	4275	765	1080	140	23252 CAC/W33 Galas
260	480	174	3055.5	4275	765	1080	135	23252 CACK/W33 Bearing
260	480	174	3055.5	4275	765	1620	140	23252 CC/C4W33VA991 Galas
260	480	174	3055.5	4275	765	1080	140	Galas 23252 CC/W33
260	480	174	3055.5	4275	765	1080	135	23252 CCK/W33 Galas
260	360	75	949.5	1620	1530	1710	23.5	23952 CC/W33 Galas
260	360	75	949.5	1620	1530	1710	22.5	23952 CCK/W33 Galas
260	400	140	1921.5	3105	900	1980	63.5	24052 CC/C4W33VA991 Galas
260	400	140	1921.5	3105	900	1260	63.5	24052 CC/W33 Galas
260	400	140	1921.5	3105	900	1260	62.5	24052 CCK30/W33 Galas
260	400	140	1924.2	3105		252	62.5	24052-2CS5K30/VT143 Galas
260	440	180	2777.4	4320	603	1350	110	24152 CC/C4W33VA991 Galas
260	440	180	2777.4	4320	603	855	110	24152 CC/W33 Galas
260	440	180	2777.4	4320	603	855	110	24152 CCK30/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
260	440	180	2782.8	4410		216	109	24152-2CS5/VT143 Galas
280	500	130	2515.5	3375	990	1350	109	22256 CC/W33 Galas
280	500	130	2515.5	3375	990	1350	110	22256 CCK/W33 Galas
280	580	175	3742.2	4680	720	1440	220	22356 CC/C4W33VA991 Galas
280	580	175	3742.2	4680	720	990	230	22356 CC/W33 Galas
280	580	175	3742.2	4680	720	990	225	22356 CCK/W33 Galas
280	420	106	1572.3	2475	1170	1440	52.5	23056 CAC/W33 Galas
280	420	106	1572.3	2475	1170	1440	52.5	23056 CACK/W33 Bearing
280	420	106	1617.3	2565	1170	1440	50.5	23056 CC/W33 Galas
280	420	106	1617.3	2565	1170	1440	49	23056 CCK/W33 Galas
280	460	146	2419.2	3600	900	1170	97	23156 CAC/W33 Galas
280	460	146	2419.2	3600	900	1170	94	23156 CACK/W33 Bearing
280	460	146	2505.6	3825	900	1170	96	23156 CC/W33 Galas
280	460	146	2505.6	3825	900	1170	93	23156 CCK/W33 Galas
280	460	146	2509.2	3825		270	97	23156-2CS5/VT143 Galas
280	460	146	2509.2	3825		270	94.8	23156-2CS5K/VT143 Galas
280	500	176	3082.5	4410	720	990	150	23256 CAC/W33 Galas
280	500	176	3082.5	4410	720	990	145	23256 CACK/W33 Bearing
280	500	176	3082.5	4410	720	1530	145	23256 CC/C4W33VA991 Galas
280	500	176	3082.5	4410	720	990	145	23256 CC/W33 Galas
280	500	176	3082.5	4410	720	990	140	23256 CCK/W33 Galas
280	380	75	914.4	1584	1440	1530	24	23956 CC/W33 Galas
280	380	75	914.4	1584	1440	1530	23.5	23956 CCK/W33 Galas
280	420	140	2023.2	3420	855	1890	68	24056 CC/C4W33VA991 Galas
280	420	140	2023.2	3420	855	1260	68	24056 CC/W33 Galas
280	420	140	2023.2	3420	855	1260	67	24056 CCK30/W33 Galas
280	420	140	2025	3420		241.2	66.5	24056-2CS5K30/VT143 Galas
280	460	180	2864.7	4590	567	1170	115	24156 CC/C4W33VA991 Galas
280	460	180	2864.7	4590	567	810	120	24156 CC/W33 Galas
280	460	180	2864.7	4590	567	810	115	24156 CCK30/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
280	460	180	2871	4590		198	115	24156-2CS5/VT143 Galas
280	460	180	2871	4590		198	115	24156-2CS5K30/VT143 Galas
300	540	140	2915.1	3825	900	1260	145	Galas 22260 CC/W33
300	540	140	2915.1	3825	900	1260	140	22260 CCK/W33 Galas
300	460	118	1938.6	3015	1080	1350	71.5	23060 CAC/W33 Galas
300	460	118	1938.6	3015	1080	1350	71.5	23060 CACK/W33 Galas
300	460	118	1997.1	3105	1080	1350	70	Galas 23060 CC/W33
300	460	118	1997.1	3105	1080	1350	68.5	23060 CCK/W33 Galas
300	460	118	1999.8	3105		288	71.5	23060-2CS5/VT143 Galas
300	460	118	1999.8	3105		288	69.5	23060-2CS5K/VT143 Galas
300	500	160	2821.5	4185	855	1080	125	23160 CAC/W33 Galas
300	500	160	2821.5	4185	855	1080	125	23160 CACK/W33 Bearing
300	500	160	3031.2	4590	855	1080	130	Galas 23160 CC/W33
300	500	160	3031.2	4590	855	1080	125	23160 CCK/W33 Galas
300	500	160	3035.7	4590		234	125	23160-2CS5/VT143 Galas
300	500	160	3035.7	4590		234	121	23160-2CS5K/VT143 Galas
300	540	192	3646.8	5265	675	900	190	23260 CAC/W33 Galas
300	540	192	3646.8	5265	675	900	185	23260 CACK/W33 Galas
300	540	192	3646.8	5265	675	1440	185	23260 CC/C4W33VA991 Galas
300	540	192	3646.8	5265	675	900	195	Galas 23260 CC/W33
300	540	192	3646.8	5265	675	900	190	23260 CCK/W33 Galas
300	420	90	1271.7	2250	1260	1440	39	Galas 23960 CC/W33
300	420	90	1271.7	2250	1260	1440	37.5	23960 CCK/W33 Galas
300	460	160	2461.5	4050	765	1080	97	24060 CAC/W33 Galas
300	460	160	2461.5	4050	765	1080	95.5	24060 CACK30/W33 Galas
300	460	160	2538.9	4275	765	1710	96	24060 CC/C4W33VA991 Galas
300	460	160	2538.9	4275	765	1080	96	Galas 24060 CC/W33
300	460	160	2538.9	4275	765	1080	94.5	24060 CCK30/W33 Galas
300	460	160	2544.3	4275		216	95	24060-2CS5/VT143 Galas
300	500	200	3488.4	5670	504	1080	160	24160 CC/C4W33VA991 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
300	500	200	3488.4	5670	504	720	160	Galas 24160 CC/W33
300	500	200	3488.4	5670	504	720	155	24160 CCK30/W33 Galas
300	500	200	3492.9	5670		190.8	156	24160-2CS5/VT143 Galas
300	500	200	3492.9	5670		190.8	153	24160-2CS5K30/VT143 Galas
320	580	150	3337.2	4410	855	1170	165	22264 CC/W33 Galas
320	580	150	3337.2	4410	855	1170	165	22264 CCK/W33 Galas
320	480	121	2113.2	3420	990	1260	76.5	23064 CC/W33 Galas
320	480	121	2113.2	3420	990	1260	74	23064 CCK/W33 Galas
320	540	176	3287.7	4950	765	990	165	23164 CAC/W33 Galas
320	540	176	3287.7	4950	765	990	165	23164 CACK/W33 Bearing
320	540	176	3530.7	5400	765	990	165	23164 CC/W33 Galas
320	540	176	3530.7	5400	765	990	160	23164 CCK/W33 Galas
320	540	176	3536.1	5490		234	165	23164-2CS5/VT143 Galas
320	540	176	3536.1	5490		234	160	23164-2CS5K/VT143 Galas
320	580	208	4146.3	6030	630	855	240	23264 CAC/W33 Galas
320	580	208	4146.3	6030	630	855	235	23264 CACK/W33 Bearing
320	580	208	4146.3	6030	630	1260	250	23264 CC/C4W33VA991 Galas
320	580	208	4146.3	6030	630	855	250	23264 CC/W33 Galas
320	580	208	4146.3	6030	630	855	240	23264 CCK/W33 Galas
320	440	90	1332	2430	1260	1350	41	23964 CC/W33 Galas
320	440	90	1332	2430	1260	1350	39.5	23964 CCK/W33 Galas
320	480	160	2672.1	4590	720	1620	100	24064 CC/C4W33VA991 Galas
320	480	160	2672.1	4590	720	1080	100	Galas 24064 CC/W33
320	480	160	2672.1	4590	720	1080	100	24064 CCK30/W33 Galas
320	540	218	3955.5	6390	450	990	195	24164 CC/C4W33VA991 Galas
320	540	218	3955.5	6390	450	630	195	24164 CC/W33 Galas
320	540	218	3955.5	6390	450	630	190	24164 CCK30/W33 Galas
320	540	218	3956.4	6390		63	200	24164-2CS5K30/C3HGEA8 Galas
340	520	133	2530.8	4095	900	1170	105	23068 CAC/W33 Galas
340	520	133	2530.8	4095	900	1170	105	23068 CACK/W33 Bearing

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
340	520	133	2530.8	4095	900	1170	100	Galas 23068 CC/W33
340	520	133	2530.8	4095	900	1170	98	23068 CCK/W33 Galas
340	580	190	3856.5	5895	720	900	210	23168 CAC/W33 Galas
340	580	190	3856.5	5895	720	900	205	23168 CACK/W33 Bearing
340	580	190	4000.5	6120	720	900	220	23168 CC/W33 Galas
340	580	190	4000.5	6120	720	900	215	23168 CCK/W33 Galas
340	580	190	4006.8	6120		216	210	23168-2CS5/VT143 Galas
340	580	190	4007.7	6120		216	206	23168-2CS5K/VT143 Galas
340	620	224	4825.8	7020	504	720	295	23268 CA/W33 Galas
340	620	224	4825.8	7020	504	720	285	23268 CAK/W33 Galas
340	460	90	1341	2520	1170	1260	43.5	23968 CC/W33 Galas
340	460	90	1341	2520	1170	1260	42	23968 CCK/W33 Galas
340	520	180	3258.9	5580	675	1440	135	24068 CC/C4W33VA991 Galas
340	520	180	3258.9	5580	675	990	140	Galas 24068 CC/W33
340	520	180	3258.9	5580	675	990	135	24068 CCK30/W33 Galas
340	580	243	4938.3	7785	387	567	270	24168 ECAC/W33 Galas
340	580	243	4938.3	7785	387	567	265	24168 Galas ECACK30/W33
340	580	243	4938.3	7785	387	567	255	24168 ECCJ/W33 Galas
340	580	243	4938.3	7785	387	567	250	24168 ECCK30J/W33 Galas
360	650	170	3987	5580	567	765	250	22272 CA/W33 Galas
360	650	170	3987	5580	567	765	245	22272 CAK/W33 Galas
360	540	134	2495.7	4185	855	1080	110	23072 CAC/W33 Galas
360	540	134	2495.7	4185	855	1080	110	23072 CACK/W33 Bearing
360	540	134	2565	4320	855	1080	110	23072 CC/W33 Galas
360	540	134	2565	4320	855	1080	105	23072 CCK/W33 Galas
360	600	192	4063.5	6255	675	900	230	23172 CC/W33 Galas
360	600	192	4063.5	6255	675	900	220	23172 CCK/W33 Bearing
360	600	192	4068.9	6255		198	213	23172-2CS5/VT143 Galas
360	600	192	4068.9	6255		198	206	23172-2CS5K/VT143 Galas
360	650	232	5096.7	7470	477	675	335	23272 CA/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
360	650	232	5096.7	7470	477	675	325	23272 CAK/W33 Galas
360	650	232	5102.1	7470		144	332	23272-2CS5/VT143 Galas
360	650	232	5102.1	7470		144	322	23272-2CS5K/VT143 Galas
360	480	90	1310.4	2475	1080	1170	45	23972 CC/W33 Galas
360	480	90	1310.4	2475	1080	1170	43.5	23972 CCK/W33 Galas
360	540	180	3334.5	5895	630	1440	145	24072 CC/C4W33VA991 Galas
360	540	180	3334.5	5895	630	900	155	24072 CC/W33 Galas
360	540	180	3334.5	5895	630	900	150	24072 CCK30/W33 Galas
360	600	243	5163.3	8370	360	540	270	24172 ECCJ/W33 Galas
360	600	243	5163.3	8370	360	540	270	24172 ECCK30J/W33 Galas
360	600	243	5174.1	8370		216	270	24172-2CS5/VT143 Galas
380	560	135	2612.7	4410	810	1080	110	23076 CAC/W33 Galas
380	560	135	2612.7	4410	810	1080	110	23076 CACK/W33 Bearing
380	560	135	2685.6	4500	810	1080	110	23076 CC/W33 Galas
380	560	135	2685.6	4500	810	1080	110	23076 CCK/W33 Galas
380	560	135	2688.3	4500		234	110	23076-2CS5/VT143 Galas
380	620	194	4104.9	6390	504	900	230	23176 CA/W33 Galas
380	620	194	4104.9	6390	504	900	225	23176 CAK/W33 Galas
380	620	194	4104.9	6390		144	232	23176-2CS5/VT143 Galas
380	620	194	4104.9	6390		144	225	23176-2CS5K/VT143 Galas
380	680	240	5513.4	8235	450	675	375	23276 CA/W33 Galas
380	680	240	5513.4	8235	450	675	365	23276 CAK/W33 Galas
380	520	106	1809.9	3420	990	1080	64.5	23976 CC/W33 Galas
380	520	106	1809.9	3420	990	1080	62.5	23976 CCK/W33 Bearing
380	560	180	3407.4	6120	603	855	150	24076 CC/W33 Galas
380	560	180	3407.4	6120	603	855	150	24076 CCK30/W33 Galas
380	620	243	5342.4	8820	324	477	285	24176 ECA/W33 Galas
380	620	243	5342.4	8820	324	477	280	24176 ECAK30/W33 Galas
380	620	243	5355	8820		54	285	24176-2CS5K30/C3HGEA8 Galas
400	820	243	7048.8	9360	387	675	620	22380 CA/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
400	820	243	7048.8	9360	387	675	610	22380 CAK/W33 Galas
400	600	148	3071.7	5130	765	990	150	23080 CAC/W33 Galas
400	600	148	3071.7	5130	765	990	145	23080 CACK/W33 Galas
400	600	148	3159.9	5265	765	990	145	Galas 23080 CC/W33
400	600	148	3159.9	5265	765	990	140	23080 CCK/W33 Galas
400	600	148	3163.5	5265		216	143	23080-2CS5/VT143 Galas
400	600	148	3163.5	5265		216	143	23080-2CS5K/VT143 Galas
400	650	200	4377.6	6885	477	855	260	23180 CA/W33 Galas
400	650	200	4377.6	6885	477	855	250	23180 CAK/W33 Galas
400	650	200	4377.6	6885		135	255	23180-2CS5/VT143 Galas
400	650	200	4377.6	6885		135	255	Galas 23180-2CS5K/VT143
400	720	256	6192.9	9360	432	603	450	23280 CA/W33 Galas
400	720	256	6192.9	9360	432	603	440	23280 CAK/W33 Galas
400	540	106	1834.2	3510	990	1080	69.5	Galas 23980 CC/W33
400	540	106	1834.2	3510	990	1080	67	23980 CCK/W33 Galas
400	600	200	4056.3	7200	567	810	210	24080 ECCJ/W33 Galas
400	600	200	4056.3	7200	567	810	205	24080 ECCK30J/W33 Galas
400	650	250	5697.9	9540	306	450	320	24180 ECA/W33 Galas
400	650	250	5697.9	9540	306	450	315	24180 ECAK30/W33 Galas
400	650	250	5708.7	9540		49.5	320	Galas 24180-2CS5K30/C3HGEA8
420	620	150	3186.9	5400	540	990	155	23084 CA/W33 Galas
420	620	150	3186.9	5400	540	990	150	23084 CAK/W33 Galas
420	700	224	5327.1	8370	432	810	345	23184 CJ/W33 Galas
420	700	224	5327.1	8370	432	810	335	23184 CKJ/W33 Galas
420	700	224	5327.1	8370		171	350	23184-2CS5/VT143 Galas
420	700	224	5327.1	8370		171	340	23184-2CS5K/VT143 Galas
420	760	272	6909.3	10440	405	567	535	23284 CA/W33 Galas
420	760	272	6909.3	10440	405	567	520	23284 CAK/W33 Galas
420	760	272	6914.7	10440		115.2	535	23284-2CS5/VT143 Galas
420	760	272	6914.7	10440		115.2	519	23284-2CS5K/VT143 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
420	560	106	1874.7	3735	900	990	77	23984 CC/W33 Galas
420	560	106	1874.7	3735	900	990	75	23984 CCK/W33 Galas
420	620	200	4149	7470	477	810	210	24084 ECA/W33 Galas
420	620	200	4149	7470	477	810	205	24084 Galas ECAK30/W33
420	700	280	6819.3	11250	288	432	425	24184 ECA/W33 Galas
420	700	280	6819.3	11250	288	432	420	24184 Galas ECAK30/W33
420	700	280	6831.9	11250		49.5	425	24184-2CS5K30/C3HGEA8 Galas
440	650	157	3447.9	5895	504	900	180	23088 CA/W33 Galas
440	650	157	3447.9	5895	504	900	175	23088 CAK/W33 Galas
440	650	157	3450.6	5895		171	178	23088-2CS5/VT143 Galas
440	720	226	5593.5	9000	405	765	365	23188 CA/W33 Galas
440	720	226	5593.5	9000	405	765	355	23188 CAK/W33 Galas
440	720	226	5598	9000		162	360	23188-2CS5/VT143 Galas
440	720	226	5598	9000		162	348	23188-2CS5K/VT143 Galas
440	790	280	7335	11250	387	540	590	23288 CA/W33 Galas
440	790	280	7335	11250	387	540	575	23288 CAK/W33 Galas
440	600	118	2255.4	4410	855	900	98	23988 CC/W33 Galas
440	600	118	2255.4	4410	855	900	95	23988 CCK/W33 Galas
440	650	212	4488.3	8235	450	765	240	24088 ECA/W33 Galas
440	650	212	4488.3	8235	450	765	240	24088 ECAK30/W33 Galas
440	720	280	6999.3	11880	270	405	445	24188 ECA/W33 Galas
440	720	280	6999.3	11880	270	405	440	24188 ECAK30/W33 Galas
440	720	280	7013.7	11880		45	440	24188-2CS5K30/C3HGEA8 Galas
460	680	163	3658.5	6255	504	855	200	23092 CA/W33 Galas
460	680	163	3658.5	6255	504	855	195	23092 CAK/W33 Galas
460	760	240	6084	9720	387	720	430	23192 CA/W33 Galas
460	760	240	6084	9720	387	720	420	23192 CAK/W33 Galas
460	760	240	6088.5	9720		115.2	427	23192-2CS5/VT143 Galas
460	760	240	6088.5	9720		115.2	414	23192-2CS5K/VT143 Galas
460	830	296	8062.2	12330	360	504	695	23292 CA/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
460	830	296	8062.2	12330	360	504	675	23292 CAK/W33 Galas
460	620	118	2302.2	4500	540	900	105	23992 CA/W33 Galas
460	620	118	2302.2	4500	540	900	99.5	23992 CAK/W33 Galas
460	680	218	4860.9	9000	432	720	275	24092 ECA/W33 Galas
460	680	218	4860.9	9000	432	720	270	24092 ECAK30/W33 Galas
460	760	300	7747.2	13140	252	387	540	24192 ECA/W33 Galas
460	760	300	7747.2	13140	252	387	530	24192 ECAK30/W33 Galas
460	760	300	7767	13140		45	535	24192-2CS5K30/C3HGEA8 Galas
460	580	118	1873.8	4410	567	990	75.5	24892 CAK30MA/W20 Galas
460	580	118	1873.8	4410	567	990	76.5	24892 CAMA/W20 Galas
480	700	165	3596.4	6120	477	855	210	23096 CA/W33 Galas
480	700	165	3596.4	6120	477	855	205	23096 CAK/W33 Galas
480	790	248	6625.8	10800	360	675	485	23196 CA/W33 Galas
480	790	248	6625.8	10800	360	675	470	23196 CAK/W33 Galas
480	790	248	6630.3	10800		153	485	23196-2CS5/VT143 Galas
480	790	248	6630.3	10800		153	469	23196-2CS5K/VT143 Galas
480	870	310	8824.5	13500	342	477	805	23296 CA/W33 Galas
480	870	310	8824.5	13500	342	477	785	23296 CAK/W33 Galas
480	650	128	2691	5130	504	900	125	23996 CA/W33 Galas
480	650	128	2691	5130	504	900	120	23996 CAK/W33 Galas
480	700	218	4971.6	9360	405	675	285	24096 ECA/W33 Galas
480	700	218	4971.6	9360	405	675	280	24096 ECAK30/W33 Galas
480	790	308	8278.2	14040	234	360	595	24196 ECA/W33 Galas
480	790	308	8278.2	14040	234	360	585	24196 ECAK30/W33 Galas
480	790	308	8293.5	14040		40.5	590	24196-2CS5K30/C3HGEA8 Galas
500	720	167	3922.2	7020	450	810	220	Galas 230/500 CA/W33
500	720	167	3922.2	7020	450	810	215	Galas 230/500 CAK/W33
500	830	264	7233.3	11610	342	630	575	231/500 CA/W33 Galas
500	830	264	7233.3	11610	342	630	555	Galas 231/500 CAK/W33
500	920	336	10064.7	15570	324	450	990	232/500 CA/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
500	920	336	10064.7	15570	324	450	965	Galas 232/500 CAK/W33
500	670	128	2670.3	5400	477	855	130	239/500 CA/W33 Galas
500	670	128	2670.3	5400	477	855	125	239/500 CAK/W33 Galas
500	720	218	5199.3	9900	387	630	295	Galas 240/500 ECA/W33
500	720	218	5199.3	9900	387	630	290	Galas 240/500 ECAK30/W33
500	830	325	9110.7	15300	234	342	695	Galas 241/500 ECA/W33
500	830	325	9110.7	15300	234	342	685	Galas 241/500 ECAK30/W33
500	830	325	9130.5	15300		40.5	680	Galas 241/500-2CS5K30/C3HGEA8
500	830	325	9130.5	15300		153	680	241/500-2CS5K30/C3VT143 Galas
530	780	185	4740.3	8370	405	720	300	230/530 CA/W33 Galas
530	780	185	4740.3	8370	405	720	295	230/530 CAK/W33 Galas
530	870	272	7673.4	12600	324	603	640	231/530 CA/W33 Galas
530	870	272	7673.4	12600	324	603	620	231/530 CAK/W33 Galas
530	980	355	11941.2	18360	288	432	1195	232/530 CA/W33 Galas
530	980	355	11941.2	18360	288	432	1165	232/530 CAK/W33 Galas
530	710	136	2977.2	6030	450	810	155	239/530 CA/W33 Galas
530	710	136	2977.2	6030	450	810	150	239/530 CAK/W33 Galas
530	780	250	6434.1	11880	18	45	390	Galas 240/530 SM
530	780	250	6275.7	11880	360	603	410	Galas 240/530 ECA/W33
530	780	250	6275.7	11880	360	603	405	Galas 240/530 ECAK30/W33
530	870	335	9818.1	17100	216	324	780	Galas 241/530 ECA/W33
530	870	335	9818.1	17100	216	324	770	241/530 ECAK30/W33 Galas
530	870	335	9844.2	17100		40.5	780	Galas 241/530-2CS5K30/C3HGEA8
530	650	118	1911.6	4770	477	855	85	248/530 CAK30MA/W20 Galas
560	820	195	5201.1	9180	387	675	350	230/560 CA/W33 Galas
560	820	195	5201.1	9180	387	675	340	Galas 230/560 CAK/W33
560	920	280	8636.4	14400	306	567	745	231/560 CA/W33 Galas
560	920	280	8636.4	14400	306	567	720	231/560 CAK/W33 Galas
560	1030	365	12546	19800	252	387	1355	232/560 CA/W33 Galas
560	1030	365	12546	19800	252	387	1320	232/560 CAK/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
560	750	140	3213.9	6480	405	765	175	239/560 CA/W33 Galas
560	750	140	3213.9	6480	405	765	170	239/560 CAK/W33 Galas
560	820	258	6777	12600	18	45	445	Galas 240/560 SM
560	820	258	6858.9	13140	342	567	465	Galas 240/560 ECA/W33
560	820	258	6858.9	13140	342	567	460	Galas 240/560 ECAK30/W33
560	920	355	11129.4	19440	198	288	915	Galas 241/560 ECJ/W33
560	920	355	11129.4	19440	198	288	900	241/560 ECK30J/W33 Galas
560	920	355	11148.3	19440		36	920	Galas 241/560-2CS5K30/C3HGEA8
600	870	200	5626.8	10260	360	630	400	Galas 230/600 CA/W33
600	870	200	5626.8	10260	360	630	390	Galas 230/600 CAK/W33
600	980	300	9664.2	16200	288	504	900	231/600 CA/W33 Galas
600	980	300	9664.2	16200	288	504	875	Galas 231/600 CAK/W33
600	1090	388	14086.8	22950	234	360	1610	232/600 CA/W33 Galas
600	800	150	3619.8	7470	387	675	215	239/600 CA/W33 Galas
600	800	150	3619.8	7470	387	675	210	239/600 CAK/W33 Galas
600	870	272	7651.8	14670	18	40.5	520	Galas 240/600 SM
600	870	272	7722	15300	306	504	540	Galas 240/600 ECA/W33
600	870	272	7722	15300	306	504	535	Galas 240/600 ECAK30/W33
600	980	375	12169.8	21240	180	270	1100	Galas 241/600 ECA/W33
600	980	375	12169.8	21240	180	270	1085	241/600 ECAK30/W33 Galas
600	980	375	12199.5	21600		36	1095	Galas 241/600-2CS5K30/C3HGEA8
630	920	212	6208.2	11250	342	603	475	230/630 CA/W33 Galas
630	920	212	6208.2	11250	342	603	460	230/630 CAK/W33 Galas
630	1030	315	11340	18720	234	477	1035	231/630 CA/W33 Galas
630	1030	315	11340	18720	234	477	1005	231/630 CAK/W33 Galas
630	780	112	2290.5	5490	387	675	125	238/630 CAMA/W20 Galas
630	850	165	4269.6	8820	360	630	270	239/630 CA/W33 Galas
630	850	165	4269.6	8820	360	630	265	239/630 CAK/W33 Galas
630	920	290	8376.3	15840	18	40.5	625	Galas 240/630 SM
630	920	290	8235	16200	288	477	640	Galas 240/630 ECJ/W33

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
630	920	290	8235	16200	288	477	630	Galas 240/630 ECK30J/W33
630	1030	400	13500.9	24300	171	252	1295	Galas 241/630 ECA/W33
630	1030	400	13500.9	24300	171	252	1280	241/630 ECAK30/W33 Galas
630	1030	400	13535.1	24300		31.5	1295	Galas 241/630-2CS5K30/C3HGEA8
670	980	230	7127.1	13140	306	540	585	230/670 CA/W33 Galas
670	980	230	7127.1	13140	306	540	570	230/670 CAK/W33 Galas
670	1090	336	11790.9	20160	216	450	1235	231/670 CA/W33 Galas
670	1090	336	11790.9	20160	216	450	1200	231/670 CAK/W33 Galas
670	820	112	2378.7	5760	360	630	130	238/670 CAMA/W20 Galas
670	900	170	4631.4	9720	324	603	310	239/670 CA/W33 Galas
670	900	170	4631.4	9720	324	603	300	239/670 CAK/W33 Galas
670	980	308	9369.9	18000	18	40.5	755	Galas 240/670 SM
670	980	308	9391.5	18360	270	450	790	Galas 240/670 ECA/W33
670	980	308	9391.5	18360	270	450	775	240/670 ECAK30/W33 Galas
670	1090	412	14742.9	26100	162	234	1495	Galas 241/670 ECA/W33
670	1090	412	14742.9	26100	162	234	1470	241/670 ECAK30/W33 Galas
670	1090	412	14779.8	26100		31.5	1480	Galas 241/670-2CS5K30/C3HGEA8
670	820	150	3238.2	8550	360	630	175	248/670 CAMA/W20 Galas
710	1030	236	7802.1	14670	270	504	655	230/710 CA/W33 Galas
710	1030	236	7802.1	14670	270	504	635	230/710 CAK/W33 Galas
710	1150	345	13258.8	23400	216	405	1425	231/710 CA/W33 Galas
710	1150	345	13258.8	23400	216	405	1385	231/710 CAK/W33 Galas
710	1280	450	19087.2	31050	180	288	2545	232/710 CA/W33 Galas
710	1280	450	19087.2	31050	180	288	2475	232/710 CAK/W33 Galas
710	870	118	2711.7	6750	324	603	155	238/710 CAMA/W20 Galas
710	950	180	5131.8	10800	306	540	365	239/710 CA/W33 Galas
710	950	180	5131.8	10800	306	540	350	239/710 CAK/W33 Galas
710	1030	315	10049.4	19800	18	36	845	Galas 240/710 SM
710	1030	315	10047.6	20520	234	405	890	Galas 240/710 ECA/W33
710	1030	315	10047.6	20520	234	405	880	Galas 240/710 ECAK30/W33

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
710	1150	438	16141.5	29250	144	216	1750	Galas 241/710 ECA/W33
710	1150	438	16141.5	29250	144	216	1725	241/710 ECAK30/W33 Galas
710	1150	438	16172.1	29250		27	1750	Galas 241/710-2CS5K30/C3HGEA8
710	950	243	6174	14040	270	450	485	249/710 CA/W33 Galas
710	950	243	6174	14040	270	450	480	249/710 CAK30/W33 Galas
750	1090	250	9054.9	16740	252	477	780	230/750 CA/W33 Galas
750	1090	250	9054.9	16740	252	477	755	Galas 230/750 CAK/W33
750	1220	365	14866.2	26100	198	387	1705	231/750 CA/W33 Galas
750	1220	365	14866.2	26100	198	387	1660	231/750 CAK/W33 Galas
750	920	128	3064.5	7650	306	540	190	238/750 CAMA/W20 Galas
750	1000	185	5524.2	11880	288	504	410	239/750 CA/W33 Galas
750	1000	185	5524.2	11880	288	504	395	239/750 CAK/W33 Galas
750	1090	335	11078.1	22050	18	36	1005	Galas 240/750 SM
750	1090	335	11011.5	22500	216	387	1060	Galas 240/750 ECA/W33
750	1090	335	11011.5	22500	216	387	1045	Galas 240/750 ECAK30/W33
750	1220	475	18390.6	33750	135	198	2150	Galas 241/750 ECA/W33
750	1220	475	18390.6	33750	135	198	2115	241/750 ECAK30/W33 Galas
750	1220	475	18436.5	33750		27	2130	Galas 241/750-2CS5K30/C3HGEA8
750	1000	250	6929.1	16200	252	432	555	249/750 CA/W33 Galas
750	1000	250	6929.1	16200	252	432	545	249/750 CAK30/W33 Galas
800	1150	258	9301.5	18000	234	432	880	230/800 CA/W33 Galas
800	1150	258	9301.5	18000	234	432	855	Galas 230/800 CAK/W33
800	1280	375	16229.7	28350	180	360	1880	231/800 CA/W33 Galas
800	1280	375	16229.7	28350	180	360	1825	231/800 CAK/W33 Galas
800	1420	488	22475.7	38700	162	252	3280	Galas 232/800 CAF/W33
800	1420	488	22475.7	38700	162	252	3280	Galas 232/800 CAKF/W33
800	1060	195	5935.5	12870	252	477	475	239/800 CA/W33 Galas
800	1060	195	5935.5	12870	252	477	460	239/800 CAK/W33 Galas
800	1150	345	12102.3	24750	18	36	1140	Galas 240/800 SM
800	1150	345	12087.9	25650	198	360	1200	Galas 240/800 ECA/W33

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
800	1280	475	19428.3	36450	126	180	2335	Galas 241/800 ECA/W33
800	1280	475	19472.4	36450		27	2325	Galas 241/800-2CS5K30/C3HGEA8
800	980	180	4302	11610	288	504	295	Galas 248/800 CAK30MA/W20
800	1060	258	7322.4	17370	216	387	630	249/800 CA/W33 Galas
850	1220	272	10161.9	19440	216	405	1040	230/850 CA/W33 Galas
850	1220	272	10161.9	19440	216	405	1010	230/850 CAK/W33 Galas
850	1500	515	24872.4	43200	144	234	3940	232/850 CAF/W33 Galas
850	1030	136	3493.8	9000	234	477	235	238/850 CAKMA/W20 Bearing
850	1030	136	3493.8	9000	234	477	245	238/850 CAMA/W20 Galas
850	1120	200	6364.8	14040	234	432	540	239/850 CA/W33 Galas
850	1120	200	6364.8	14040	234	432	520	239/850 CAK/W33 Galas
850	1220	365	13570.2	27900	18	36	1355	Galas 240/850 SM
850	1220	365	13664.7	28350	180	324	1420	Galas 240/850 ECA/W33
850	1220	365	13664.7	28350	180	324	1395	Galas 240/850 ECAK30/W33
850	1360	500	21444.3	40500	117	171	2710	Galas 241/850 ECA/W33
850	1360	500	21444.3	40500	117	171	2735	241/850 ECAK30/W33 Galas
850	1360	500	21483	40500		27	2760	Galas 241/850-2CS5K30/C3HGEA8
850	1120	272	8451	20520	198	360	740	249/850 CA/W33 Galas
850	1120	272	8451	20520	198	360	725	249/850 CAK30/W33 Galas
900	1280	280	10801.8	20880	198	360	1170	Galas 230/900 CA/W33
900	1280	280	10801.8	20880	198	360	1140	Galas 230/900 CAK/W33
900	1180	206	6886.8	15300	216	405	605	239/900 CA/W33 Galas
900	1180	206	6886.8	15300	216	405	585	239/900 CAK/W33 Galas
900	1280	375	14593.5	30600	18	36	1515	Galas 240/900 SM
900	1280	375	14566.5	31050	171	306	1580	Galas 240/900 ECA/W33
900	1280	375	14566.5	31050	171	306	1555	Galas 240/900 ECAK30/W33
900	1420	515	22779	44100	108	162	3080	Galas 241/900 ECA/W33
900	1420	515	22779	44100	108	162	3040	241/900 ECAK30/W33 Galas
900	1420	515	22824	44100		22.5	3000	Galas 241/900-2CS5K30/C3HGEA8
900	1090	190	4885.2	13770	216	432	375	Galas 248/900 CAMA/W20

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
950	1360	300	12926.7	25650	180	342	1440	230/950 CA/W33 Galas
950	1360	300	12926.7	25650	180	342	1395	Galas 230/950 CAK/W33
950	1250	224	7745.4	17640	198	387	750	239/950 CA/W33 Galas
950	1250	224	7745.4	17640	198	387	725	239/950 CAK/W33 Galas
950	1360	412	16405.2	34200	18	31.5	1875	Galas 240/950 SM
950	1500	545	25102.8	49500	99	144	3640	Galas 241/950 ECA/W33
950	1500	545	25102.8	49500	99	144	3580	241/950 ECAK30/C3LW33 Galas
950	1500	545	25148.7	49500		22.5	3610	Galas 241/950-2CS5K30/C3HGEA8
950	1250	300	9630.9	23400	162	306	1000	249/950 CA/W33 Galas
950	1250	300	9630.9	23400	162	306	985	249/950 CAK30/W33 Galas
1000	1580	462	23085	43200	126	252	3480	Galas 231/1000 CAF/W33
1000	1580	462	23085	43200	126	252	3380	Galas 231/1000 CAKF/W33
1000	1220	165	4864.5	12870	198	360	415	238/1000 CAKMA/W20 Bearing
1000	1420	412	16732.8	36450	144	252	2120	Galas 240/1000 CAF/W33
1000	1420	412	16732.8	36450	144	252	2085	Galas 240/1000 CAK30F/W33
1000	1580	580	28056.6	55800	90	135	4295	Galas 241/1000 ECA/W33
1000	1580	580	28056.6	55800	90	135	4230	241/1000 ECAK30/C3W33 Galas
1000	1580	580	28112.4	55800		22.5	4245	Galas 241/1000-2CS5K30/C3HGEA8
1000	1320	315	10745.1	26100	153	288	1185	249/1000 CA/W33 Galas
1060	1400	250	10199.7	23400	162	324	1065	239/1060 CAF/W33 Galas
1060	1400	250	10199.7	23400	162	324	1035	239/1060 CAKF/W33 Galas
1060	1500	438	18651.6	40950	135	234	2495	Galas 240/1060 CAF/W33
1060	1500	438	18651.6	40950	135	234	2455	Galas 240/1060 CAK30F/W33
1060	1660	600	28323.9	56700	81	126	4675	241/1060 ECAK30/C3HW33 Galas
1060	1660	600	28323.9	56700		18	4805	Galas 241/1060-2CS6K30/C3HGEA8
1060	1400	335	12018.6	29250	144	252	415	249/1060 CAF/W33 Galas
1060	1400	335	12018.6	29250	144	252	1395	249/1060 CAK30F/W33 Galas
1100	1730	660	31619.7	63900			5735	Galas BS2-8138-2CS6K30/C4LGEA8
1120	1580	462	20642.4	44100	18	31.5	2765	240/1120 SM Bearing
1120	1580	462	20127.6	45000	117	216	2895	240/1120 CAF/W33 Galas

Dimensi asas			Penarafan beban asas		Penilaian kelajuan		Mass	Model
Dimensi asas			Dinamik	Statik	Kelajuan rujukan	Mengehadkan kelajuan	Mass	Bearing No.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Bearing No.
1120	1580	462	20127.6	45000	117	216	2850	Galas 240/1120 CAK30F/W33
1120	1750	630	30614.4	61200	76.5	117	5410	241/1120 ECAK30/C3HW33 Galas
1120	1750	630	30614.4	61200		18	5535	241/1120-2CS6K30/C3HGEA8 Galas
1120	1460	335	12346.2	31050	126	234	1485	249/1120 CAF/W33 Galas
1180	1420	180	6100.2	16740	153	288	575	238/1180 CAKFA/W20 Bearing
1180	1540	272	11768.4	27900	135	270	1350	239/1180 CAF/W33 Galas
1180	1540	272	11768.4	27900	135	270	1310	239/1180 CAKF/W33 Galas
1180	1660	475	22923.9	52650	117	198	3315	Galas 240/1180 CAK30F/W33
1180	1850	670	34439.4	70200	67.5	99	6480	241/1180 ECAK30/C3HW33 Galas
1180	1850	670	34439.4	70200		18	6645	241/1180-2CS6K30/C3HGEA8 Galas
1180	1540	355	14175.9	36450	117	216	1765	249/1180 CAF/W33 Galas
1250	1750	375	19130.4	40500	117	216	2845	Galas 230/1250 CAF/W33
1250	1750	375	19130.4	40500	117	216	2760	Galas 230/1250 CAKF/W33
1250	1950	710	36802.8	79200	63	90	7725	241/1250 ECAK30/C3HW33 Galas
1250	1950	710	36802.8	79200		18	7865	241/1250-2CS6K30/C3HGEA8 Galas
1320	1720	400	16842.6	44100	99	180	2480	249/1320 CAF/W33 Galas
1320	1720	400	16842.6	44100	99	180	2440	249/1320 CAK30F/W33 Galas
1500	1820	315	13215.6	40500	99	198	1725	Galas 248/1500 CAK30FA/W20
1800	2180	375	18246.6	56700	67.5	126	2920	248/1800 CAK30FA/W20 Galas

Kejuruteraan Masa Depan Pergerakan

Mengenai UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China 22205 E Galas suppliers and OEM/ODM 22205 E Galas company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Lagi Mengenai Kami Ukl Bearing Manufacturing Co.,Ltd

0+

tahun

Pengalaman Industri
0+

Kepelbagaian model
0+

Bilangan Pekerja
0

$

Nilai eksport tahunan

Sijil Kepujian

Berita

Mengapa Galas Gelek Silinder NU 309 Cemerlang dalam Reka Bentuk Motor dan Kotak Gear?
04 Jun, 2026
Bawa pulang Utama: NU 309 Bearing Excell sebagai Galas Terapung Untuk reka bentuk motor dan kotak gear di mana pengembangan haba aci adalah kebimbangan kritikal, galas NU 309 ...

BACA LAGI
Cara Memasang Cincin AV Nilos 2206 (Panduan Langkah demi Langkah)
28 May, 2026
Pasang dengan bahagian terbuka menghadap galas Untuk memasang dengan betul 2206 AV Cincin Nilos, letakkannya supaya sisi cembung (terbuka) menghala ke arah laluan perlum...

BACA LAGI
Bagaimana untuk Memilih Galas Bebola Sentuhan Sudut yang Tepat untuk Aplikasi Berkelajuan Tinggi?
21 May, 2026
Memilih komponen guling yang optimum untuk jentera berputar berkelajuan tinggi memerlukan pemahaman yang mendalam tentang keadaan operasi, geometri dalaman dan pengurusan terma. Antara jentera kete...

BACA LAGI
Ketepatan Di Bawah Tekanan: Faktor Utama Memacu Pemilihan Galas Peralatan Perubatan
14 May, 2026
Dalam bidang teknologi perubatan yang berkembang pesat, komponen terkecil pun boleh menentukan kejayaan peranti yang menyelamatkan nyawa. Antaranya, galas peralatan perubatan memainka...

BACA LAGI
