Galas Blok Bantal Asas yang diketuk

Unit Galas Blok Bantal Tapped yang terdiri daripada Perumah Besi Tuang dengan Peranti Anti Putaran dan Galas Bebola Sisipan Skru Set. Galas Sisipan Keluli Chrome menampilkan reka bentuk pengedap slinger, dijajarkan sendiri dan telah dilengkapi dengan dua set skru yang direka khusus yang diletakkan di dalam gelang dalam galas bebola untuk mengetatkan dan melekat pada aci. Galas Blok Bantal Tapped Base digunakan dalam pelbagai aplikasi termasuk Pertanian, Automotif, Pembinaan, Pam, Peralatan Pembuatan, Barangan Sukan dan Pengguna, Perhimpunan Penghantar dan Kipas, Jentera Ladang, HVAC, Kilang Makanan, antara Peralatan Perindustrian yang lain.

Hubungi Kami

PRAV：Galas Blok Bantal SETERUSNYA：4 Bolt Flange Bearing

Spesifikasi
Hubungi Kami

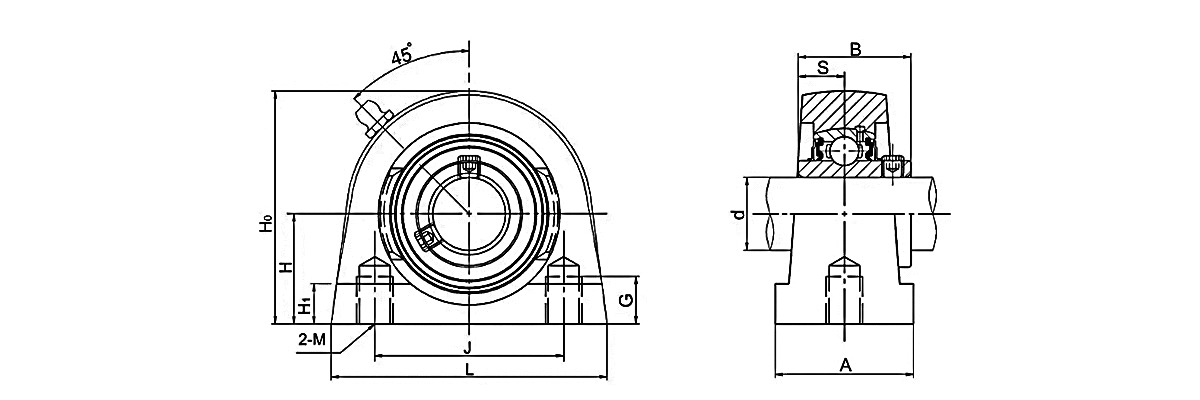

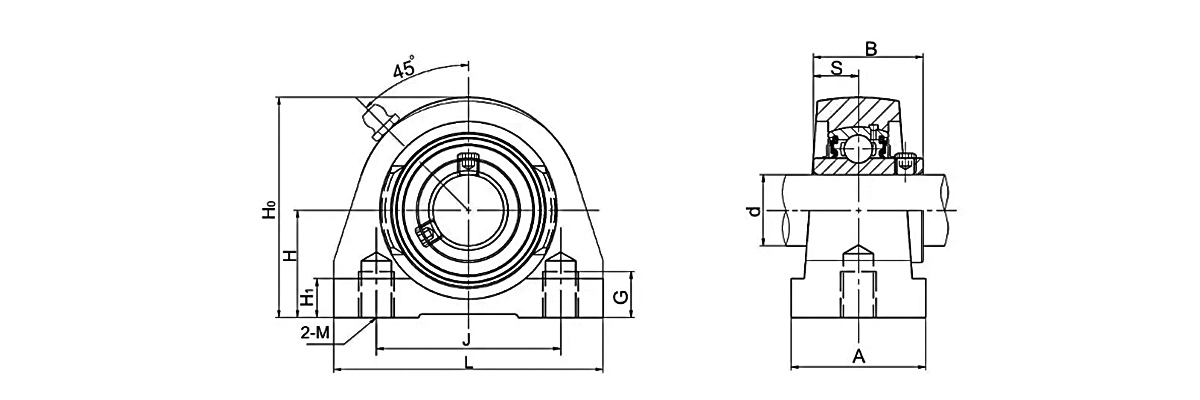

Unit No.	Aci Dia		Dimensi (mm)										Saiz Bolt	Berat badan
	d		H	L	J	A	G	H1	Ho	M	B	S	(mm)	(kg)
	(dalam)	(mm)	H	L	J	A	G	H1	Ho	M	B	S	(mm)	(kg)
UCWPA201		12	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.67
UCWPA202		15	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.63
UCWPA203		17	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.62
UCPA201		12	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.67
UCPA201-8	1/2		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.67
UCPA202		15	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.63
UCPA202-9	16/9		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.63
UCPA202-10	5/8		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.63
UCPA203		17	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.62
UCPA203-11	16/11		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.62
UCPA204		20	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.6
UCPA204-12	3/4		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.6
UCPA205		25	36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-14	7/8		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-15	15/16		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-16	1		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA206		30	42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-17	1-1/16		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-18	1-1/8		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-19	1-3/16		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-20	1-1/4		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA207		35	47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-20	1-1/4		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-21	1-5/16		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-22	1-3/8		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-23	1-7/16		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA208		40	49.2	116	84	54	20	13	100	M14	49.2	19	M14	1.9
UCPA208-24	1-1/2		49.2	116	84	54	20	13	100	M14	49.2	19	M14	1.9
UCPA208-25	1-16/9		49.2	116	84	54	20	13	100	M14	49.2	19	M14	1.9
UCPA209		45	54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA209-26	1-5/8		54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA209-27	1-16/11		54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA209-28	1-3/4		54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA210		50	57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA210-30	1-7/8		57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA210-31	1-15/16		57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA210-32	2		57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA211		55	63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA211-32	2		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA211-34	2-1/8		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA211-35	2-3/16		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA212		60	69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-36	2-1/4		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-38	2-3/8		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-39	2-7/16		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24

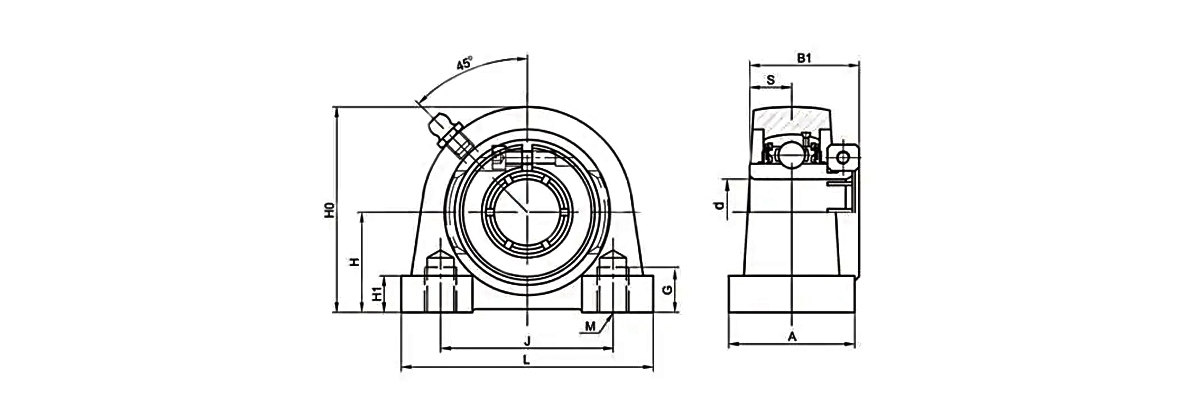

Unit No.	Aci Dia		Dimensi (mm)										Saiz Bolt	Berat badan
	d		H	L	J	A	G	H1	Ho	M	B1	S	(mm)	(kg)
	(dalam)	(mm)	H	L	J	A	G	H1	Ho	M	B1	S	(mm)	(kg)
UEPA204		20	30.2	76	52	38	13	11	62	M10	33	12.7	M10	0.65
UEPA204-12	3/4		30.2	76	52	38	13	11	62	M10	33	12.7	M10	0.65
UEPA205		25	36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA205-14	7/8		36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA205-15	15/16		36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA205-16	1		36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA206		30	42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-17	1-1/16		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-18	1-1/8		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-19	1-3/16		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-20	1-1/4		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA207		35	47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-20	1-1/4		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-21	1-5/16		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-22	1-3/8		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-23	1-7/16		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA208		40	49.2	116	84	54	20	13	100	M14	50.2	19	M14	2.12
UEPA208-24	1-1/2		49.2	116	84	54	20	13	100	M14	50.2	19	M14	2.12
UEPA208-25	1-16/9		49.2	116	84	54	20	13	100	M14	50.2	19	M14	2.12
UEPA209		45	54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA209-26	1-5/8		54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA209-27	1-16/11		54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA209-28	1-3/4		54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA210		50	57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA210-30	1-7/8		57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA210-31	1-15/16		57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA210-32	2		57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA211		55	63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA211-32	2		63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA211-34	2-1/8		63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA211-35	2-3/16		63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA212		60	69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7
UEPA212-36	2-1/4		69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7
UEPA212-38	2-3/8		69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7
UEPA212-39	2-7/16		69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7

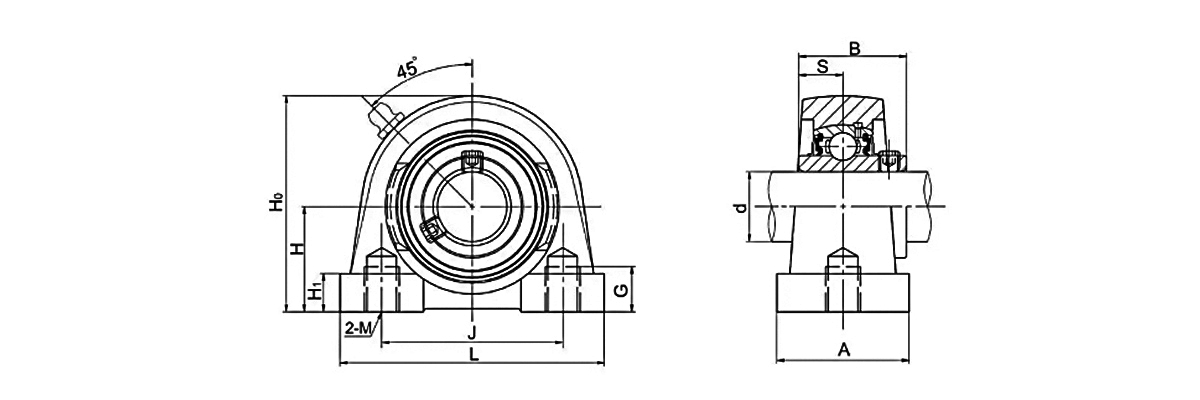

Unit No.	Aci Dia		Dimensi (mm)										Saiz Bolt	Berat badan
	d		H	L	J	A	M	G	Ho	H1	B	S	(mm)	(kg)
	(dalam)	(mm)	H	L	J	A	M	G	Ho	H1	B	S	(mm)	(kg)
UCPW201		12	33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.8
UCPW201-8	1/2		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.8
UCPW202		15	33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.79
UCPW202-9	16/9		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.79
UCPW202-10	5/8		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.79
UCPW203		17	33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.77
UCPW203-11	16/11		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.77
UCPW204		20	33.3	65	50.8	32	M8	13	64	13	31	12.7	MS	0.76
UCPW204-12	3/4		33.3	65	50.8	32	M8	13	64	13	31	12.7	MS	0.76
UCPW205		25	36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW205-14	7/8		36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW205-15	15/16		36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW205-16	1		36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW206		30	42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-17	1-1/16		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-18	1-1/8		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-19	1-3/16		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-20	1-1/4		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW207		35	47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-20	1-1/4		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-21	1-5/16		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-22	1-3/8		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-23	1-7/16		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW208		40	49.2	116	88.9	48	M12	19	99	15	49.2	19	M12	2.28
UCPW208-24	1-1/2		49.2	116	88.9	48	M12	19	99	15	49.2	19	M12	2.28
UCPW208-25	1-16/9		49.2	116	88.9	48	M12	19	99	15	49.2	19	M12	2.28
UCPW209		45	53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW209-26	1-5/8		53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW209-27	1-16/11		53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW209-28	1-3/4		53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW210		50	57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28
UCPW210-30	1-7/8		57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28
UCPW210-31	1-15/16		57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28
UCPW210-32	2		57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28

Unit No.	Aci Dia		Dimensi (mm)										Saiz Bolt	Berat badan
	d		H	L	J	A	M	G	H1	Ho	B	S	(mm)	(kg)
	(dalam)	(mm)	H	L	J	A	M	G	H1	Ho	B	S	(mm)	(kg)
UCPG201		12	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.8
UCPG201-8	1/2		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.8
UCPG202		15	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.79
UCPG202-9	16/9		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.79
UCPG202-10	5/8		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.79
UCPG203		17	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.77
UCPG203-11	16/11		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.77
UCPG204		20	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.76
UCPG204-12	3/4		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.76
UCPG205		25	36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG205-14	7/8		36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG205-15	15/16		36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG205-16	1		36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG206		30	42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-17	1-1/16		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-18	1-1/8		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-19	1-3/16		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-20	1-1/4		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG207		35	47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-20	1-1/4		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-21	1-5/16		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-22	1-3/8		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-23	1-7/16		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG208		40	49.2	110	78	54	M12	20	14	98	49.2	19	M12	2.28
UCPG208-24	1-1/2		49.2	110	78	54	M12	20	14	98	49.2	19	M12	2.28
UCPG208-25	1-16/9		49.2	110	78	54	M12	20	14	98	49.2	19	M12	2.28
UCPG209		45	53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG209-26	1-5/8		53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG209-27	1-16/11		53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG209-28	1-3/4		53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG210		50	57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28
UCPG210-30	1-7/8		57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28
UCPG210-31	1-15/16		57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28
UCPG210-32	2		57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28

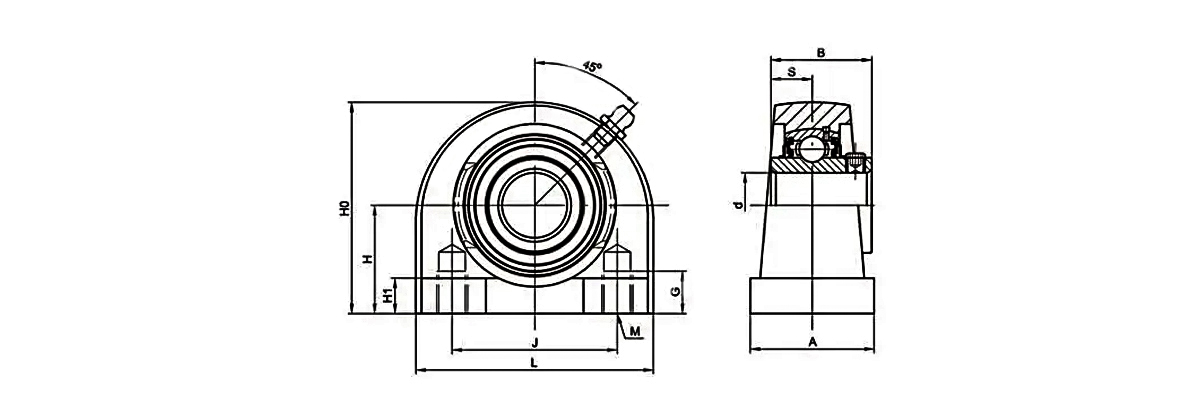

Unit No.	Aci Dia		Dimensi (mm)										Berat badan
	d		H	L	J	A	H1	H0	G	M	S	B	(kg)
	(dalam)	(mm)
UCTB201		12	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.77
UCTB201-8	1/2
UCTB202		15	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.75
UCTB202-9	16/9
UCTB202-10	5/8
UCTB203		17	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.74
UCTB203-11	16/11
UCTB204		20	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.73
UCTB204-12	3/4
UCTB205		25	36.5	76	50.8	38	12	71	13	3/8-16UNC	14.3	34.1	0.83
UCTB205-14	7/8
UCTB205-15	15/16
UCTB205-16	1
UCTB206		30	42.9	102	76.2	38	12	86	16	16/7-14UNC	15.9	38.1	1.36
UCTB206-17	1-1/16
UCTB206-18	1-1/8
UCTB206-19	1-3/16
UCTB206-20	1-1/4
UCTB207		35	47.6	108	82.6	48	13	95	19	1/2-13UNC	17.5	42.9	1.83
UCTB207-20	1-1/4
UCTB207-21	1-5/16
UCTB207-22	1-3/8
UCTB207-23	1-7/16
UCTB208		40	49.2	117	88.9	48	13	100	19	1/2-13UNC	19	49.2	2.13
UCTB208-24	1-1/2
UCTB208-25	1-16/9
UCTB209		45	54	127	95.3	51	14	108	20	1/2-13UNC	19	49.2	2.75
UCTB209-26	1-5/8
UCTB209-27	1-16/11
UCTB209-28	1-3/4
UCTB210		50	57.2	140	101.6	51	14	117	22	5/8-11UNC	19	51.9	3.08
UCTB210-30	1-7/8
UCTB210-31	1-15/16
UCTB210-32	2
UCTB211		55	57.2	140	101.6	51	14	117.5	22	5/8-11UNC	22.2	55.6	3.37
UCTB211-32	2
UCTB211-34	2-1/8
UCTB211-35	2-3/16

Kejuruteraan Masa Depan Pergerakan

Mengenai UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Galas Blok Bantal Asas yang diketuk suppliers and OEM/ODM Galas Blok Bantal Asas yang diketuk company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Lagi Mengenai Kami Ukl Bearing Manufacturing Co.,Ltd

0+

tahun

Pengalaman Industri
0+

Kepelbagaian model
0+

Bilangan Pekerja
0

$

Nilai eksport tahunan

Sijil Kepujian

Berita

Mengapa Galas Gelek Silinder NU 309 Cemerlang dalam Reka Bentuk Motor dan Kotak Gear?
04 Jun, 2026
Bawa pulang Utama: NU 309 Bearing Excell sebagai Galas Terapung Untuk reka bentuk motor dan kotak gear di mana pengembangan haba aci adalah kebimbangan kritikal, galas NU 309 ...

BACA LAGI
Cara Memasang Cincin AV Nilos 2206 (Panduan Langkah demi Langkah)
28 May, 2026
Pasang dengan bahagian terbuka menghadap galas Untuk memasang dengan betul 2206 AV Cincin Nilos, letakkannya supaya sisi cembung (terbuka) menghala ke arah laluan perlum...

BACA LAGI
Bagaimana untuk Memilih Galas Bebola Sentuhan Sudut yang Tepat untuk Aplikasi Berkelajuan Tinggi?
21 May, 2026
Memilih komponen guling yang optimum untuk jentera berputar berkelajuan tinggi memerlukan pemahaman yang mendalam tentang keadaan operasi, geometri dalaman dan pengurusan terma. Antara jentera kete...

BACA LAGI
Ketepatan Di Bawah Tekanan: Faktor Utama Memacu Pemilihan Galas Peralatan Perubatan
14 May, 2026
Dalam bidang teknologi perubatan yang berkembang pesat, komponen terkecil pun boleh menentukan kejayaan peranti yang menyelamatkan nyawa. Antaranya, galas peralatan perubatan memainka...

BACA LAGI
