Ambil Unit Galas

Model galas TAKE UP termasuk: T200 (beban standard), TX (beban sederhana), T300 (beban berat), dan ST200 (jenis alur lebar). Beban Standard
Produk ini ialah unit galas dipasang yang terdiri daripada perumah jenis T dan galas sisipan. Perumahan boleh didapati dalam reka bentuk besi tuang, besi mulur, plastik dan keluli tahan karat. Unit perumahan UC mungkin menggunakan keluli krom atau bahan keluli tahan karat. Pemilihan bahan khusus bergantung pada senario aplikasi unit galas, dengan perumah besi tuang dipasangkan dengan galas dalaman keluli krom menjadi konfigurasi pasaran arus perdana. Keluli tahan karat dan plastik TAKE UP Bearing biasanya digunakan dalam industri kimia dan makanan.

Contact Us Hubungi Kami
PRAV：2 Bolt Flange Bearing SETERUSNYA：Unit Galas Kartrij Bebibir
  • Spesifikasi
  • Hubungi Kami

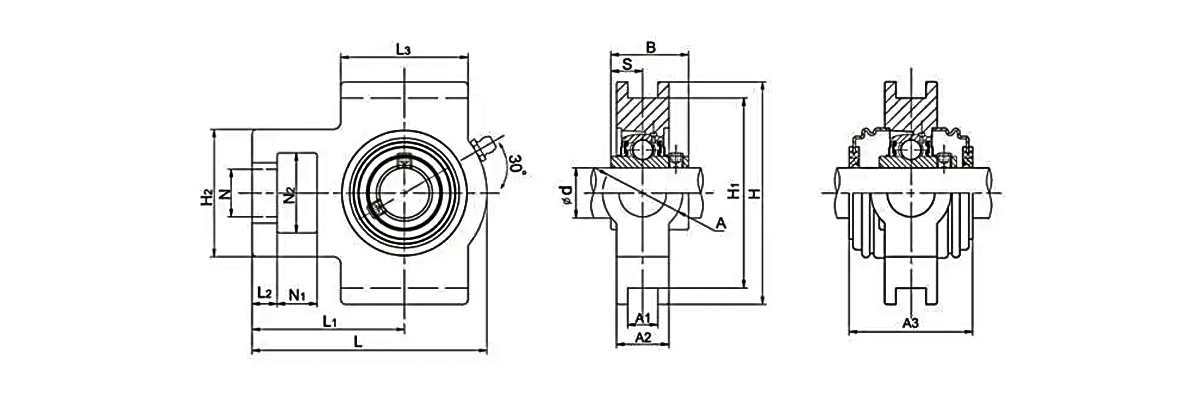

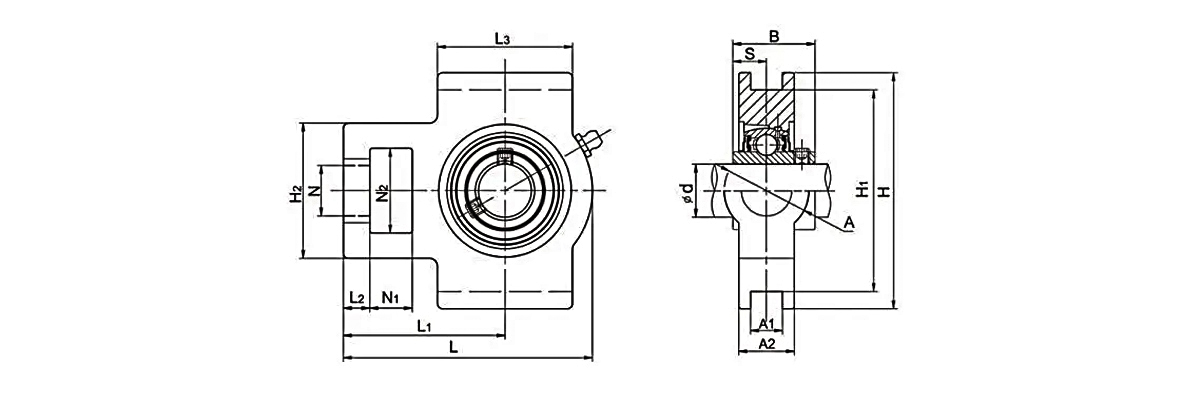

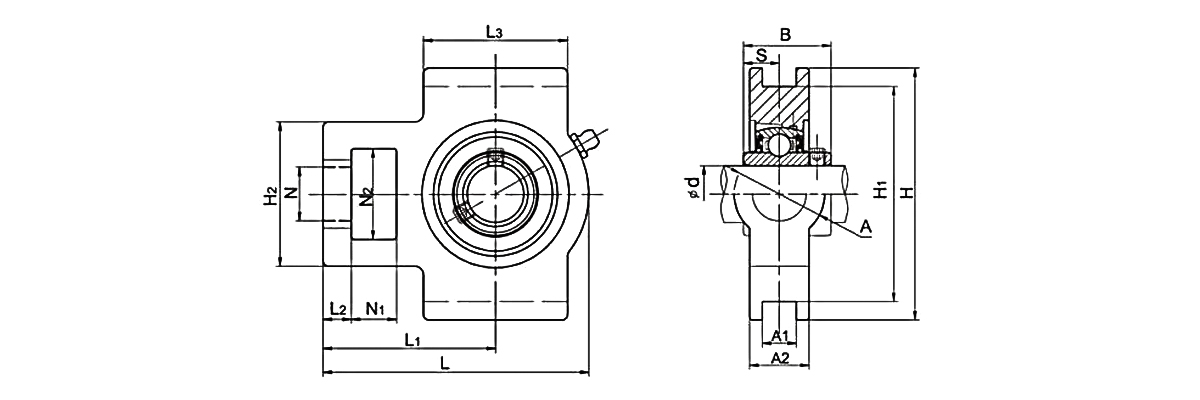

Unit No. Aci Dia Dimensi(mm) Berat badan
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B S A3 (kg)
(dalam) (mm)
UCWT201 12 15 9 46 31 18 46 12 70 82 88 30 21 58 27.4 11.5 - 0.52
UCWT202 15 15 9 46 31 18 46 12 70 82 88 30 21 58 27.4 11.5 - 0.52
UCWT203 17 15 9 46 31 18 46 12 70 82 88 30 21 58 27.4 11.5 - 0.52
UCT201 12 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.8
UCT201-8 1/2 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.8
UCT202 15 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.79
UCT202-9 16/9 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.79
UCT202-10 5/8 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.79
UCT203 17 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.78
UCT203-11 16/11 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.78
UCT204 20 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 46.4 0.72
UCT204-12 3/4 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 46.4 0.72
UCT205 25 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT205-14 7/8 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT205-15 116/5 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT205-16 1/1 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT206 30 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-17 16/1 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-18 1/8 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-19 16/3 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-20 1/4 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT207 35 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-20 1/4 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-21 16/5 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-22 3/8 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-23 16/7 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT208 40 19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 68.2 2.28
UCT208-24 1/2 19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 68.2 2.28
UCT208-25 16/9 19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 68.2 2.28
UCT209 45 19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT209-26 5/8 19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT209-27 16/11 19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT209-28 3/4 19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT210 50 19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT210-30 7/8 19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT210-31 1-116/5 19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT210-32 1/2 19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT211 55 25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT211-32 1/2 25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT211-34 1/8 25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT211-35 16/3 25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT212 60 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT212-36 1/4 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT212-38 3/8 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT212-39 16/7 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT213 65 32 21 111 70 41 121 26 151 167 224 70 44 137 65.1 25.4 89 6.7
UCT213-40 1/2 32 21 111 70 41 121 26 151 167 224 70 44 137 65.1 25.4 89 6.7
UCT214 70 32 21 111 70 41 121 26 151 167 224 70 46 137 74.6 30.2 98 6.9
UCT214-44 3/4 32 21 111 70 41 121 26 151 167 224 70 46 137 74.6 30.2 98 6.9
UCT215 75 32 21 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 97 7.4
UCT215-47 2-116/5 32 21 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 97 7.4
UCT215-48 1/3 32 21 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 97 7.4
UCT216 80 32 21 111 70 41 121 26 165 184 235 70 51 140 82.6 33.3 110 8.1
UCT217 85 38 29 124 73 48 157 30 173 198 260 73 54 162 85.7 34.1 114.2 11
UCT217-52 1/4 38 29 124 73 48 157 30 173 198 260 73 54 162 85.7 34.1 114.2 11
UCT218 90 40 30 130 80 48 140 30 190 215 275 80 55 170 96 39.7 - 12.2
UCT218-56 1/4 40 30 130 80 48 140 30 190 215 275 80 55 170 96 39.7 - 12.2

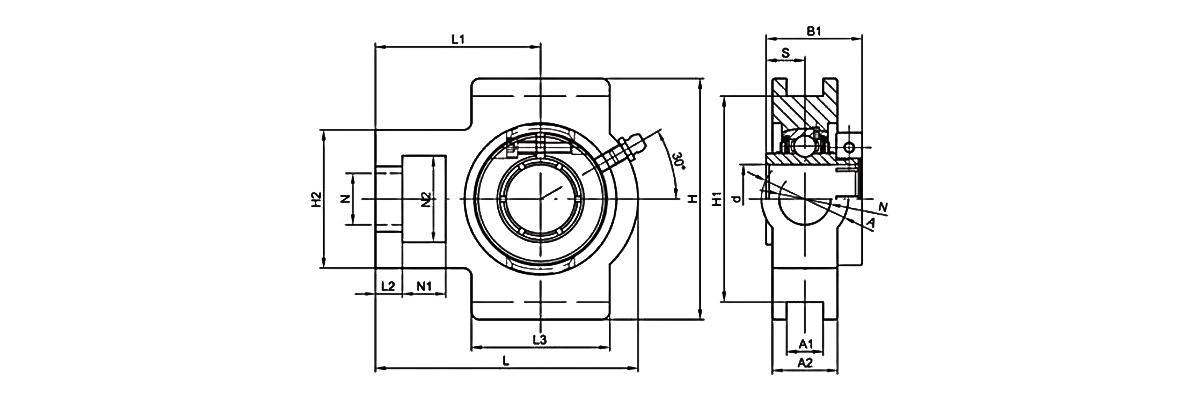

Unit No. Aci Dia Dimensi (mm) Berat badan (kg)
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B1 s
(dalam) (mm)
NAT201S 12 15 9 46 31 18 46 12 70 82 88 30 21 58 37.3 13.9 0.78
NAT201-8S 1/2 15 9 46 31 18 46 12 70 82 88 30 21 58 37.3 13.9 0.78
NAT202S 15 15 9 46 31 18 46 12 70 82 88 30 21 58 37.3 13.9 0.78
NAT202-10S 5/8 15 9 46 31 18 46 12 70 82 88 30 21 58 37.3 13.9 0.78
NAT203S 17 15 9 46 31 18 46 12 70 82 88 30 21 58 37.3 13.9 0.78
NAT203-11S 16/11 15 9 46 31 18 46 12 70 82 88 30 21 58 37.3 13.9 0.78
NAT201 12 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT201-8 1/2 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT202 15 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT202-10 5/8 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT203 17 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT203-11 16/11 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT204 20 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT204-12 3/4 16 10 51 32 19 51 12 76 89 94 32 21 61 43.5 17 0.87
NAT205 25 16 10 51 32 19 51 12 76 89 97 32 24 62 44.3 17.4 0.92
NAT205-14 7/8 16 10 51 32 19 51 12 76 89 97 32 24 62 44.3 17.4 0.92
NAT205-15 116/5 16 10 51 32 19 51 12 76 89 97 32 24 62 44.3 17.4 0.92
NAT205-16 1/1 16 10 51 32 19 51 12 76 89 97 32 24 62 44.3 17.4 0.92
NAT206 30 16 10 56 37 22 57 12 89 102 113 37 28 70 48.3 18.2 1.39
NAT206-18 1/8 16 10 56 37 22 57 12 89 102 113 37 28 70 48.3 18.2 1.39
NAT206-19 16/3 16 10 56 37 22 57 12 89 102 113 37 28 70 48.3 18.2 1.39
NAT206-20 1/4 16 10 56 37 22 57 12 89 102 113 37 28 70 48.3 18.2 1.39
NAT207 35 16 13 64 37 22 64 12 89 102 129 37 30 78 51.1 18.8 1.83
NAT207-20 1/4 16 13 64 37 22 64 12 89 102 129 37 30 78 51.1 18.8 1.83
NAT207-21 16/5 16 13 64 37 22 64 12 89 102 129 37 30 78 51.1 18.8 1.83
NAT207-22 3/8 16 13 64 37 22 64 12 89 102 129 37 30 78 51.1 18.8 1.83
NAT207-23 16/7 16 13 64 37 22 64 12 89 102 129 37 30 78 51.1 18.8 1.83
NAT208 40 19 16 83 49 29 83 16 102 114 144 49 33 88 56.3 21.4 2.64
NAT208-24 1/2 19 16 83 49 29 83 16 102 114 144 49 33 88 56.3 21.4 2.64
NAT208-25 16/9 19 16 83 49 29 83 16 102 114 144 49 33 88 56.3 21.4 2.64
NAT209 45 19 16 83 49 29 83 16 102 117 144 49 35 87 56.3 21.4 2.67
NAT209-26 5/8 19 16 83 49 29 83 16 102 117 144 49 35 87 56.3 21.4 2.67
NAT209-27 16/1 19 16 83 49 29 83 16 102 117 144 49 35 87 56.3 21.4 2.67
NAT209-28 3/4 19 16 83 49 29 83 16 102 117 144 49 35 87 56.3 21.4 2.67
NAT210 50 19 16 83 49 29 86 16 102 117 149 49 37 90 62.7 24.6 2.81
NAT210-30 7/8 19 16 83 49 29 86 16 102 117 149 49 37 90 62.7 24.6 2.81
NAT210-31 1-116/5 19 16 83 49 29 86 16 102 117 149 49 37 90 62.7 24.6 2.81
NAT211 55 25 19 102 64 35 95 22 130 146 171 64 38 106 71.3 27.7 4.27
NAT211-32 1/2 55 25 19 102 64 35 95 22 130 146 171 64 38 106 71.3 27.7 4.27
NAT211-34 1/8 55 25 19 102 64 35 95 22 130 146 171 64 38 106 71.3 27.7 4.27
NAT211-35 16/3 55 25 19 102 64 35 95 22 130 146 171 64 38 106 71.3 27.7 4.27
NAT212 60 32 19 102 64 35 102 22 130 146 194 64 42 119 77.7 30.9 5.26
NAT212-36 1/4 32 19 102 64 35 102 22 130 146 194 64 42 119 77.7 30.9 5.26
NAT212-38 3/8 32 19 102 64 35 102 22 130 146 194 64 42 119 77.7 30.9 5.26
NAT212-39 16/7 32 19 102 64 35 102 22 130 146 194 64 42 119 77.7 30.9 5.26
NAT213 65 32 21 111 70 41 121 26 151 167 224 70 44 137 85.7 34.1 7.55
NAT213-40 1/2 32 21 111 70 41 121 26 151 167 224 70 44 137 85.7 34.1 7.55
NAT214 70 32 21 111 70 41 121 26 151 167 224 70 46 137 85.7 34.1 7.62
NAT214-44 3/4 32 21 111 70 41 121 26 151 167 224 70 46 137 85.7 34.1 7.62
NAT215 75 32 21 111 70 41 121 26 151 167 232 70 48 140 92.1 37.3 8.13
NAT215-47 2-116/5 32 21 111 70 41 121 26 151 167 232 70 48 140 92.1 37.3 8.13
NAT215-48 1/3 32 21 111 70 41 121 26 151 167 232 70 48 140 92.1 37.3 8.13
NAT216 80 32 21 111 70 41 121 26 165 184 235 70 51 140 95.2 37.3 8.53
NAT217 85 38 29 124 73 48 157 30 173 198 260 73 54 162 73.2 23.4 12.03
NAT217-52 1/4 38 29 124 73 48 157 30 173 198 260 73 54 162 73.2 23.4 12.03

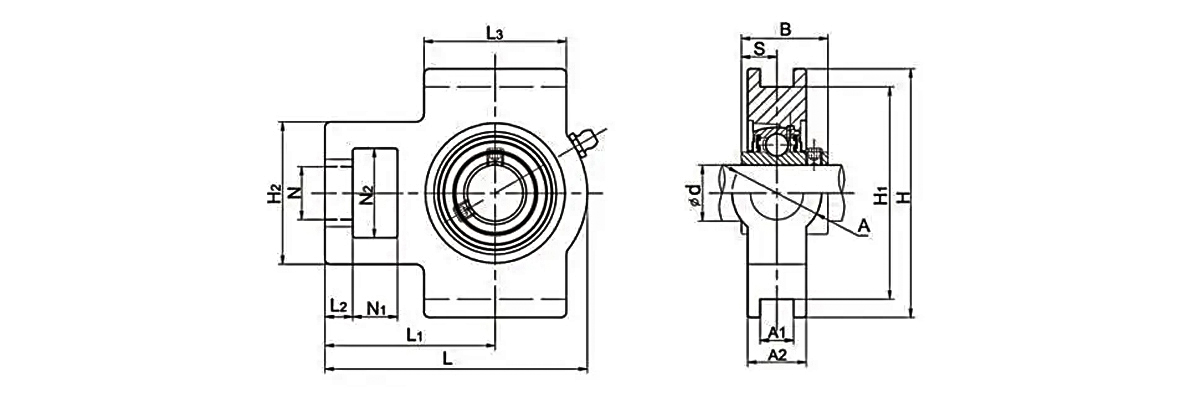

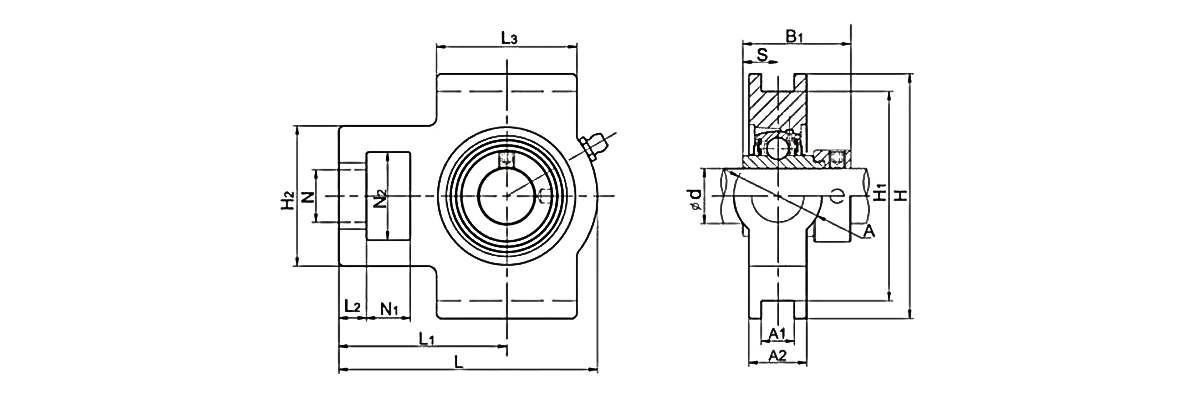

Unit No. Aci Dia Dimensi(mm) Berat badan
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B1 S (kg)
(dalam) (mm)
UET204 20 16 10 51 32 19 51 12 76 89 94 32 21 61 33 12.7 0.93
UET204-12 3/4 16 10 51 32 19 51 12 76 89 94 32 21 61 33 12.7 0.93
UET205 25 16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.96
UET205-14 7/8 16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.96
UET205-15 116/5 16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.96
UET205-16 1/1 16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.96
UET206 30 16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.4
UET206-17 16/1 16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.4
UET206-18 1/8 16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.4
UET206-19 16/3 16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.4
UET206-20 1/4 16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.4
UET207 35 16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.79
UET207-20 1/4 16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.79
UET207-21 16/5 16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.79
UET207-22 3/8 16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.79
UET207-23 16/7 16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.79
UET208 40 19 16 83 49 29 83 16 102 114 144 49 33 88 50.2 19 2.76
UET208-24 1/2 19 16 83 49 29 83 16 102 114 144 49 33 88 50.2 19 2.76
UET208-25 16/9 19 16 83 49 29 83 16 102 114 144 49 33 88 50.2 19 2.76
UET209 45 19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.88
UET209-26 5/8 19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.88
UET209-27 16/11 19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.88
UET209-28 3/4 19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.88
UET210 50 19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.86
UET210-30 7/8 19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.86
UET210-31 1-116/5 19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.86
UET210-32 1/2 19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.86
UET211 55 25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.52
UET211-32 1/2 25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.52
UET211-34 1/8 25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.52
UET211-35 16/3 25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.52
UET212 60 32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.41
UET212-36 1/4 32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.41
UET212-38 3/8 32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.41
UET212-39 16/7 32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.41

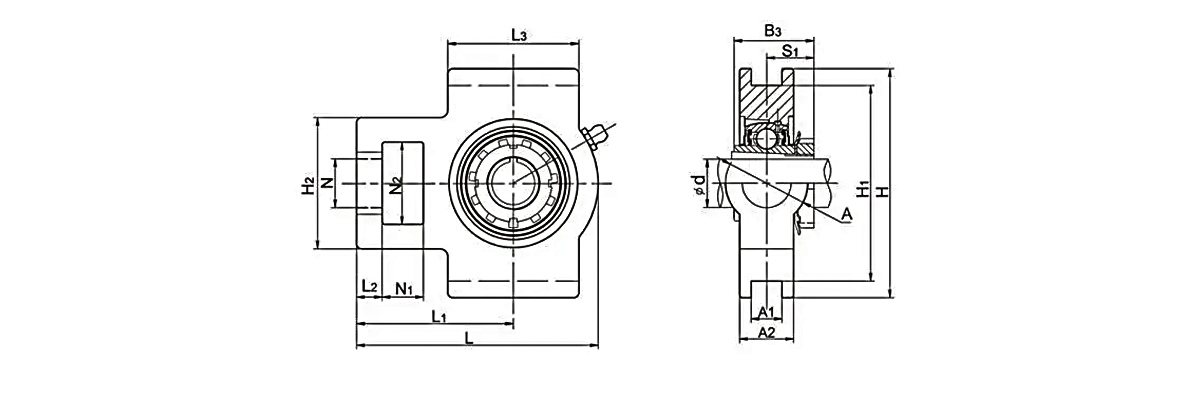

Unit No. Aci Dia Dimensi (mm) Berat badan
(kg)
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B3 S1
(dalam) (mm)
UKT205 H2305 20 16 10 51 32 19 51 12 76 89 97 32 24 62 35 18.5 0.8
UKT205 HE2305 3/4 16 10 51 32 19 51 12 76 89 97 32 24 62 35 18.5 0.8
UKT206 H2306 25 16 10 56 37 22 57 12 89 102 113 37 28 70 38 20.5 1.26
UKT206 HS2306 7/8 16 10 56 37 22 57 12 89 102 113 37 28 70 38 20.5 1.26
UKT206 HE2306 1/1 16 10 56 37 22 57 12 89 102 113 37 28 70 38 20.5 1.26
UKT207 H2307 30 16 13 64 37 22 64 12 89 102 129 37 30 78 43 22.5 1.68
UKT207 HS2307 1/8 16 13 64 37 22 64 12 89 102 129 37 30 78 43 22.5 1.68
UKT208 H2308 35 19 16 83 49 29 83 16 102 114 144 49 33 88 46 24.5 2.28
UKT208 HE2308 1/4 19 16 83 49 29 83 16 102 114 144 49 33 88 46 24.5 2.28
UKT208 HS2308 3/8 19 16 83 49 29 83 16 102 114 144 49 33 88 46 24.5 2.28
UKT209 H2309 40 19 16 83 49 29 83 16 102 117 144 49 35 87 50 26 2.52
UKT209 HA2309 16/7 19 16 83 49 29 83 16 102 117 144 49 35 87 50 26 2.52
UKT209 HE2309 1/2 19 16 83 49 29 83 16 102 117 144 49 35 87 50 26 2.52
UKT209 HS2309 5/8 19 16 83 49 29 83 16 102 117 144 49 35 87 50 26 2.52
UKT210 H2310 45 19 16 83 49 29 86 16 102 117 149 49 37 90 55 27.5 2.75
UKT210 HS2310 5/8 19 16 83 49 29 86 16 102 117 149 49 37 90 55 27.5 2.75
UKT210 HA2310 16/11 19 16 83 49 29 86 16 102 117 149 49 37 90 55 27.5 2.75
UKT210 HE2310 3/4 19 16 83 49 29 86 16 102 117 149 49 37 90 55 27.5 2.75
UKT211 H2311 50 25 19 102 64 35 95 22 130 146 171 64 38 106 59 28.5 4.1
UKT211 HS2311 7/8 25 19 102 64 35 95 22 130 146 171 64 38 106 59 28.5 4.1
UKT211 HA2311 1-116/5 25 19 102 64 35 95 22 130 146 171 64 38 106 59 28.5 4.1
UKT211 HE2311 1/2 25 19 102 64 35 95 22 130 146 171 64 38 106 59 28.5 4.1
UKT212 H2312 55 32 19 102 64 35 102 22 130 146 194 64 42 119 62 31 4.9
UKT212 HS2312 1/8 32 19 102 64 35 102 22 130 146 194 64 42 119 62 31 4.9
UKT213 H2313 60 32 21 111 70 41 121 26 151 167 224 70 44 137 65 32 6.7
UKT213 HA2313 16/3 32 21 111 70 41 121 26 151 167 224 70 44 137 65 32 6.7
UKT213 HE2313 1/4 32 21 111 70 41 121 26 151 167 224 70 44 137 65 32 6.7
UKT213 HS2313 3/8 32 21 111 70 41 121 26 151 167 224 70 44 137 65 32 6.7
UKT215 H2315 65 32 21 111 70 41 121 26 151 167 232 70 48 140 73 35.5 7.4
UKT215 HA2315 16/7 32 21 111 70 41 121 26 151 167 232 70 48 140 73 35.5 7.4
UKT215 HE2315 1/2 32 21 111 70 41 121 26 151 167 232 70 48 140 73 35.5 7.4
UKT216 H2316 70 32 21 111 70 41 121 26 165 184 235 70 51 140 78 39 8.1
UKT216 HA2316 16/11 32 21 111 70 41 121 26 165 184 235 70 51 140 78 39 8.1
UKT216 HE2316 3/4 32 21 111 70 41 121 26 165 184 235 70 51 140 78 39 8.1
UKT217 H2317 75 38 29 124 73 48 157 30 173 198 260 73 54 162 82 40 11
UKT217 HA2317 2-116/5 38 29 124 73 48 157 30 173 198 260 73 54 162 82 40 11
UKT217 HE2317 1/3 38 29 124 73 48 157 30 173 198 260 73 54 162 82 40 11

Unit No. Aci Dia Dimensi (mm) Berat badan (kg)
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B s
(dalam) (mm)
UCTX05 25 16 12 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.4
UCTX05-13 116/3 16 12 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.4
UCTX05-14 7/8 16 12 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.4
UCTX05-15 116/5 16 12 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.4
UCTX05-16 1/1 16 12 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.4
UCTX06 30 16 15 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.8
UCTX06-17 16/1 16 15 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.8
UCTX06-18 1/8 16 15 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.8
UCTX06-19 16/3 16 15 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.8
UCTX06-20 1/4 16 15 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.8
UCTX07 35 19 17 83 49 29 83 16 102 114 144 49 36 88 49.2 19 2.6
UCTX07-21 16/5 19 17 83 49 29 83 16 102 114 144 49 36 88 49.2 19 2.6
UCTX07-22 3/8 19 17 83 49 29 83 16 102 114 144 49 36 88 49.2 19 2.6
UCTX07-23 16/7 19 17 83 49 29 83 16 102 114 144 49 36 88 49.2 19 2.6
UCTX08 40 19 17 83 49 29 83 16 102 117 144 49 36 87 49.2 19 2.6
UCTX08-24 1/2 19 17 83 49 29 83 16 102 117 144 49 36 87 49.2 19 2.6
UCTX08-25 16/9 19 17 83 49 29 83 16 102 117 144 49 36 87 49.2 19 2.6
UCTX09 45 19 18 83 49 29 86 16 102 117 151 49 38 92 51.6 19 2.8
UCTX09-26 5/8 19 18 83 49 29 86 16 102 117 151 49 38 92 51.6 19 2.8
UCTX09-27 16/11 19 18 83 49 29 86 16 102 117 151 49 38 92 51.6 19 2.8
UCTX09-28 3/4 19 18 83 49 29 86 16 102 117 151 49 38 92 51.6 19 2.8
UCTX09-29 1-116/3 19 18 83 49 29 86 16 102 117 151 49 38 92 51.6 19 2.8
UCTX10 50 25 21 102 64 35 95 22 130 146 171 64 42 106 55.6 22.2 4.3
UCTX10-30 7/8 25 21 102 64 35 95 22 130 146 171 64 42 106 55.6 22.2 4.3
UCTX10-31 1-116/5 25 21 102 64 35 95 22 130 146 171 64 42 106 55.6 22.2 4.3
UCTX10-32 1/2 25 21 102 64 35 95 22 130 146 171 64 42 106 55.6 22.2 4.3
UCTX11 55 32 21 102 64 35 102 22 130 146 194 64 44 119 65.1 25.4 5.2
UCTX11-33 16/1 32 21 102 64 35 102 22 130 146 194 64 44 119 65.1 25.4 5.2
UCTX11-34 1/8 32 21 102 64 35 102 22 130 146 194 64 44 119 65.1 25.4 5.2
UCTX11-35 16/3 32 21 102 64 35 102 22 130 146 194 64 44 119 65.1 25.4 5.2
UCTX11-36 1/4 32 21 102 64 35 102 22 130 146 194 64 44 119 65.1 25.4 5.2
UCTX11-37 16/5 32 21 102 64 35 102 22 130 146 194 64 44 119 65.1 25.4 5.2
UCTX12 60 32 23 111 70 41 121 26 151 167 224 70 48 137 65 25.4 7.6
UCTX12-38 3/8 32 23 111 70 41 121 26 151 167 224 70 48 137 65 25.4 7.6
UCTX12-39 16/7 32 23 111 70 41 121 26 151 167 224 70 48 137 65 25.4 7.6
UCTX13 65 32 23 111 70 41 121 26 151 167 224 70 48 137 74.6 30.2 7.6
UCTX13-40 1/2 32 23 111 70 41 121 26 151 167 224 70 48 137 74.6 30.2 7.6
UCTX13-41 16/9 32 23 111 70 41 121 26 151 167 224 70 48 137 74.6 30.2 7.6
UCTX14 70 32 23 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 7.7
UCTX14-42 5/8 32 23 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 7.7
UCTX14-43 16/11 32 23 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 7.7
UCTX14-44 3/4 32 23 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 7.7
UCTX15 75 32 23 111 70 41 121 28 165 184 235 70 48 140 82.6 33.3 7.55
UCTX15-45 2-116/3 32 23 111 70 41 121 28 165 184 235 70 48 140 82.6 33.3 7.55
UCTX15-46 7/8 32 23 111 70 41 121 28 165 184 235 70 48 140 82.6 33.3 7.55
UCTX15-47 2-116/5 32 23 111 70 41 121 28 165 184 235 70 48 140 82.6 33.3 7.55
UCTX15-48 1/3 32 23 111 70 41 121 28 165 184 235 70 48 140 82.6 33.3 7.55
UCTX16 80 38 30 124 73 48 157 28 173 198 260 73 54 162 85.7 34.1 11
UCTX16-49 16/1 38 30 124 73 48 157 28 173 198 260 73 54 162 85.7 34.1 11
UCTX16-50 1/8 38 30 124 73 48 157 28 173 198 260 73 54 162 85.7 34.1 11
UCTX16-51 16/3 38 30 124 73 48 157 28 173 198 260 73 54 162 85.7 34.1 11
UCTX16-52 1/4 38 30 124 73 48 157 28 173 198 260 73 54 162 85.7 34.1 11
UCTX17 85 38 30 124 73 48 157 28 173 198 260 73 54 162 96 39.7 12
UCTX17-53 16/5 38 30 124 73 48 157 28 173 198 260 73 54 162 96 39.7 12
UCTX17-55 16/7 38 30 124 73 48 157 28 173 198 260 73 54 162 96 39.7 12

Unit No Aci Dia Dimensi(mm) Berat badan (kg)
d
(mm) N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B S
UCT305 1/25 16 12 62 36 26 65 12 80 90 122 36 26 76 38 15 1.41
UCT306 30/1 18 14 70 41 28 74 16 90 100 137 41 28 85 43 17 1.85
UCT307 2/4 20 15 75 45 30 80 16 100 111 150 45 32 94 48 19 2.45
UCT308 2/9 22 17 83 50 32 89 18 112 124 162 50 34 100 52 19 3.09
UCT309 14/2 24 18 90 55 34 97 18 125 138 178 55 38 110 57 22 4.08
UCT310 19/2 27 20 98 61 37 106 20 140 151 191 61 40 117 61 22 5.25
UCT311 2/24 29 21 105 66 39 115 22 150 163 207 66 44 127 66 25 6.41
UCT312 2/29 31 23 115 71 41 123 22 160 179 220 72 46 135 71 26 7.61
UCT313 3/5 32 25 116 70 43 134 26 170 190 238 80 50 146 75 30 9.22
UCT314 3/10 36 25 130 85 46 140 26 180 202 252 90 52 155 78 33 11.4
UCT315 15/3 36 25 134 85 46 150 26 192 216 262 90 55 160 82 32 12.9
UCT316 3/20 42 28 150 98 53 160 30 204 230 282 102 60 174 86 34 15.65
UCT317 25/3 42 30 152 98 53 170 32 214 240 298 102 64 183 96 40 19.34
UCT318 3/30 46 30 160 106 57 175 32 228 255 312 110 66 192 96 40 21.25
UCT319 4/4 46 31 165 106 57 180 35 240 270 322 110 72 197 103 41 24.4
UCT320 4/9 48 32 175 115 59 200 35 260 290 345 120 75 210 108 42 30.6
UCT321 14/4 48 32 175 115 59 200 35 260 290 345 120 75 210 112 44 30.2
UCT322 19/4 52 38 185 125 65 215 38 285 320 385 130 80 235 117 46 38.8
UCT324 29/4 60 42 210 140 70 230 45 320 355 432 140 90 267 126 51 54.6
UCT326 5/9 65 45 220 150 75 240 50 350 385 465 150 100 285 135 54 68.4
UCT328 19/5 70 50 230 160 80 255 50 380 415 515 155 100 315 145 59 83.2

Unit No. Aci Dia Dimensi (mm) Berat badan
(kg)
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B S
(dalam) (mm)
UCST201 12 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST201-8 1/2 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST202 15 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST202-10 5/8 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST203 17 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST203-11 16/11 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST204 20 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST204-12 3/4 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST205 25 16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST205-14 7/8 16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST205-15 116/5 16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST205-16 1/1 16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST206 30 16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-17 16/1 16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-18 1/8 16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-19 16/3 16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-20 1/4 16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST207 35 16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-20 1/4 16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-21 16/5 16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-22 3/8 16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-23 16/7 16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST208 40 19 16 83 49 29 83 17.5 102 114 144 49 33 88 49.2 19 2.28
UCST208-24 1/2 19 16 83 49 29 83 17.5 102 114 144 49 33 88 49.2 19 2.28
UCST208-25 16/9 19 16 83 49 29 83 17.5 102 114 144 49 33 88 49.2 19 2.28
UCST209 45 19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST209-26 5/8 19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST209-27 16/11 19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST209-28 3/4 19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST210 50 19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST210-30 7/8 19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST210-31 1-116/5 19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST210-32 1/2 19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST211 55 25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST211-32 1/2 25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST211-34 1/8 25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST211-35 16/3 25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST212 60 32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9
UCST212-36 1/4 32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9
UCST212-38 3/8 32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9
UCST212-39 16/7 32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9

Produk yang Disyorkan

Kejuruteraan Masa Depan Pergerakan
Mengenai UKL
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Ambil Unit Galas suppliers and OEM/ODM Ambil Unit Galas company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd Lagi Mengenai Kami Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    tahun

    Pengalaman Industri

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Kepelbagaian model

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Bilangan Pekerja

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Nilai eksport tahunan

Ukl Bearing Manufacturing Co.,Ltd
Sijil Kepujian
Berita
Galas Dipasang Industry knowledge
