3 Bolt Flange Mounted Bearing

Galas lekap bebibir 3 bolt ialah gabungan perumah galas bebibir 3 bolt dan galas bebola gelang dalam yang lebih luas.
Perumah galas bebibir 3 bolt biasa ialah FB200 (tugas standard) dan FCT200 (tugas ringan oleh besi mulur).
Penutup hujung dengan keluli tertekan mampu melindungi daripada pencemaran luaran dan habuk.
Keupayaan menjajarkan sendiri galas bebola boleh mengimbangi sedikit kesilapan statik aci. Sisipan galas dikunci pada aci dengan menggunakan skru set dan kolar pengunci sipi dsb.
Pelincir yang diisi di dalam sisipan galas bebola sfera boleh menjadi gris standard, gris suhu rendah/tinggi dan gris gred makanan.

Hubungi Kami

PRAV：Unit Galas Kartrij Bebibir SETERUSNYA：Unit Galas Penyangkut

Spesifikasi
Hubungi Kami

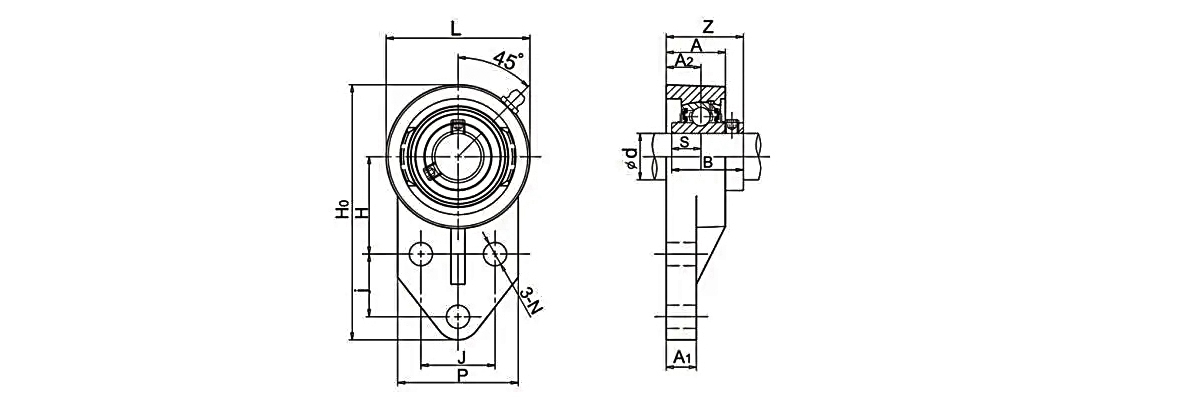

Unit No.	Aci Dia		Dimensi (mm)													Saiz Bolt (kilang)	Berat (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
	(dalam)	(mm)	Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
UCFB201		12	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB201-8	1/2		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB202		15	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB202-9	16/9		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB202-10	5/8		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB203		17	110	42	32	27	15	13	25.5	10	60	52	31	12.7	33.3	M8	0.57
UCFB203-11	16/11		110	42	32	27	15	13	25.5	10	60	52	31	12.7	33.3	M8	0.57
UCFB204		20	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB204-12	3/4		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB205		25	116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-14	7/8		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-15	116/5		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-16	1/1		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB206		30	130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-17	16/1		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-18	1/8		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-19	16/3		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-20	1/4		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB207		35	144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-20	1/4		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-21	16/5		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-22	3/8		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-23	16/7		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB208		40	164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB208-24	1/2		164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB208-25	16/9		164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB209		45	174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-26	5/8		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-27	16/11		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-28	3/4		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB210		50	184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-30	7/8		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-31	1-116/5		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-32	1/2		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3

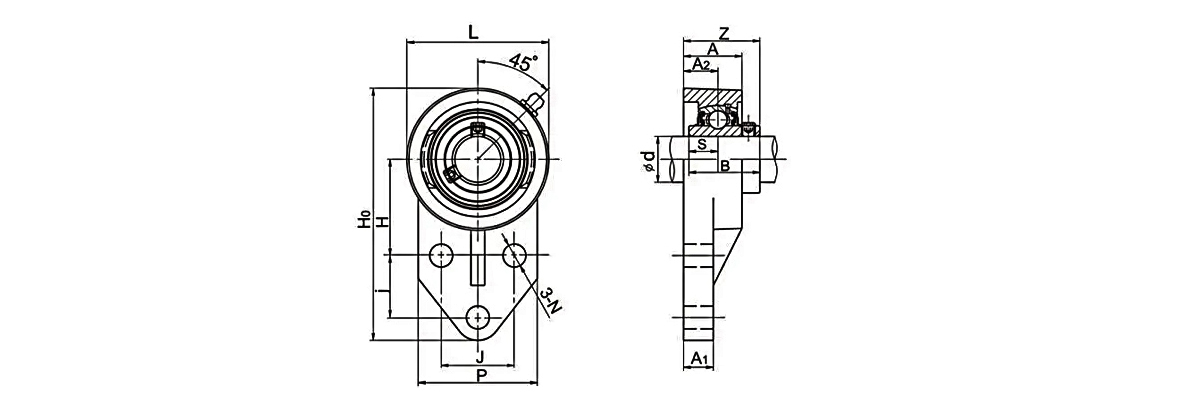

Unit No.	Aci Dia		Dimensi (mm)													Saiz Bolt (kilang)	Berat (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
	(dalam)	(mm)	Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
UCFB201A		12	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB201-8A	1/2		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB202A		15	107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB202-9A	16/9		107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB202-10A	5/8		107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB203A		17	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.57
UCFB203-11A	16/11		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.57
UCFB204A		20	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB204-12A	3/4		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB205A		25	120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-14A	7/8		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-15A	116/5		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-16A	1/1		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB206A		30	136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-17A	16/1		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-18A	1/8		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-19A	16/3		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-20A	1/4		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB207A		35	155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-20A	1/4		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-21A	16/5		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-22A	3/8		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-23A	16/7		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB208A		40	164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8
UCFB208-24A	1/2		164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8
UCFB208-25A	16/9		164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8

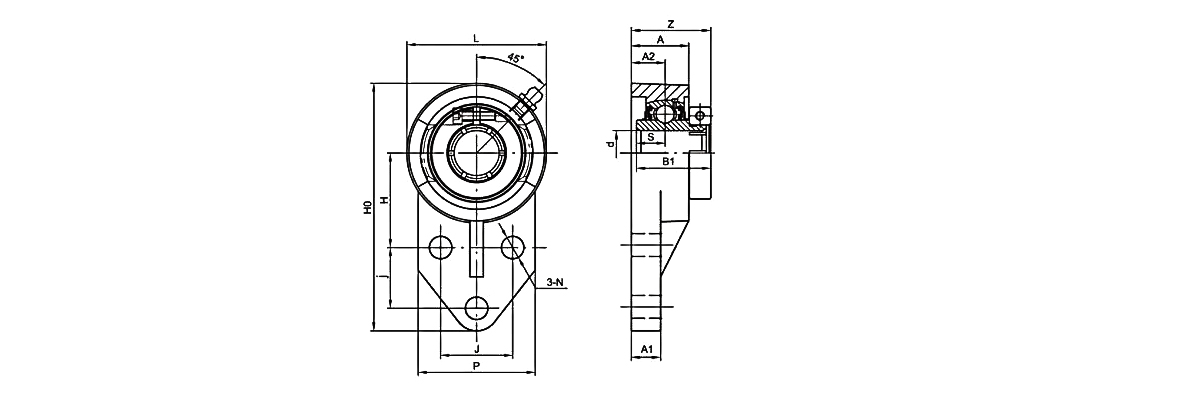

Unit No.	Aci Dia		Dimensi (mm)													Saiz Bolt (mm)	Berat badan (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B1	S	Z
	(dalam)	(mm)
UEFB204		20	110	42	32	27	15	13	25.5	10	62	52	33	12.7	35.3	M8	0.692
UEFB204-12	3/4
UEFB205		25	116	45	34	27	16	13	27	10	68	56	35.4	14.3	37.1	M8	0.87
UEFB205-14	7/8
UEFB205-15	116/5
UEFB205-16	1/1
UEFB206		30	130	50	40	29	18	13	31	10	78	65	39.8	15.9	41.9	M8	1.13
UEFB206-17	16/1
UEFB206-18	1/8
UEFB206-19	16/3
UEFB206-20	1/4
UEFB207		35	144	55	46	32	19	15	34	10	90	70	43.9	17.5	45.4	M8	1.5
UEFB207-20	1/4
UEFB207-21	16/5
UEFB207-22	3/8
UEFB207-23	16/7
UEFB208		40	164	60	50	41	21	16	36	12	100	78	50.2	19	52.2	M10	2.07
UEFB208-24	1/2
UEFB208-25	16/9
UEFB209		45	174	65	54	43	22	18	38	12	106	80	50.2	19	53.2	M10	2.43
UEFB209-26	5/8
UEFB209-27	16/11
UEFB209-28	3/4
UEFB210		50	184	68	58	46	22	18	40	12	112	86	52.6	19	55.6	M10	2.8
UEFB210-30	7/8
UEFB210-31	1-116/5
UEFB210-32	1/2

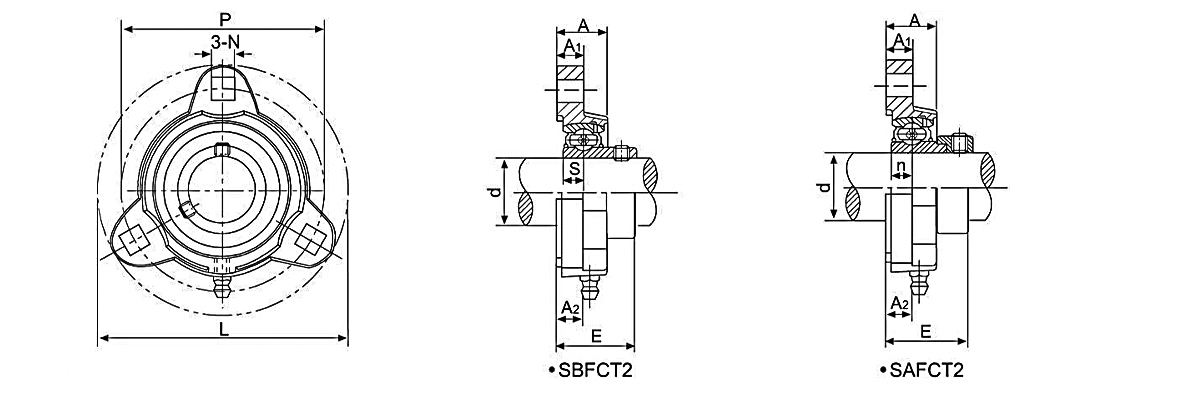

Unit No.	Aci Dia		Dimensi (mm)								Saiz Bolt		galas TIDAK.	Perumahan TIDAK.	Berat (kg)
	d		L	P	A1	A	A2	N	s	E	Saiz Bolt
	(dalam)	(mm)	L	P	A1	A	A2	N	s	E	(mm)	(dalam)
SBFCT201		12	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB201	FCT203	0.21
SBFCT201-8	1/2		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB201-8	FCT203	0.21
SBFCT202		15	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB202	FCT203	0.21
SBFCT202-10	5/8		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB202-10	FCT203	0.21
SBFCT203		17	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB203	FCT203	0.21
SBFCT203-11	16/11		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB203-11	FCT203	0.21
SBFCT204-12	3/4		90.5	71.4	11.1	19.8	11.1	8.7	7	29.1	M8	16/5	SB204-12	FCT204	0.32
SBFCT204		20	90.5	71.4	11.1	19.8	11.1	8.7	7	29.1	M8	16/5	SB204	FCT204	0.32
SBFCT205-14	7/8		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205-14	FCT205	0.36
SBFCT205-15	116/5		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205-15	FCT205	0.36
SBFCT205		25	95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205	FCT205	0.36
SBFCT205-16	1/1		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205-16	FCT205	0.36
SBFCT206-18	1/8		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206-18	FCT206	0.57
SBFCT206		30	113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206	FCT206	0.57
SBFCT206-19	16/3		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB2206-19	FCT206	0.57
SBFCT206-20	1/4		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206-20	FCT206	0.57
SBFCT207-20	1/4		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-20	FCT207	0.71
SBFCT207-21	16/5		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-21	FCT207	0.71
SBFCT207-22	3/8		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-22	FCT207	0.71
SBFCT207		35	122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB2207	FCT207	0.71
SBFCT207-23	16/7		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-23	FCT207	0.71

Unit No.	Aci Dia		Dimensi (mm)								Saiz Bolt		galas TIDAK.	Perumahan TIDAK.	Berat (kg)
	d		L	P	A1	A	A2	s	n	E	Saiz Bolt
	(dalam)	(mm)	L	P	A1	A	A2	s	n	E	(mm)	(dalam)
SAFCT201		12	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA201	FCT203	0.26
SAFCT201-8	1/2		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA201-8	FCT203	0.26
SAFCT202		15	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA202	FCT203	0.26
SAFCT202-10	5/8		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA202-10	FCT203	0.26
SAFCT203		17	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA203	FCT203	0.26
SAFCT203-11	16/11		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA203-11	FCT203	0.26
SAFCT204-12	3/4		90.5	71.4	11.1	19.8	11.1	8.7	7.5	34.5	M8	16/5	SA204-12	FCT204	0.34
SAFCT204		20	90.5	71.4	11.1	19.8	11.1	8.7	7.5	34.5	M8	16/5	SA204	FCT204	0.34
SAFCT205-14	7/8		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205-14	FCT205	0.39
SAFCT205-15	116/5		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205-15	FCT205	0.39
SAFCT205		25	95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205	FCT205	0.39
SAFCT205-16	1/1		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205-16	FCT205	0.39
SAFCT206-18	1/8		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-18	FCT206	0.61
SAFCT206		30	113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206	FCT206	0.61
SAFCT206-19	16/3		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-19	FCT206	0.61
SAFCT206-20	1/4		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-20	FCT206	0.61
SAFCT207-20	1/4		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-20	FCT207	0.82
SAFCT207-21	16/5		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-21	FCT207	0.82
SAFCT207-22	3/8		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-22	FCT207	0.82
SAFCT207		35	122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207	FCT207	0.82
SAFCT207-23	16/7		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-23	FCT207	0.82
